Home >> Nissan-Datsun >> 1994 >> 240SX Convertible L4-2.4L (KA24DE) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Test Procedures >> Diagnostic Test Procedure 4

Diagnostic Test Procedure 4

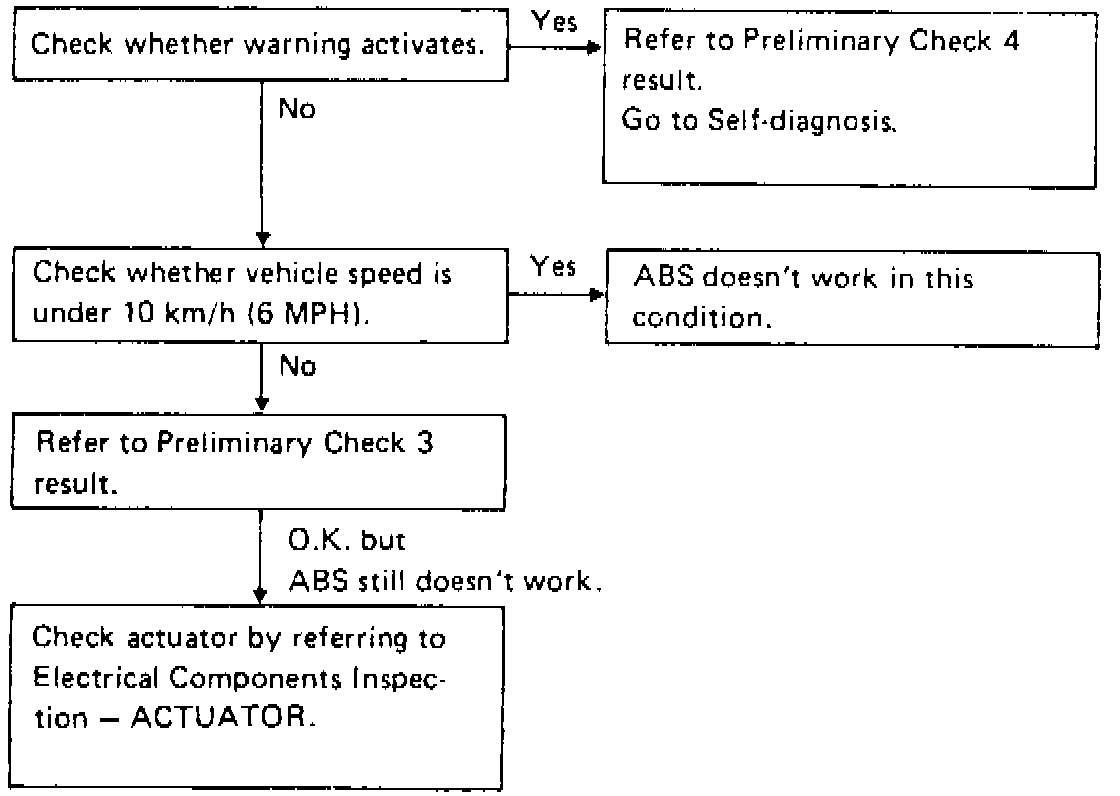

Fig. 77 Test 4: ABS Doesn't Work:
