240SX Convertible L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnostic Test Procedures
>>
Diagnostic Test Procedure 5
Diagnostic Test Procedure 5

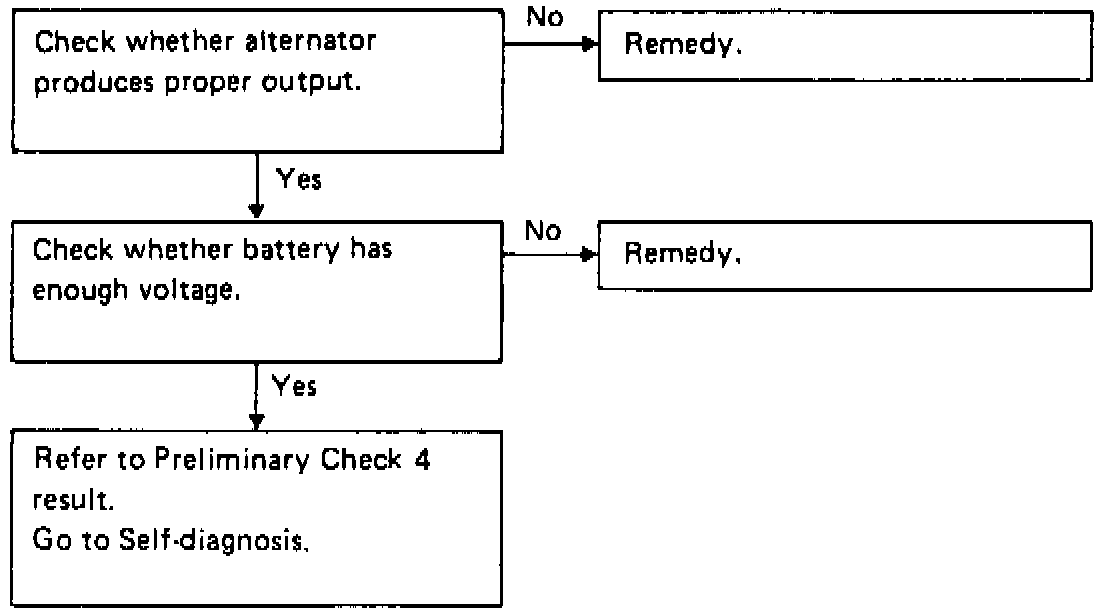

Fig. 78 Test 5: ABS Works But Warning Activates:
