DTC 13

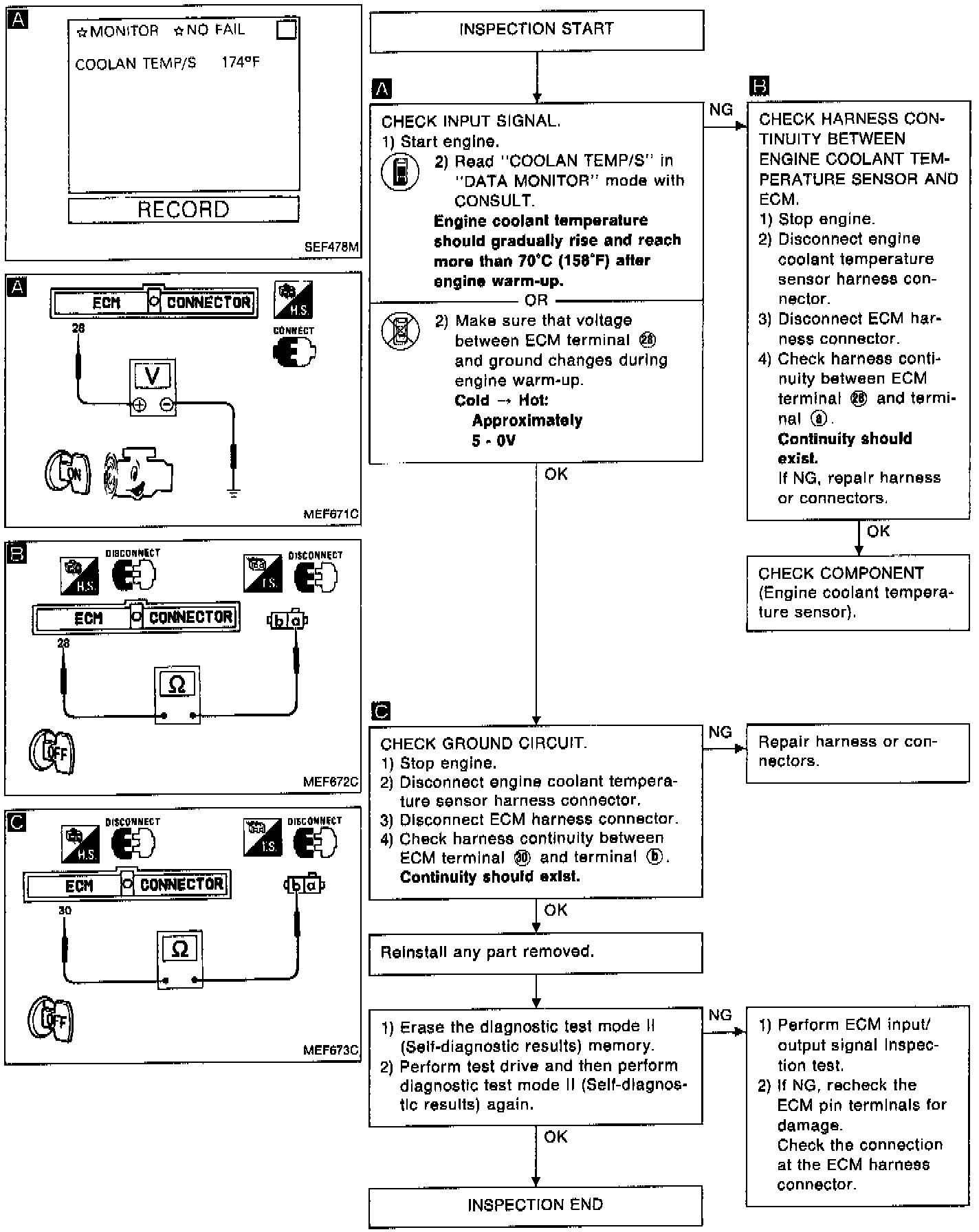

DTC 13 Engine Temperature Sensor Diagnostic Chart:





DIAGNOSTIC CHART

Engine Coolant Temperature Sensor Circuit:





CIRCUIT DIAGRAM

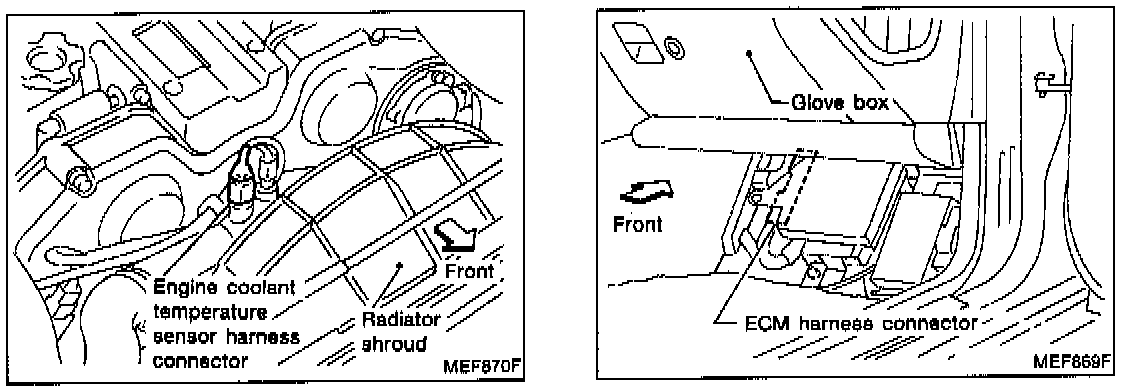

Harness Layout:





HARNESS LAYOUT
