DTC 51

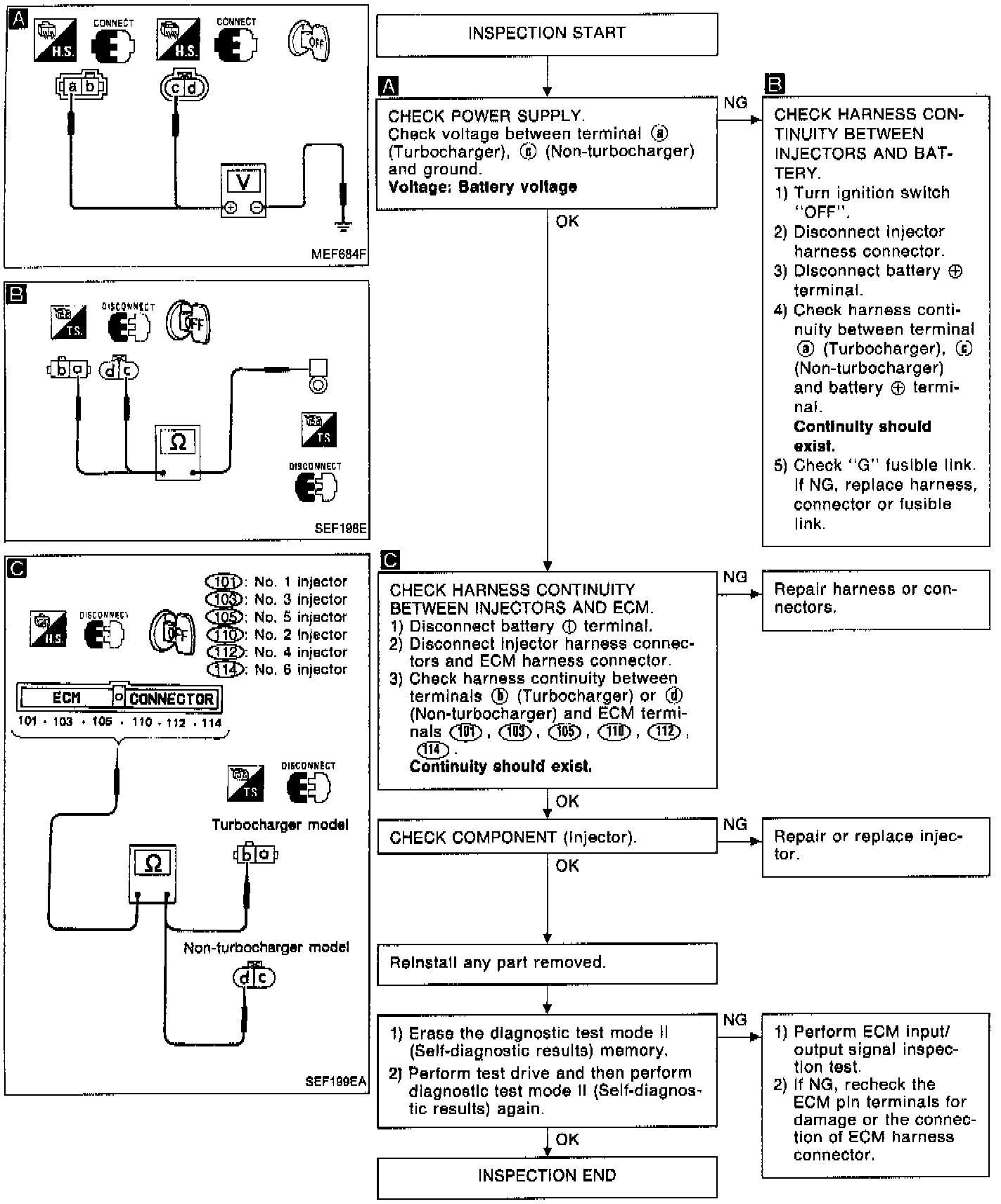

DTC 51 Fuel Injector Diagnostic Chart:





DIAGNOSTIC CHART

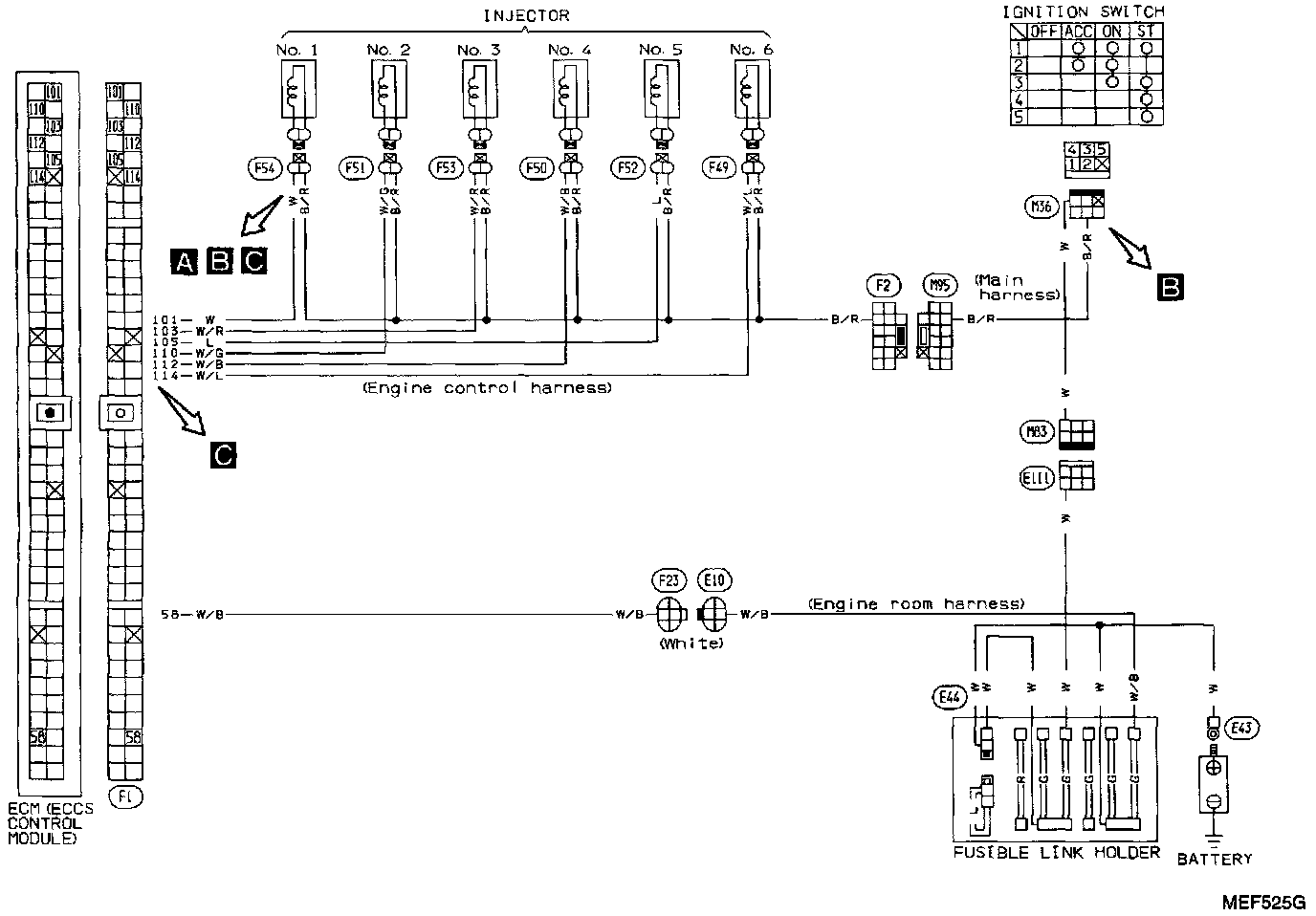

CIRCUIT DIAGRAM

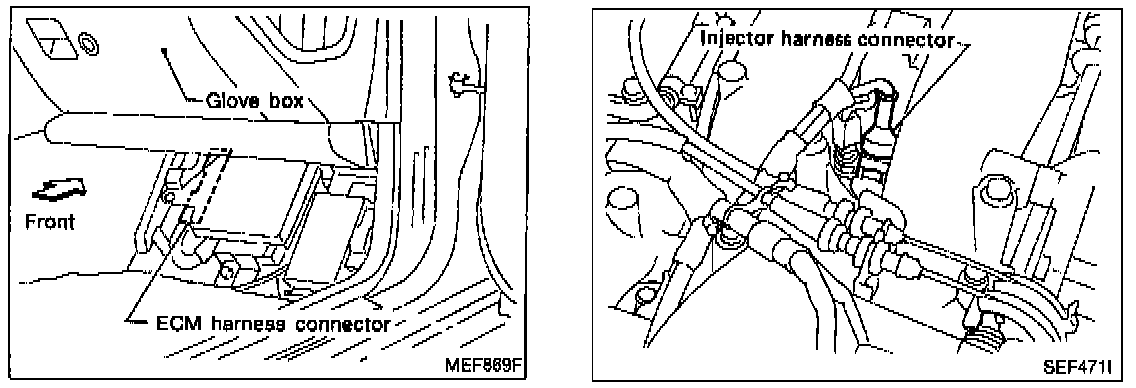

Harness Layout:





HARNESS LAYOUT
