Hydraulic Control Assembly - Antilock Brakes: Testing and Inspection

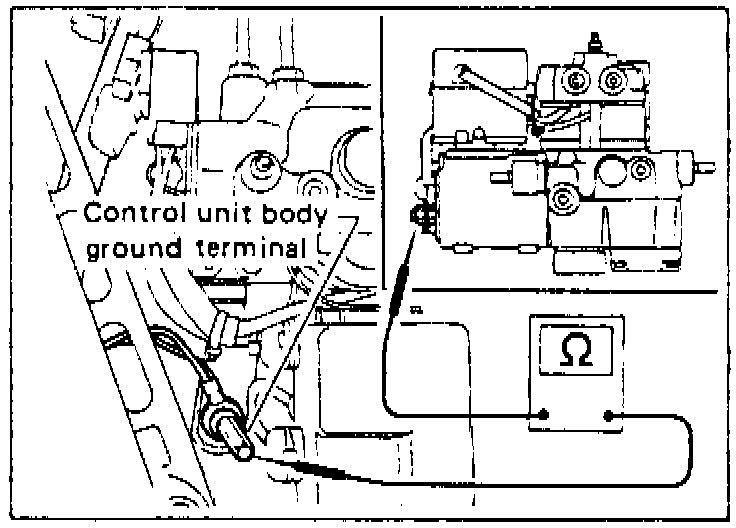

Fig. 213 Actuator Motor Ground Circuit Check:

ACTUATOR MOTOR GROUND
When performing actuator motor ground circuit check, refer to Fig. 213. Resistance between both terminals should be zero ohms.
