Diesel Data
: Automotive Repair
Home
>>
Nissan-Datsun
>>
1994
>>
300ZX Convertible V6-2960cc DOHC (VG30DE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnostic Test Procedures
>>
Diagnostic Test Procedure 3
Diagnostic Test Procedure 3

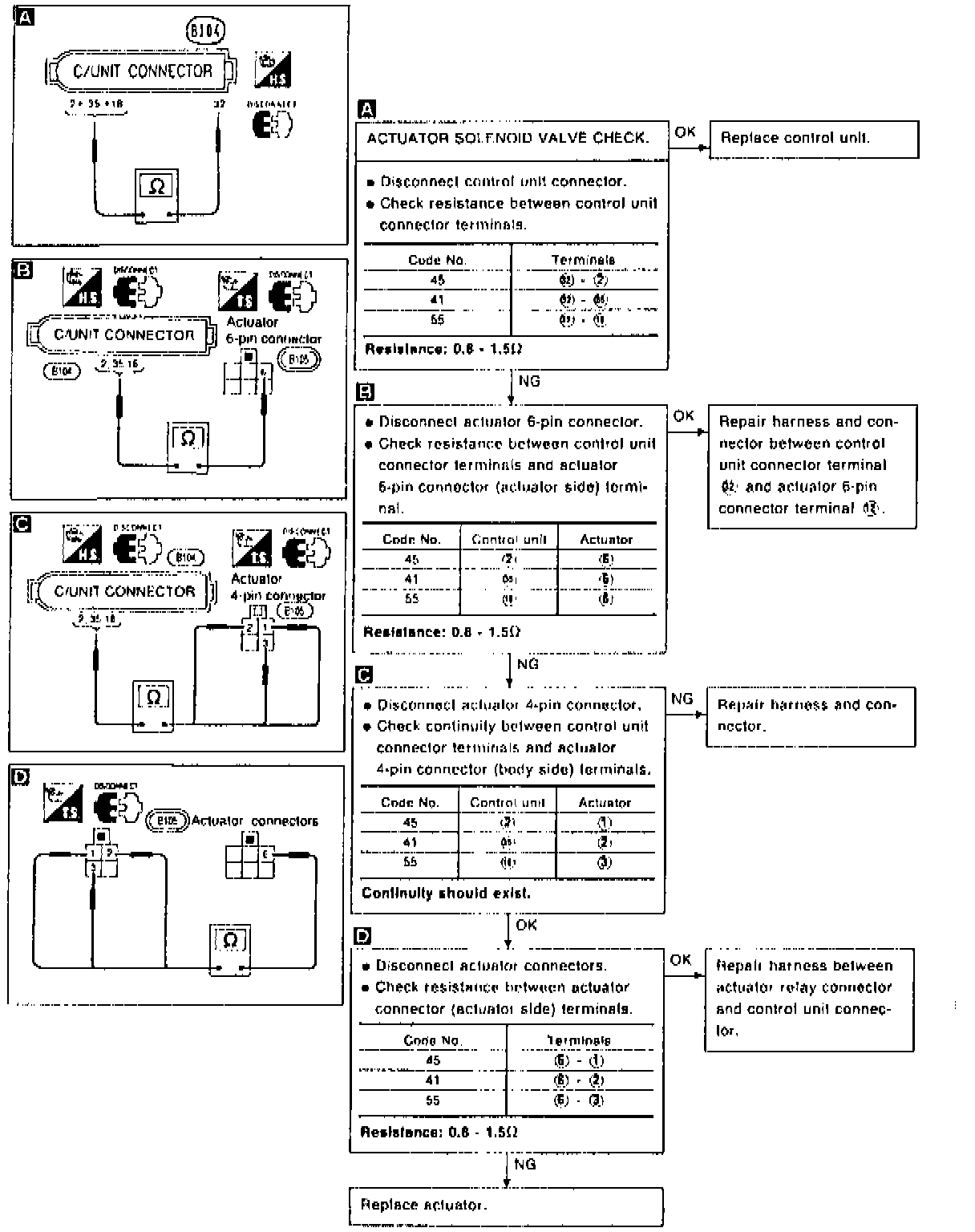

Fig. 120 Test 3: Actuator Solenoid Valve:
