Diagnostic Test Procedure 6

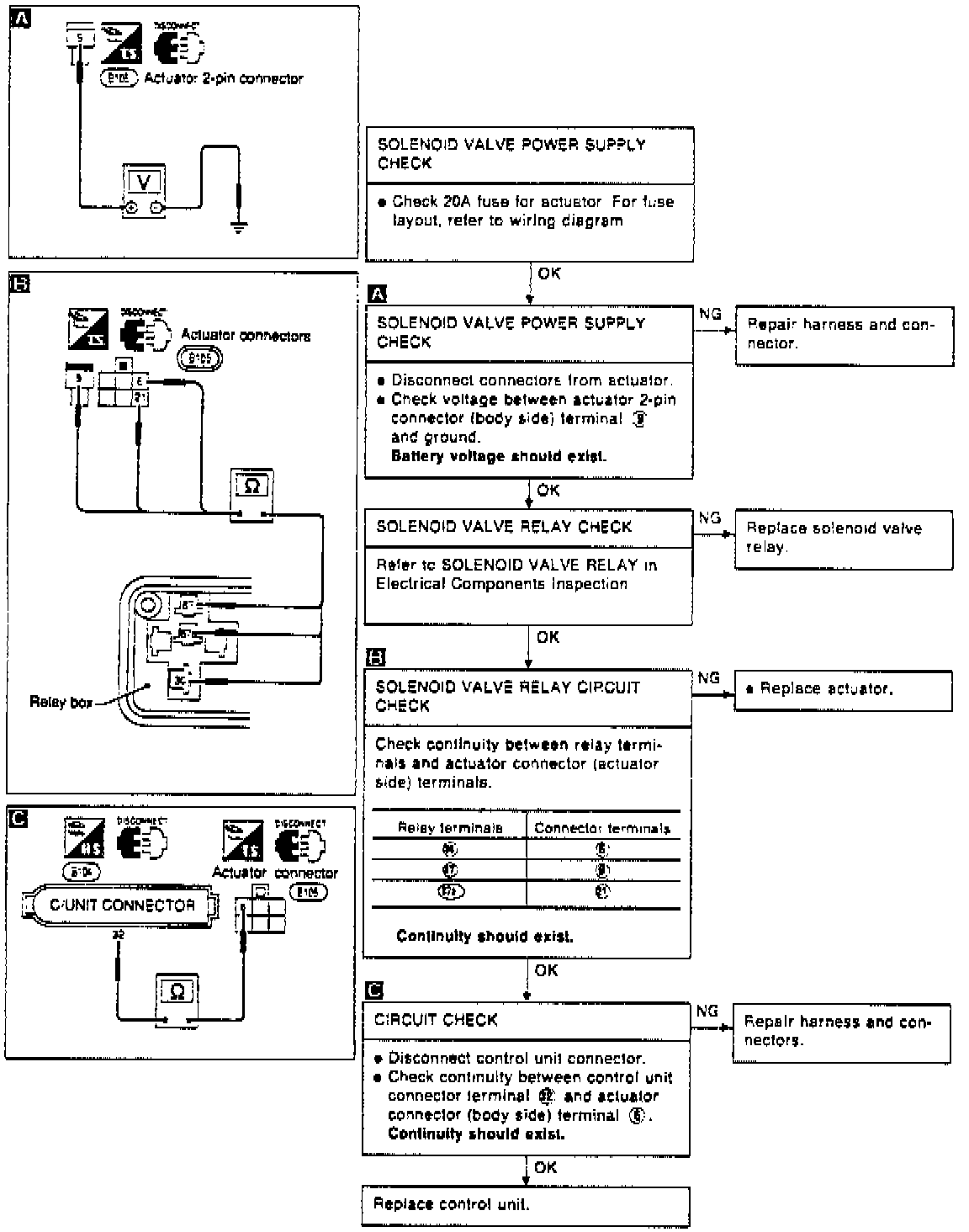

Fig. 123 Test 6: Solenoid Valve Relay (Part 1 Of 2):




PART 1 OF 2

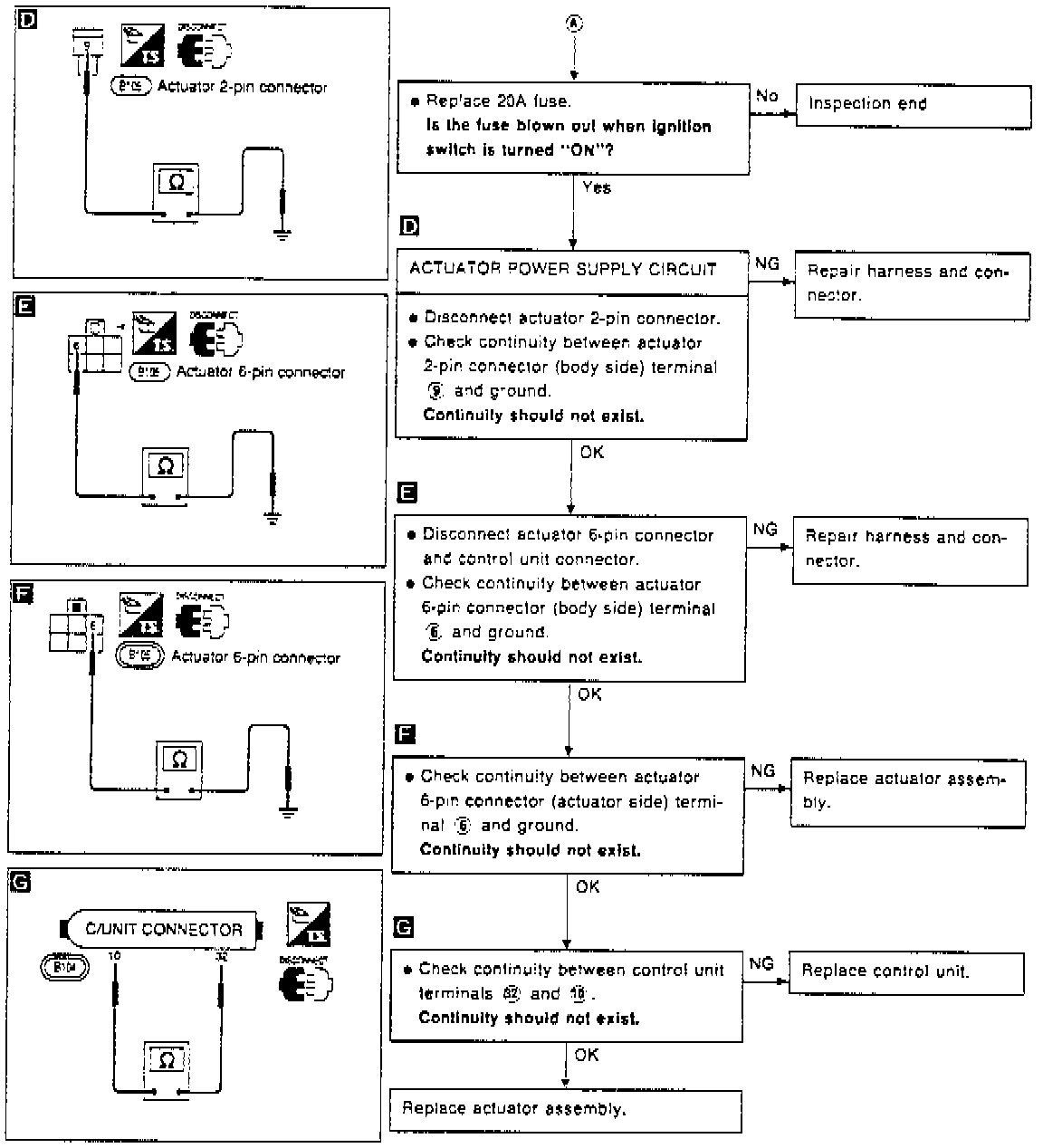

Fig. 123 Test 6: Solenoid Valve Relay (Part 2 Of 2):




PART 2 OF 2
