Home >> Nissan-Datsun >> 1994 >> 300ZX Convertible V6-2960cc DOHC (VG30DE) >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Actuator Check

Actuator Check

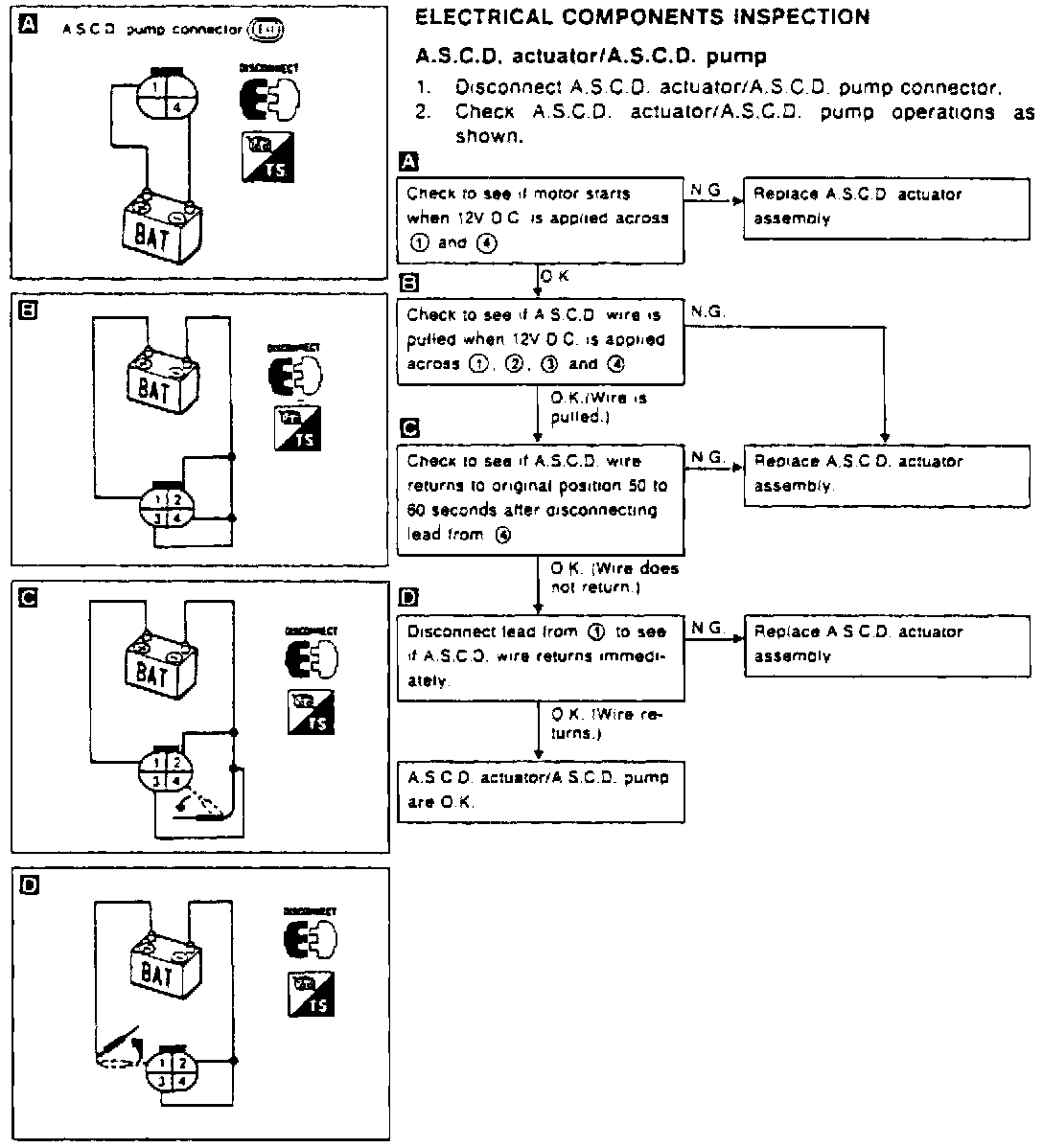

Fig. 78 Actuator Check:
