300ZX Convertible V6-2960cc DOHC (VG30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Transmission Control System
Transmission Control System

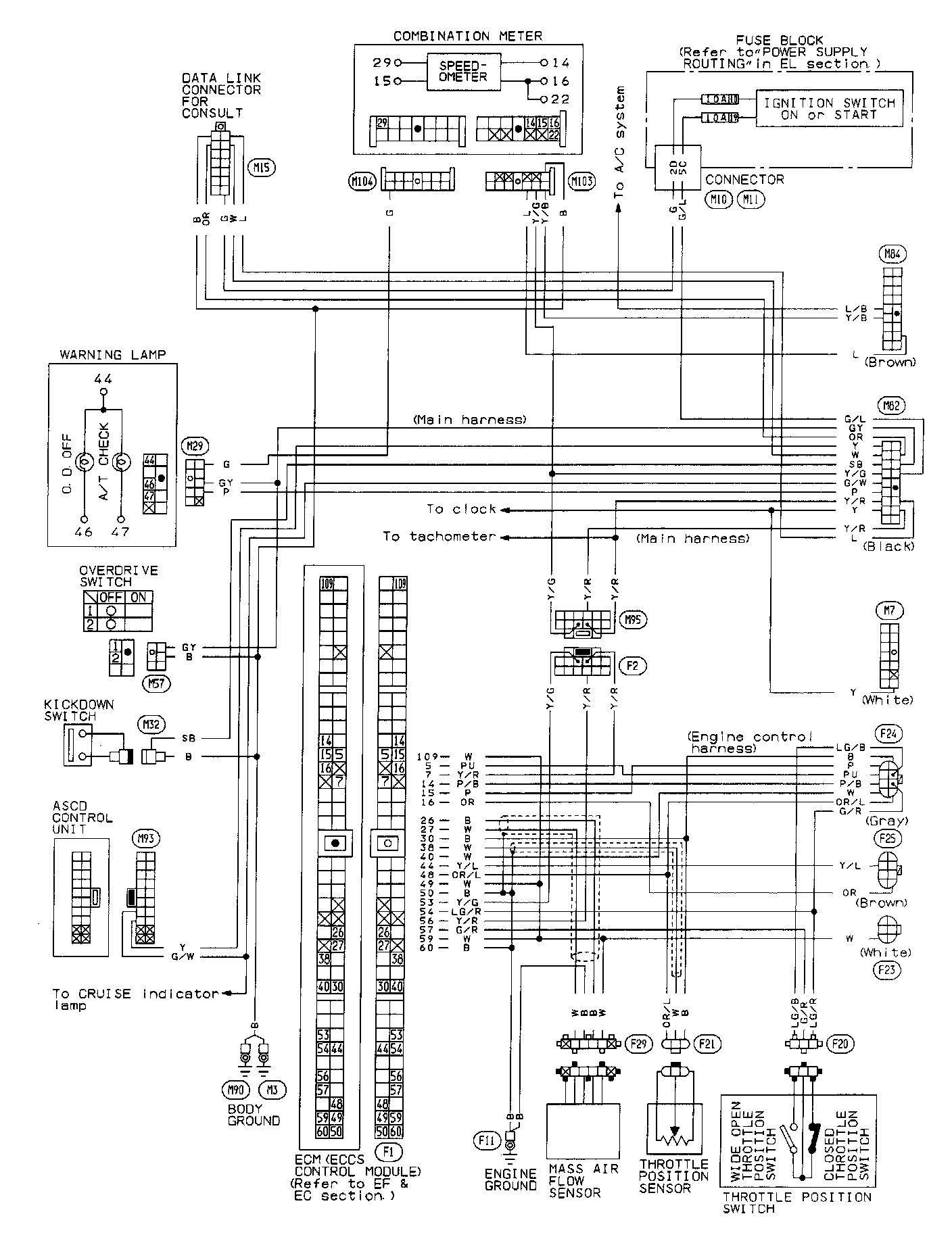

1 Of 2:

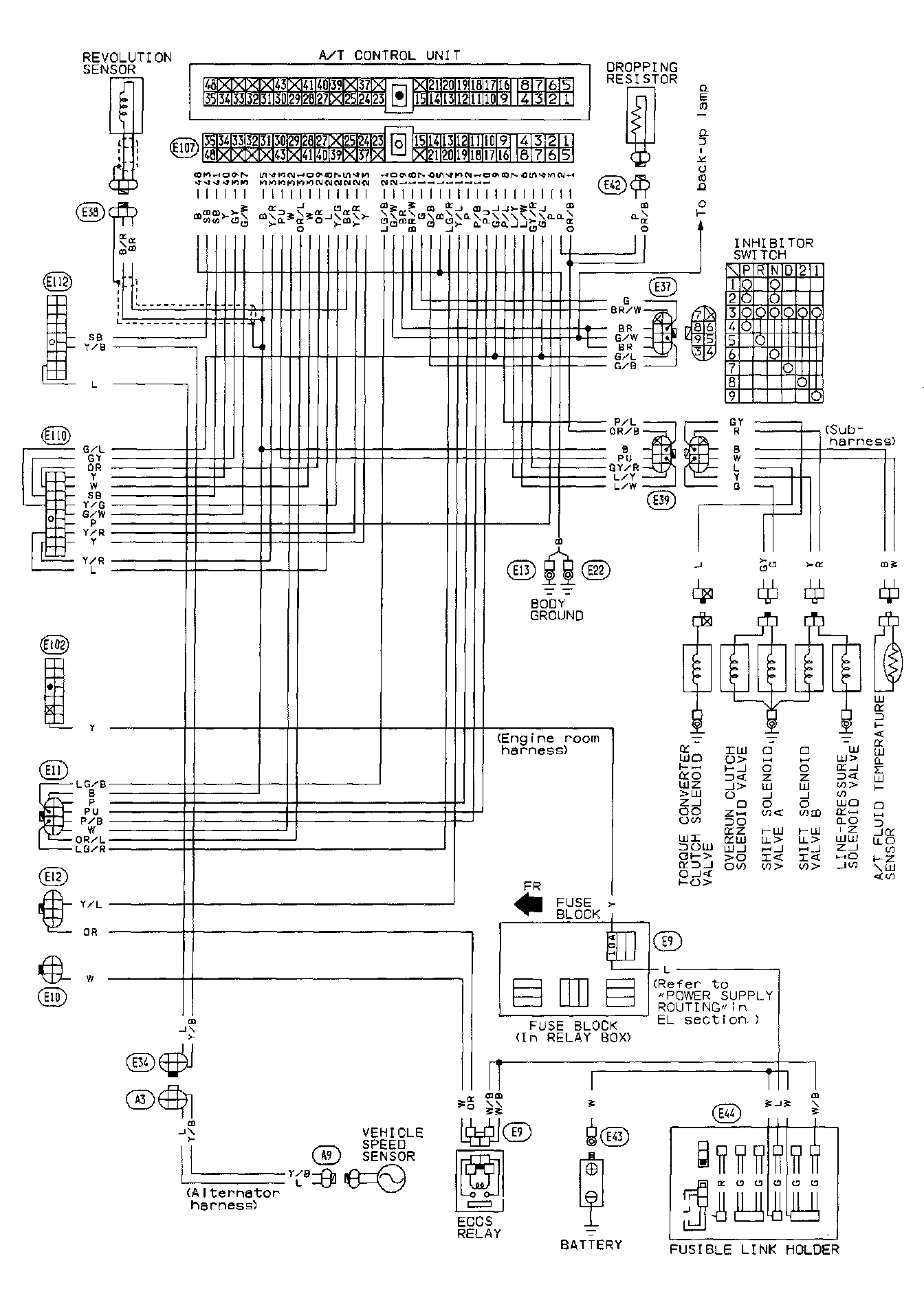

2 Of 2:
