300ZX Convertible V6-2960cc DOHC (VG30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
Transmission Position Sensor/Switch, A/T
Transmission Position Sensor/Switch, A/T

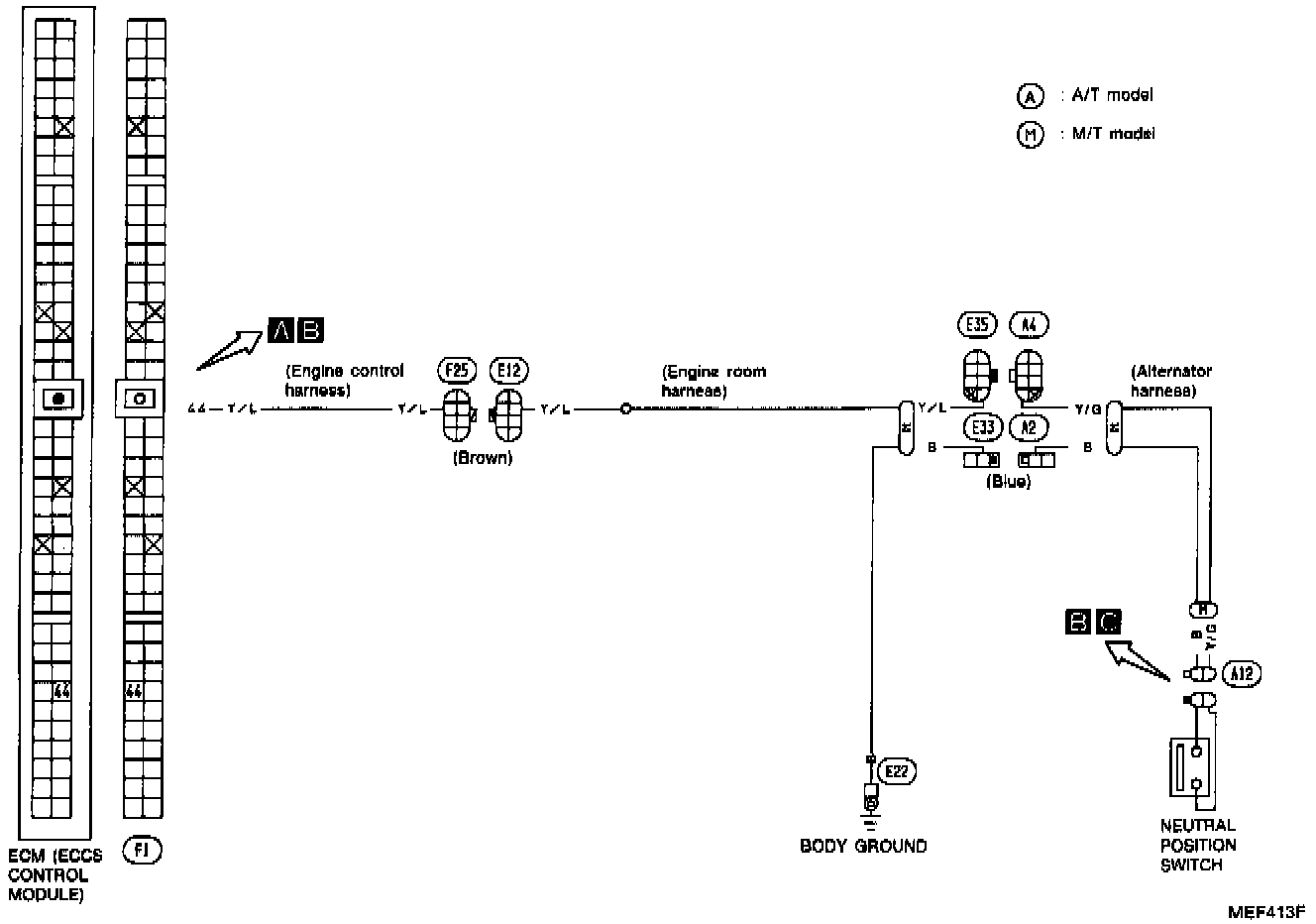

Neutral Position Switch Circuit:
