Home >> Nissan-Datsun >> 1994 >> 300ZX Convertible V6-2960cc DOHC (VG30DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry

Keyless Entry

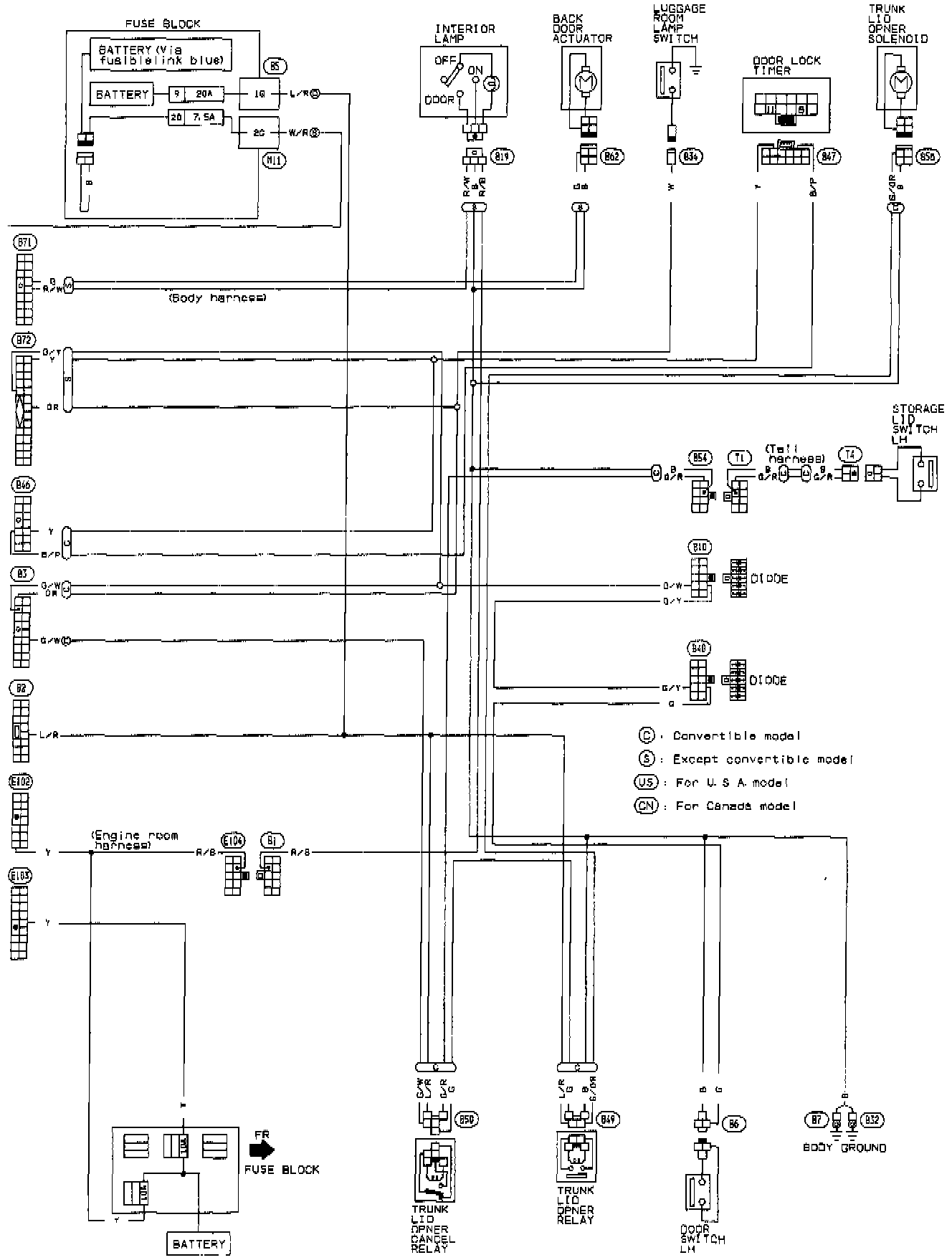

Multi-Remote Control System:

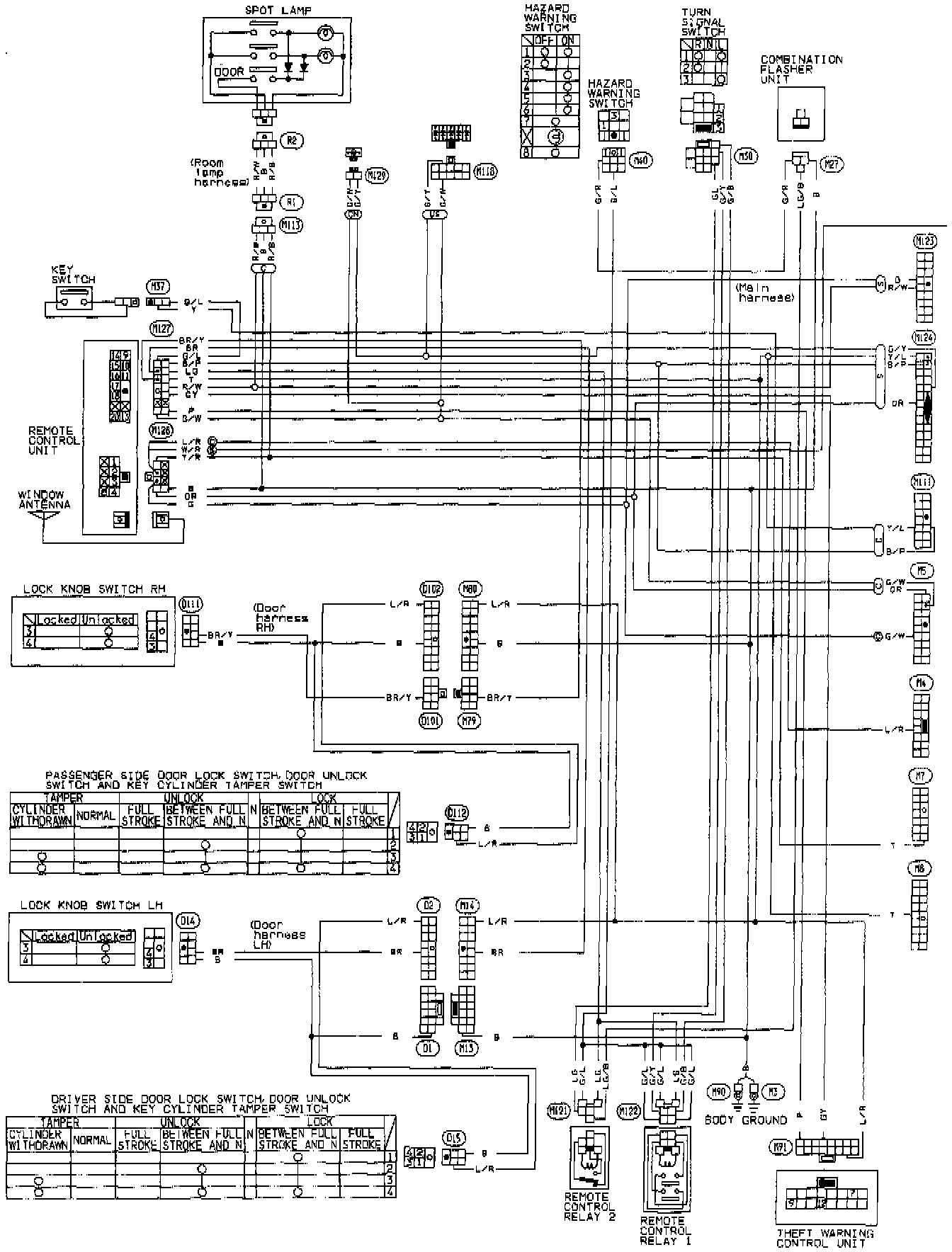

Multi-Remote Control System:
