Diesel Data
: Automotive Repair
Home
>>
Nissan-Datsun
>>
1994
>>
300ZX Convertible V6-2960cc DOHC (VG30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>

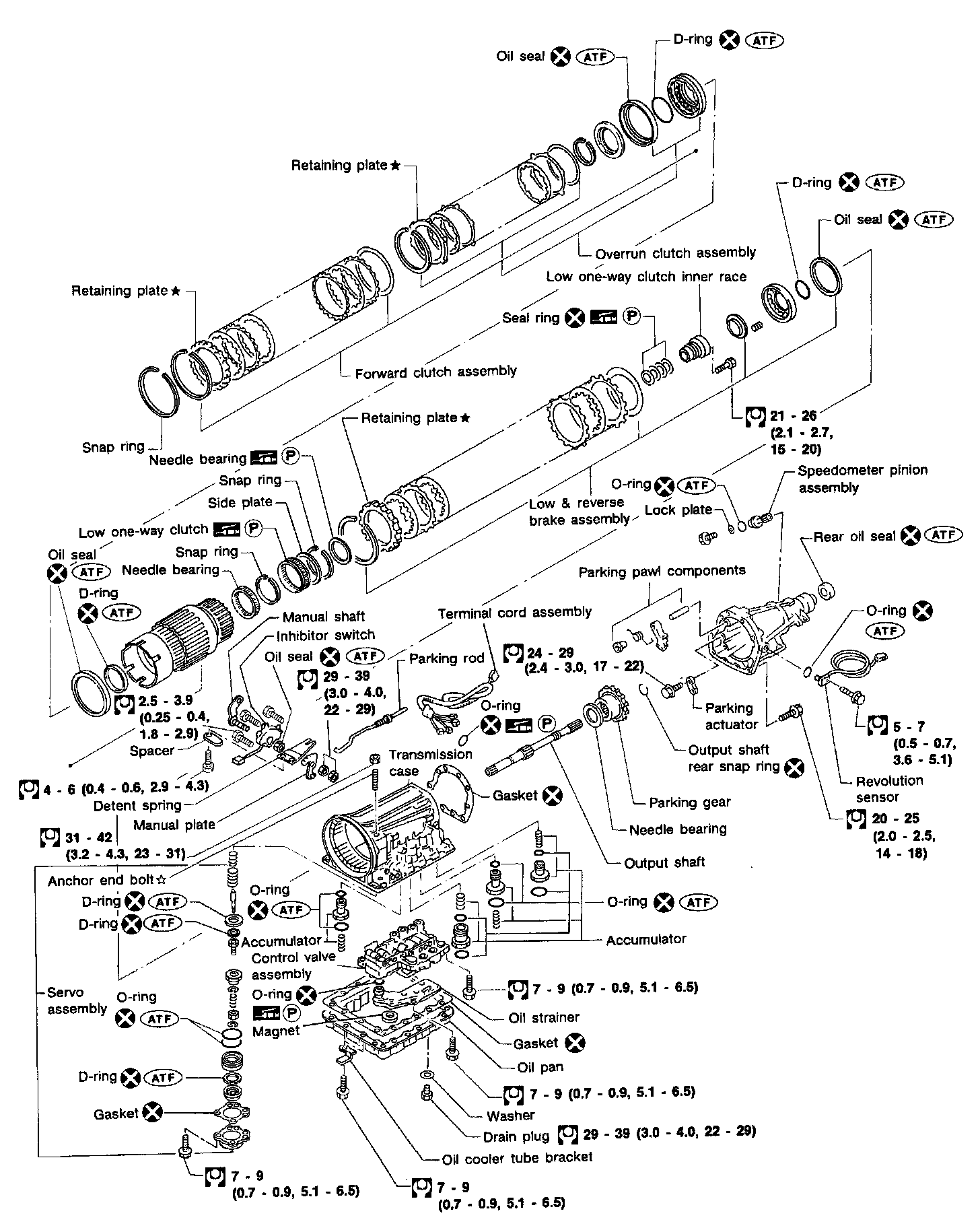

Exploded Views
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle
1 Of 2:
2 Of 2:
