Condenser Fan: Description and Operation

Radiator Fan Control System:

PURPOSE

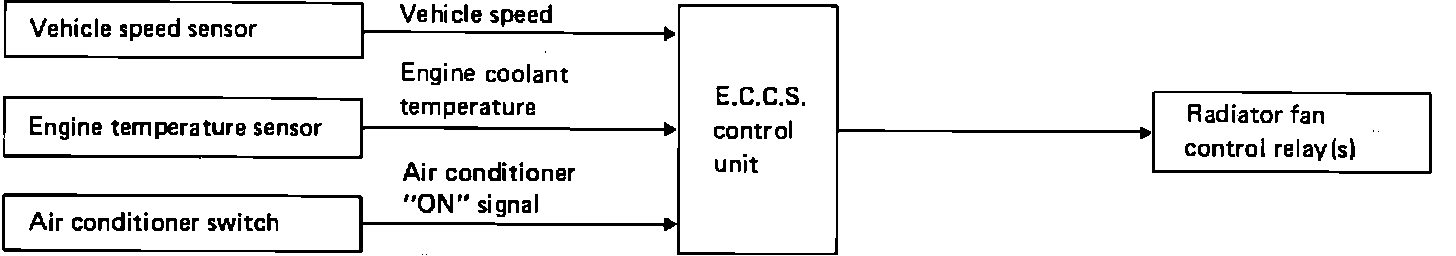

The Engine Control Module (ECM) controls condenser fan operation based on information from the vehicle speed sensor, engine temperature sensor and the A/C switch.

Radiator Fan Control System (Non-Turbo):

OPERATION

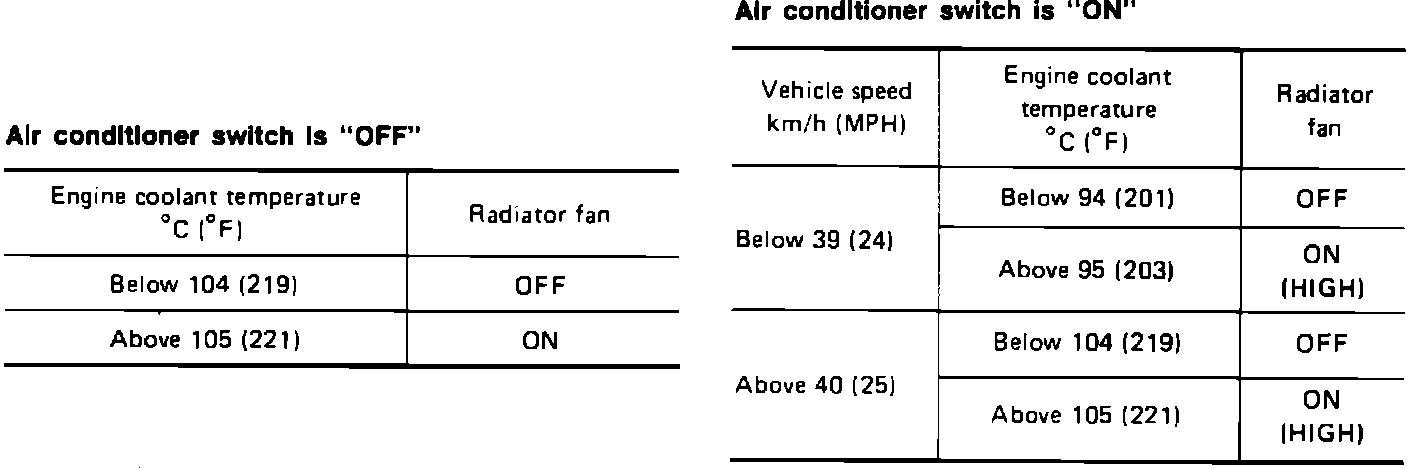

Refer to the chart for condenser fan operating conditions.
