300ZX Convertible V6-2960cc DOHC (VG30DE)
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Vehicle Lift Points
Vehicle Lift Points

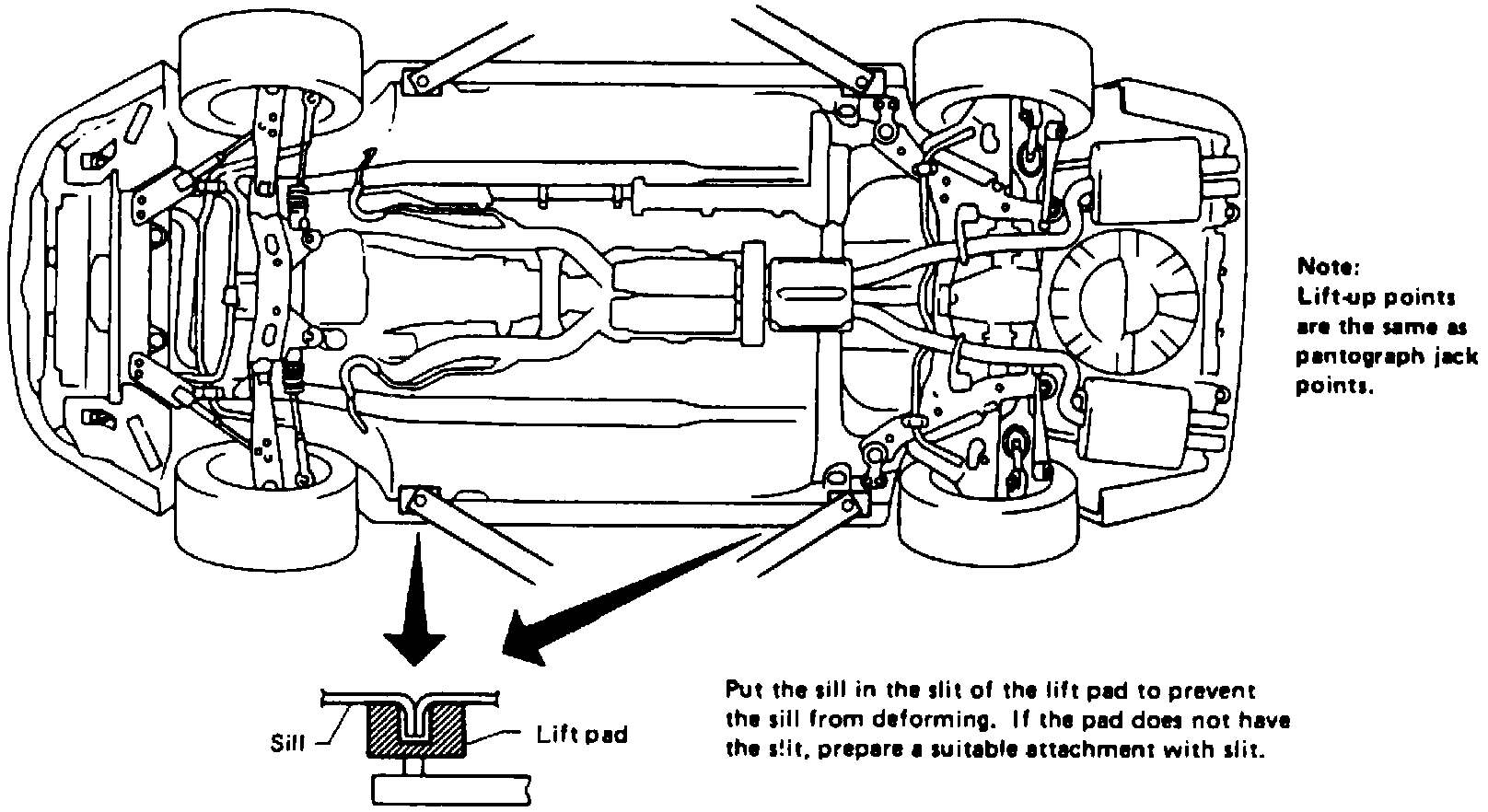

Fig. 18 Hoist:

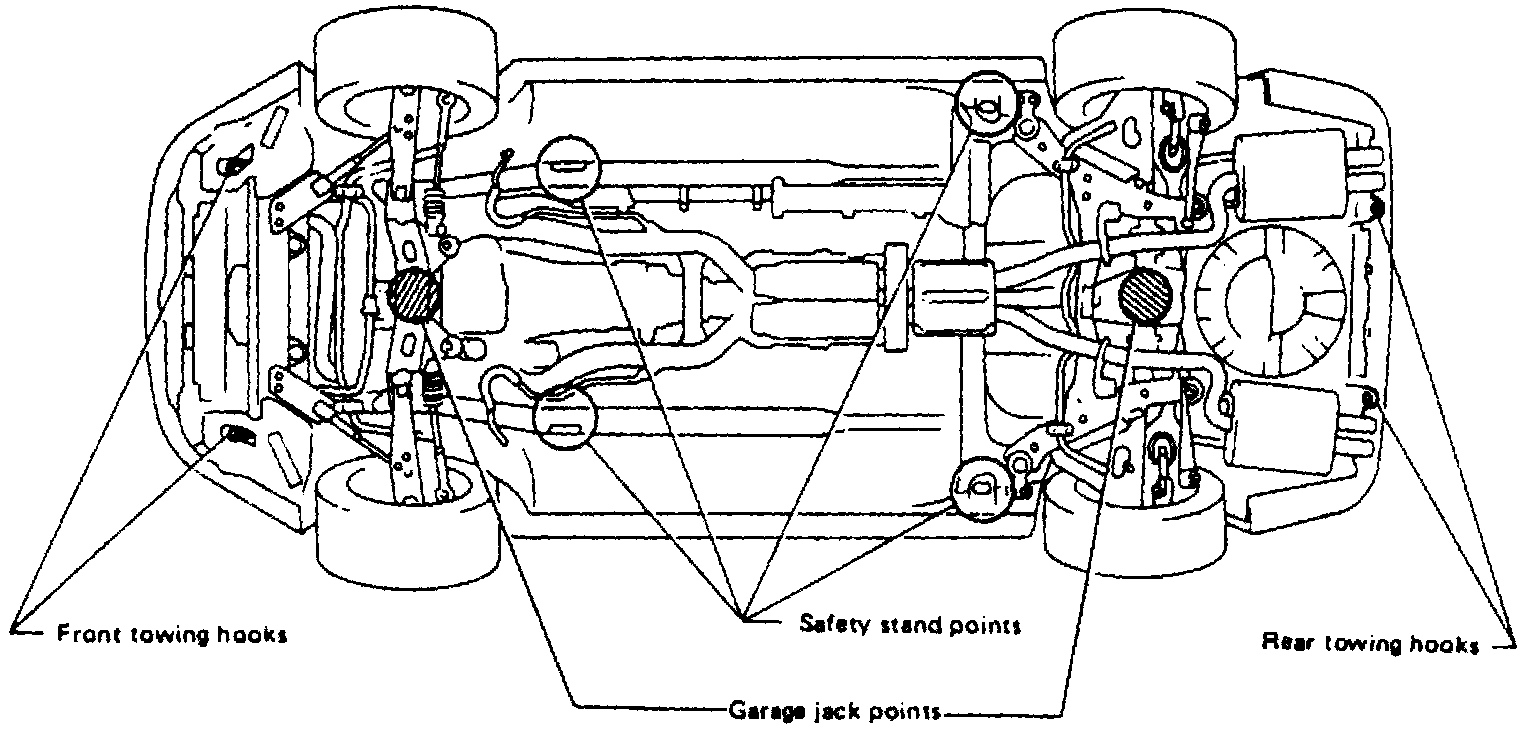

Fig. 19 Floor Jack:
