Air Regulator

IAC Valve-Air Regulator Circuit Diagnostic Chart:




IAC Valve-Air Regulator Circuit Diagnostic Chart:

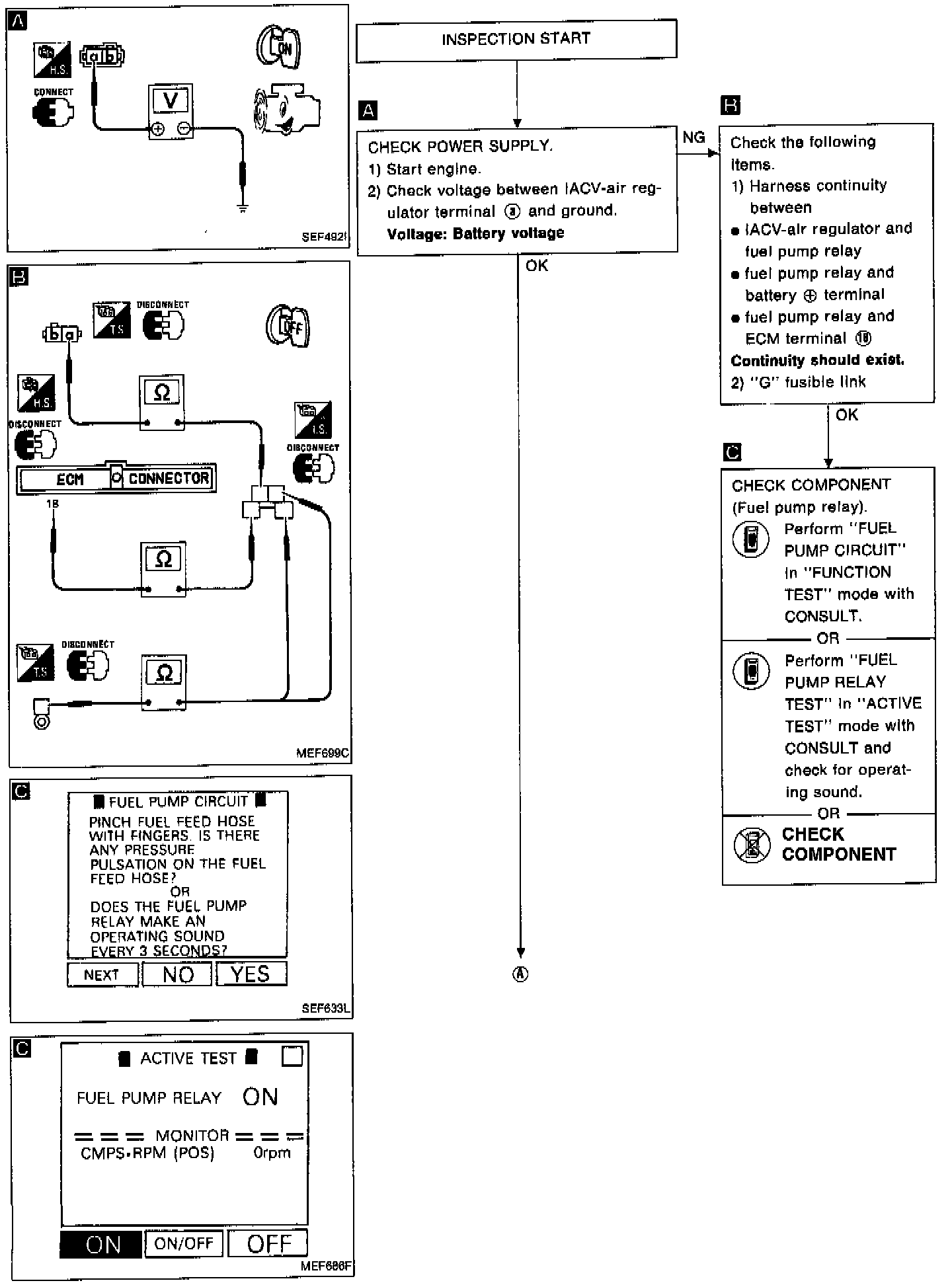

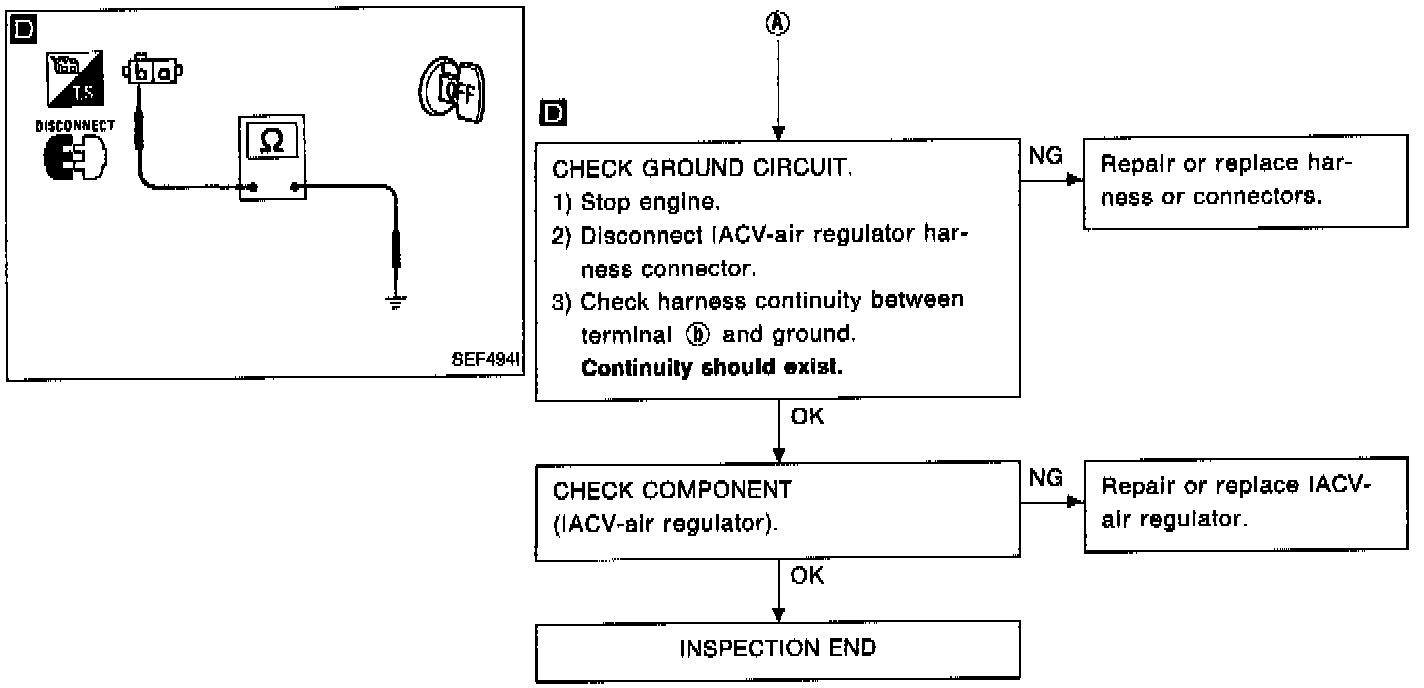

DIAGNOSTIC CHART

Idle Air Control Valve-Air Regulator Circuit:

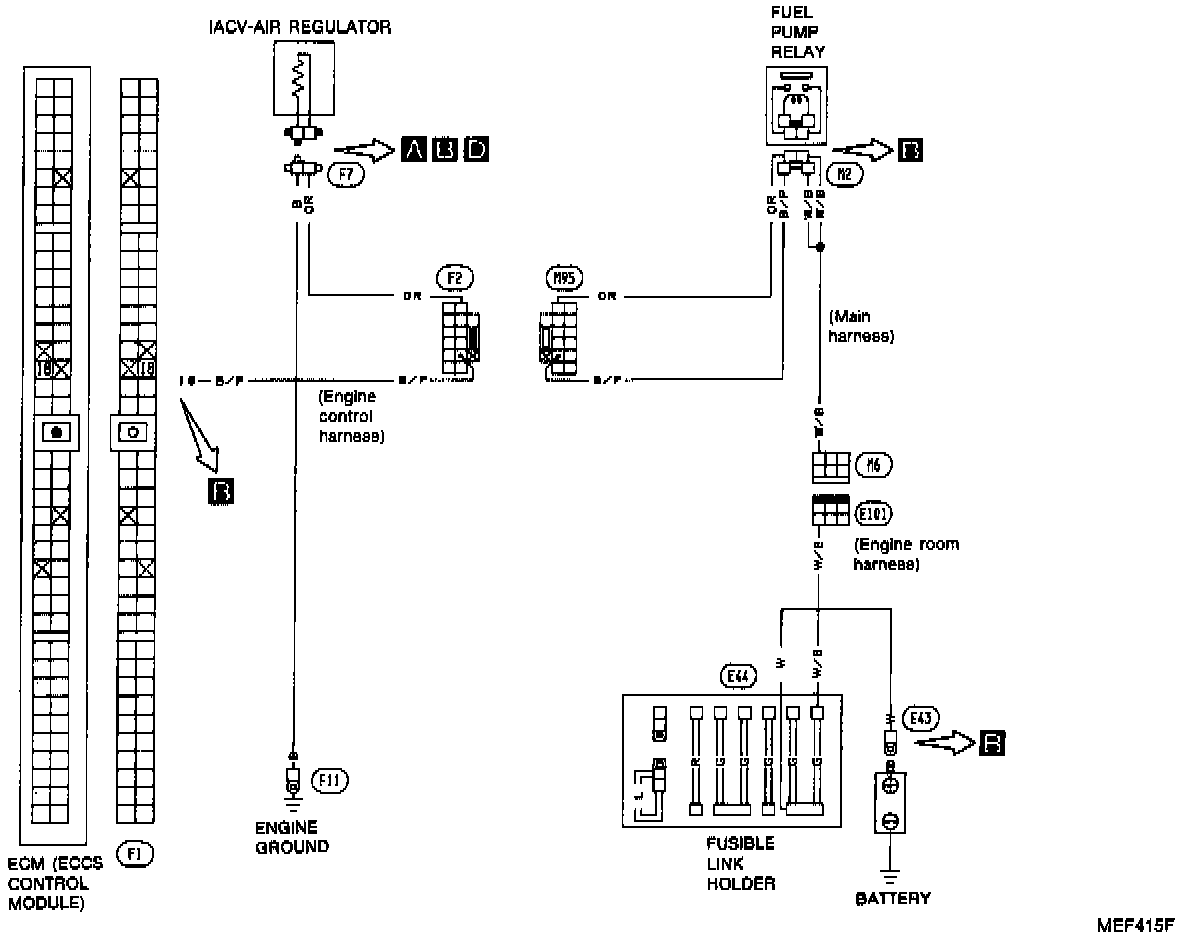

CIRCUIT DIAGRAM

Harness Layout:

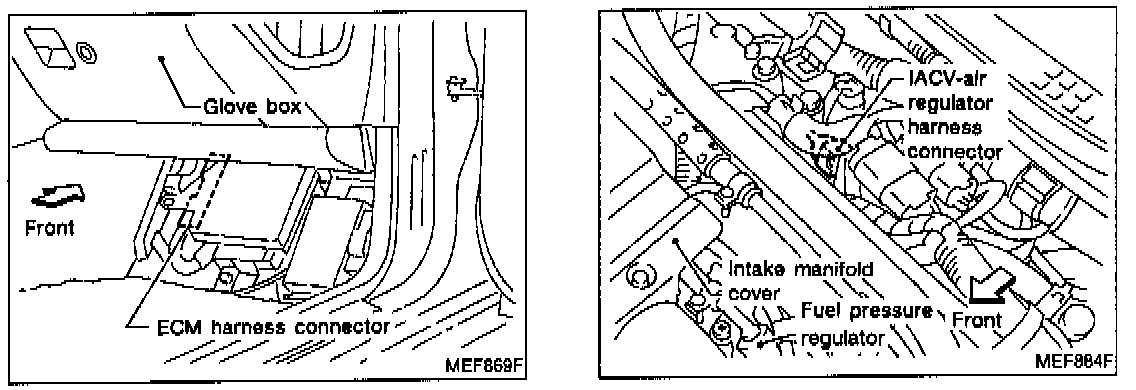

HARNESS LAYOUT
