Fast Idle Control Device (FICD) Circuit
Fast Idle Control Device (FICD) Circuit

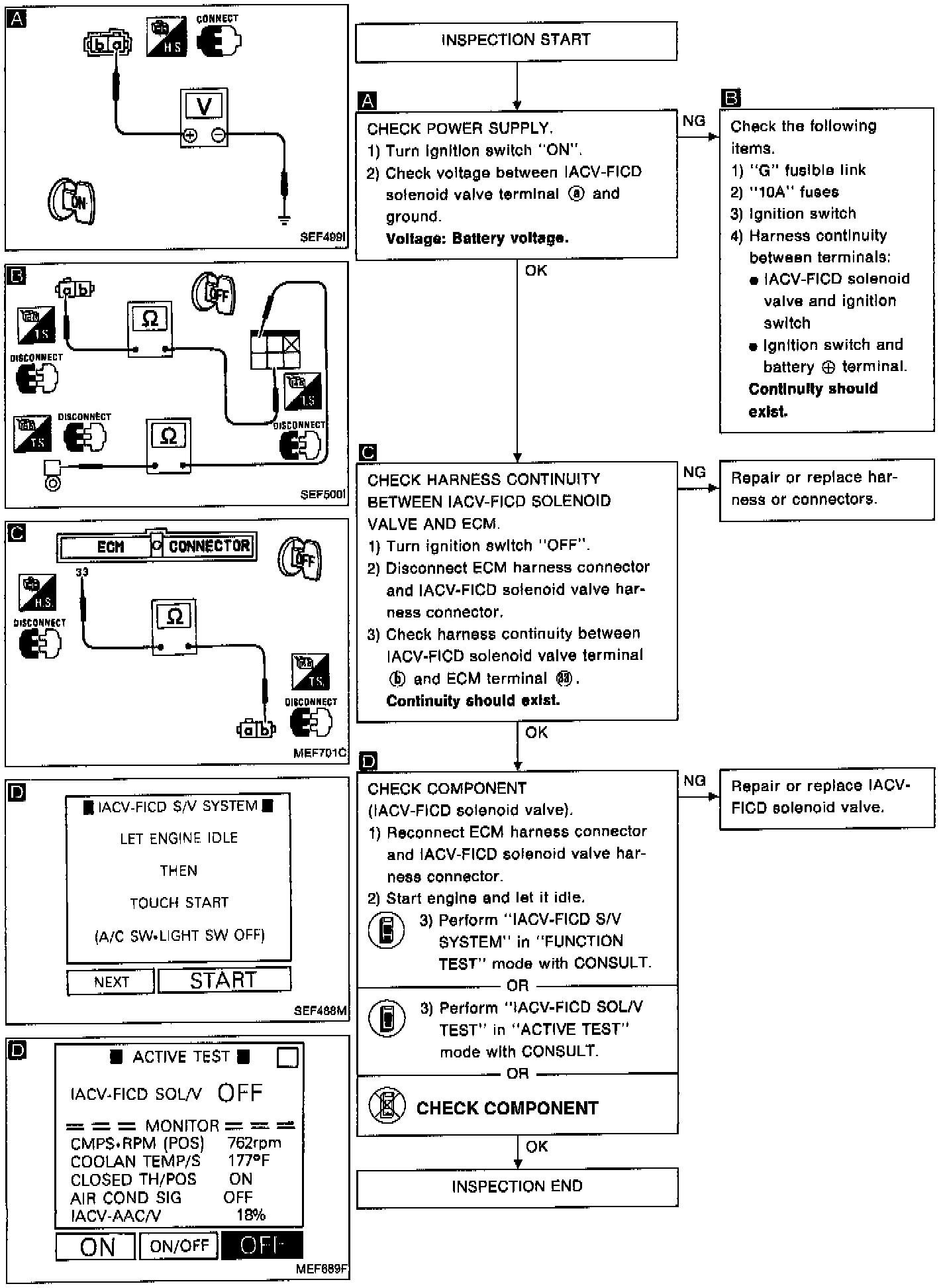

IAC Valve-FICD Valve Circuit Diagnostic Chart:
DIAGNOSTIC CHART

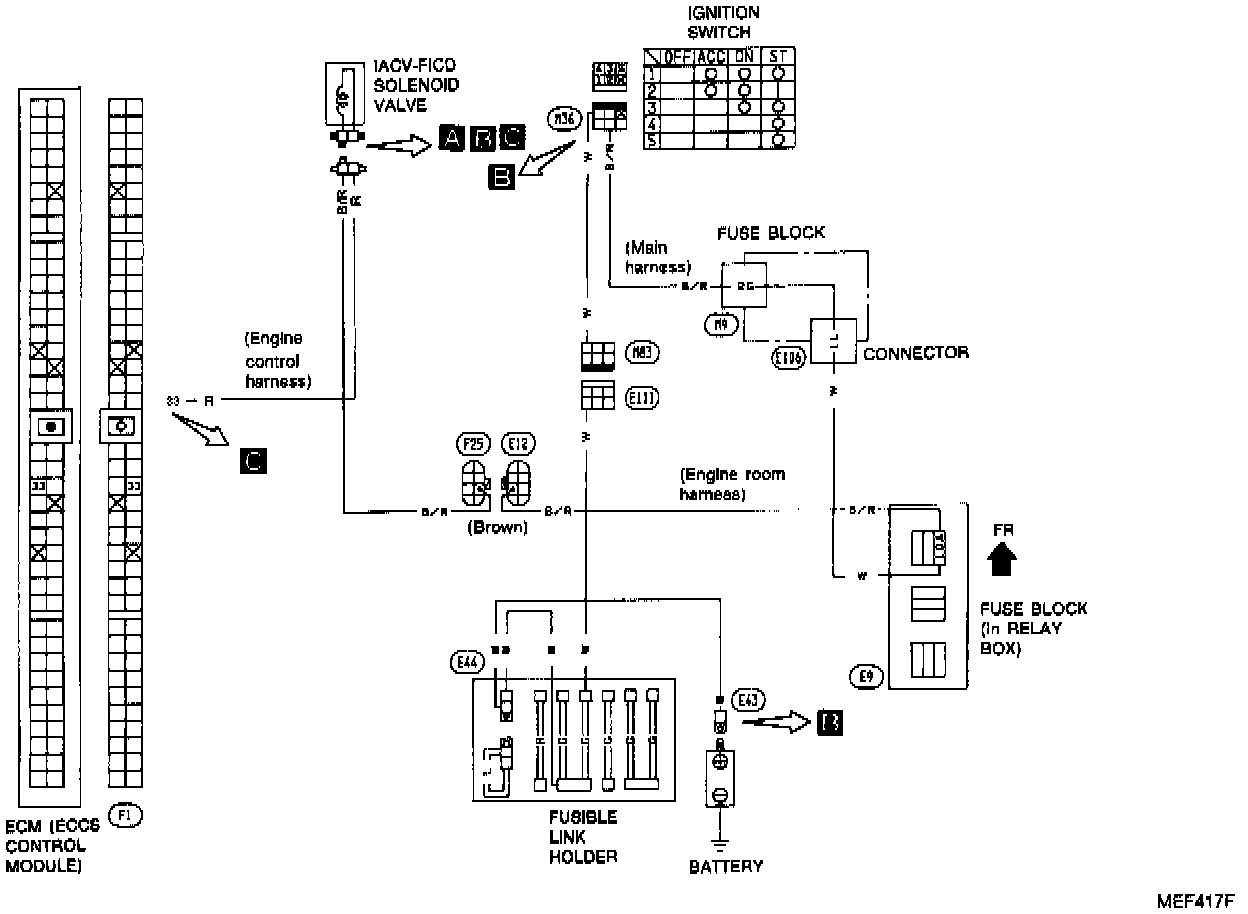

IAC Valve-FICD Valve Circuit:
CIRCUIT DIAGRAM

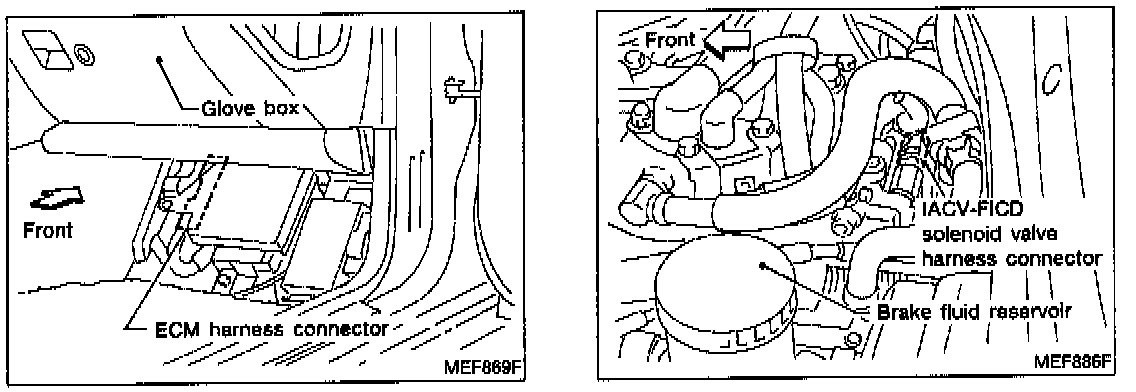

Harness Layout:
HARNESS LAYOUT
