Fuel Pressure Regulator Control

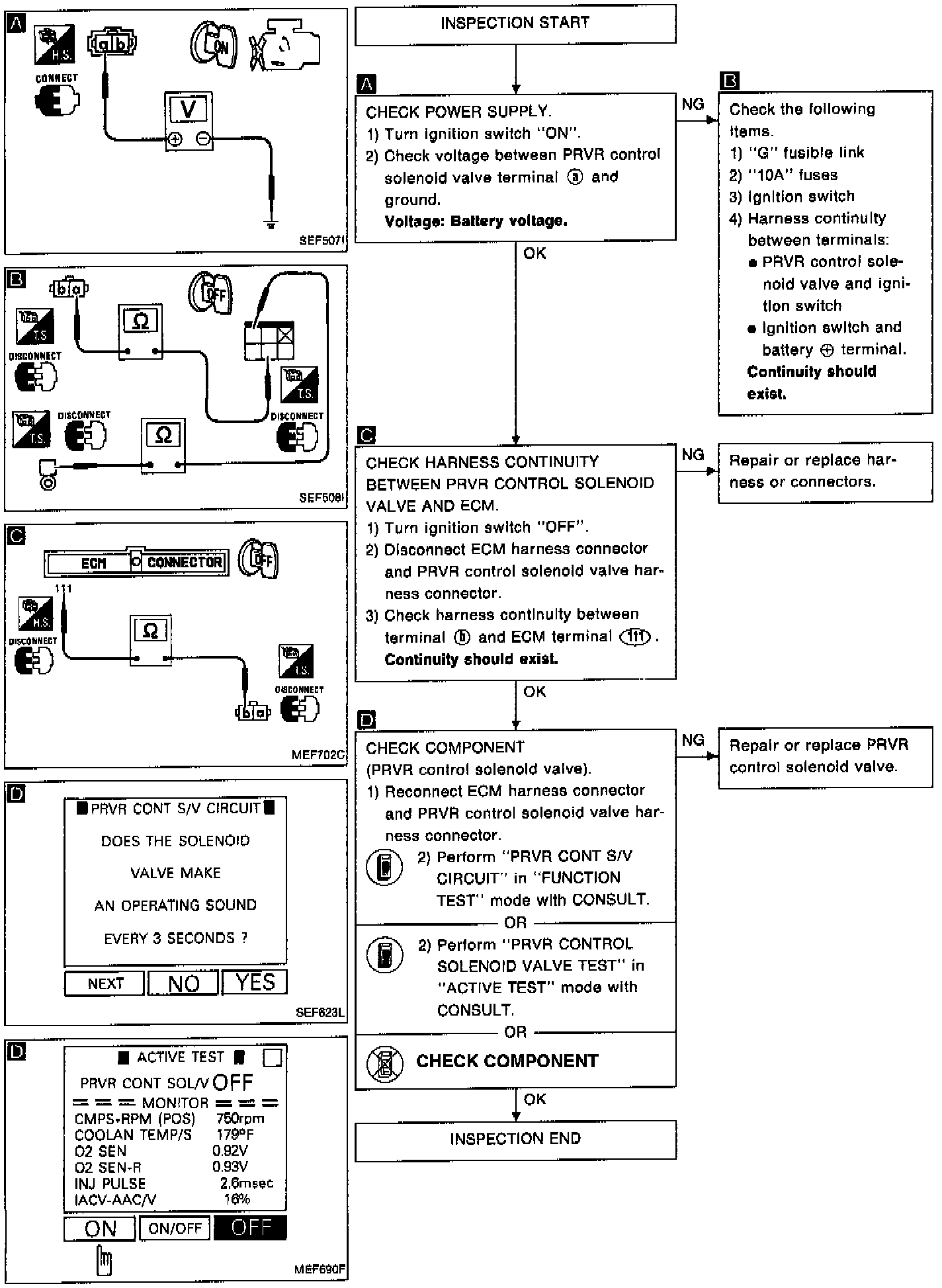

Fuel Pressure Control Solenoid (PRVR) Circuit Diagnostic Chart:

DIAGNOSTIC CHART

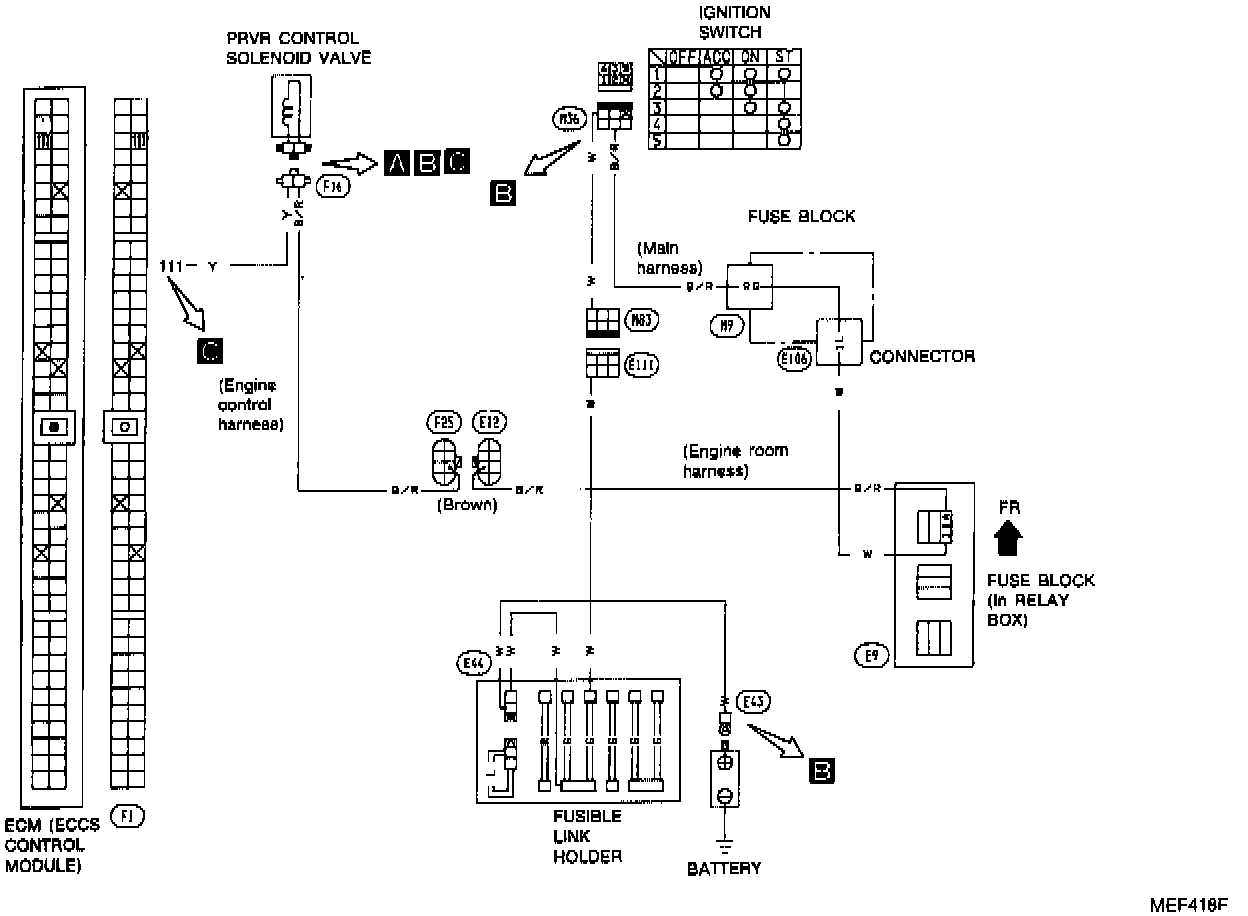

Fuel Pressure Control Solenoid (PRVR) Circuit:

CIRCUIT DIAGRAM

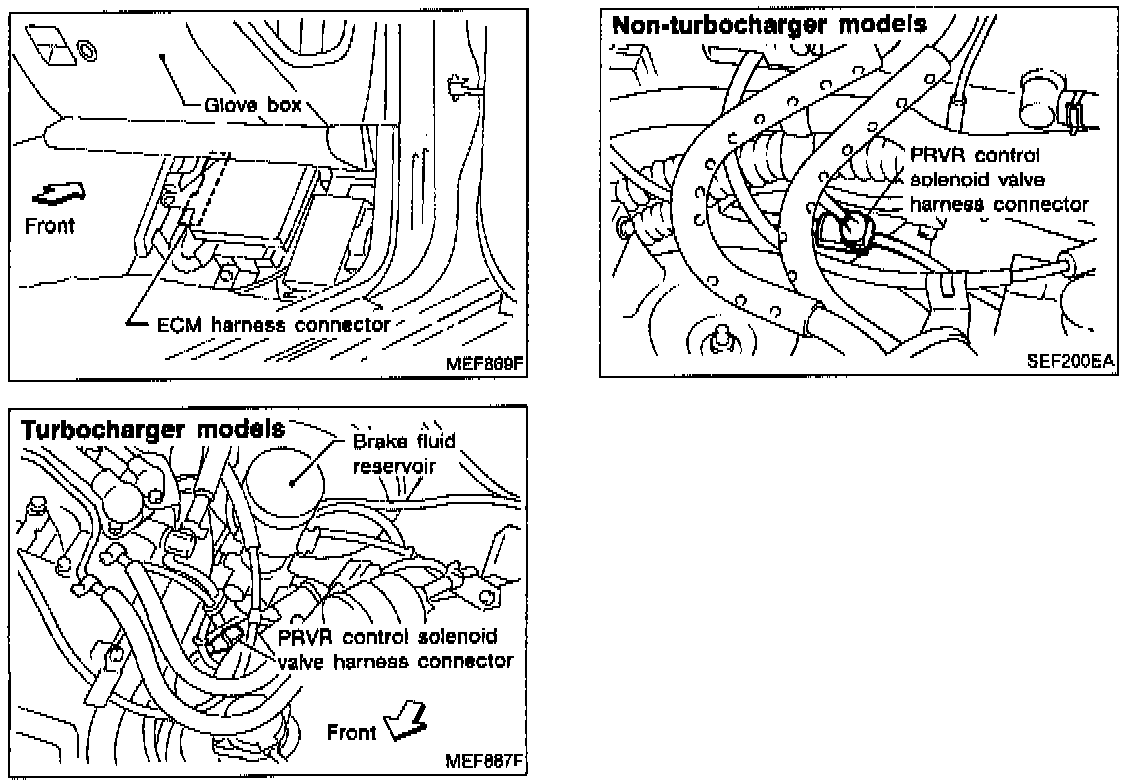

Harness Layout:

HARNESS LAYOUT
