Function Test Mode
Function Test Mode

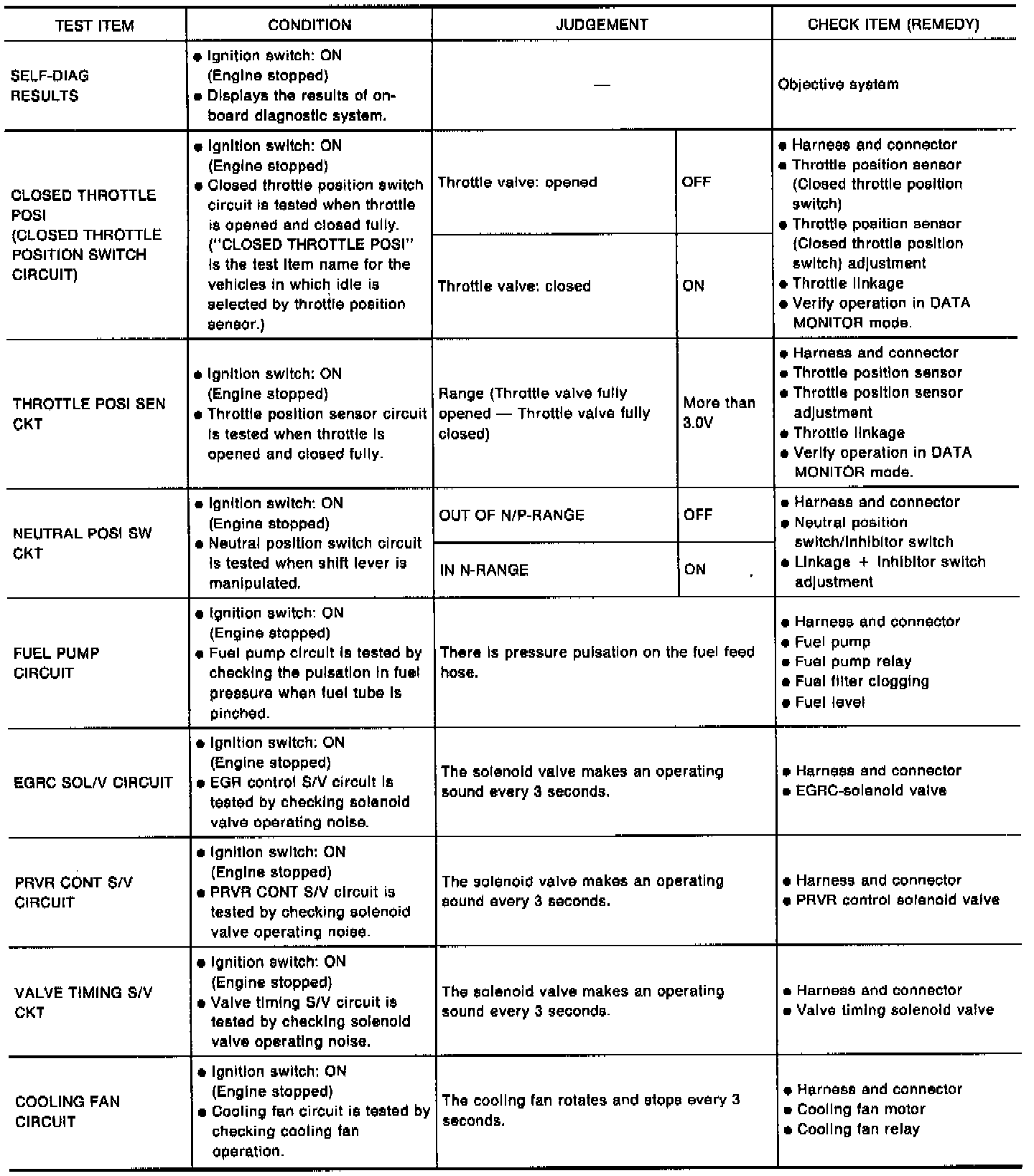

Function Test Mode Chart-1:

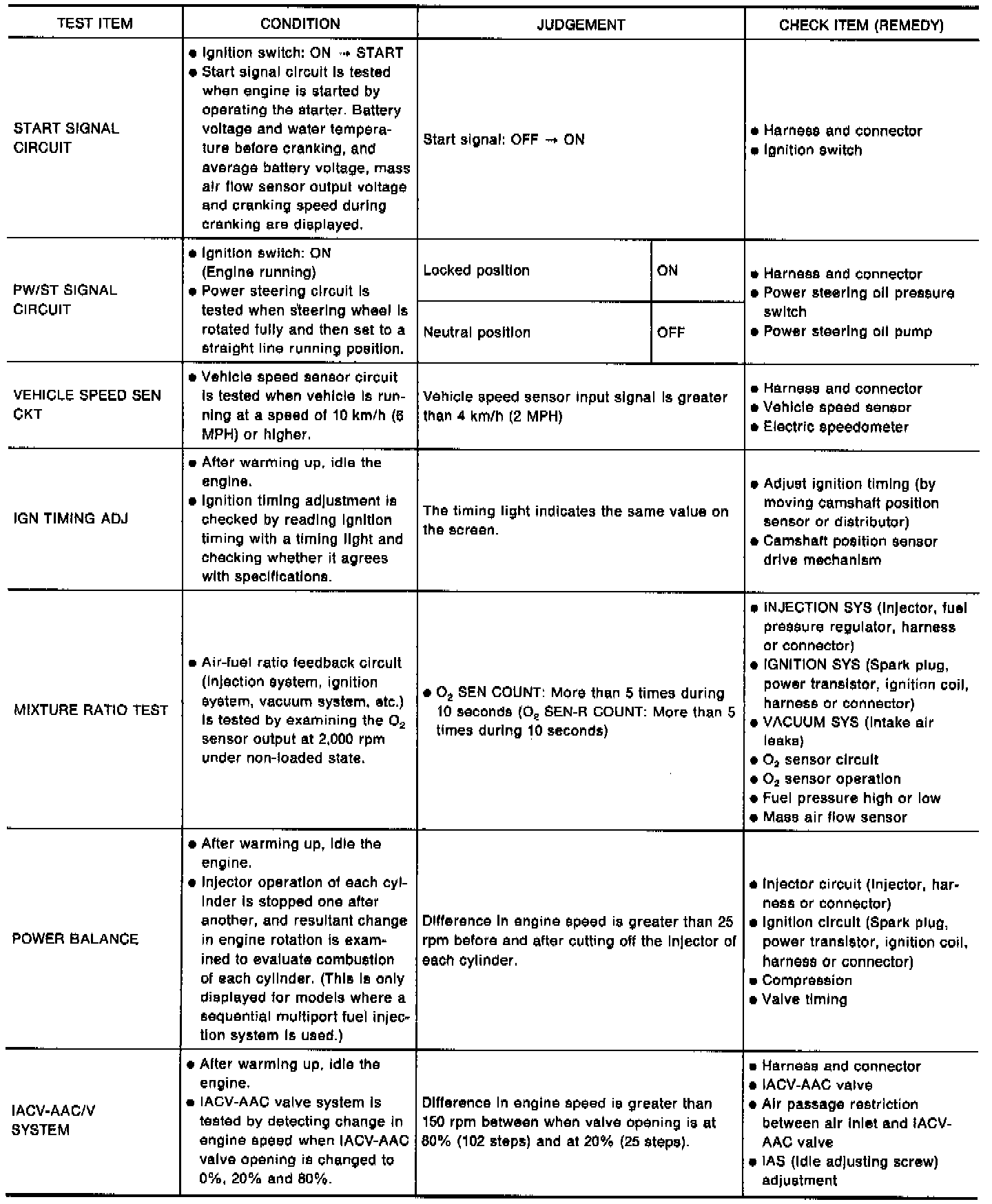

Function Test Mode Chart-2:

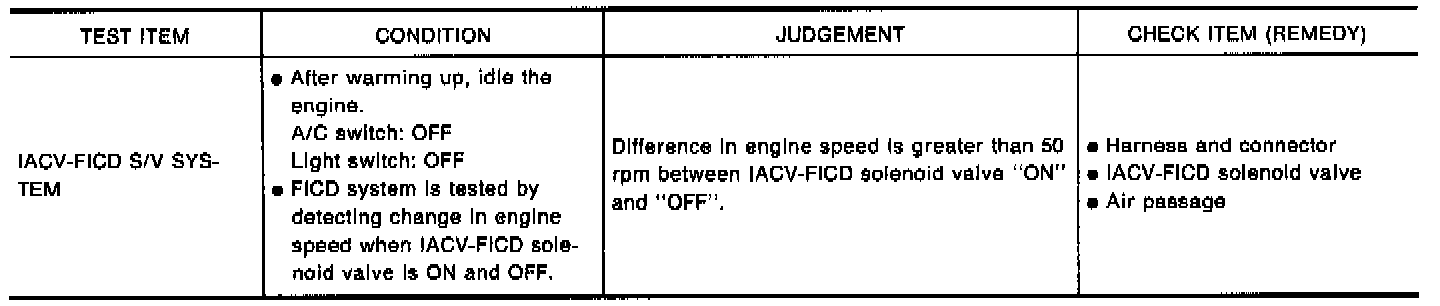

Function Test Mode Chart-3:
