300ZX Convertible V6-2960cc DOHC (VG30DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum Hose Routing
Vacuum Hose Routing

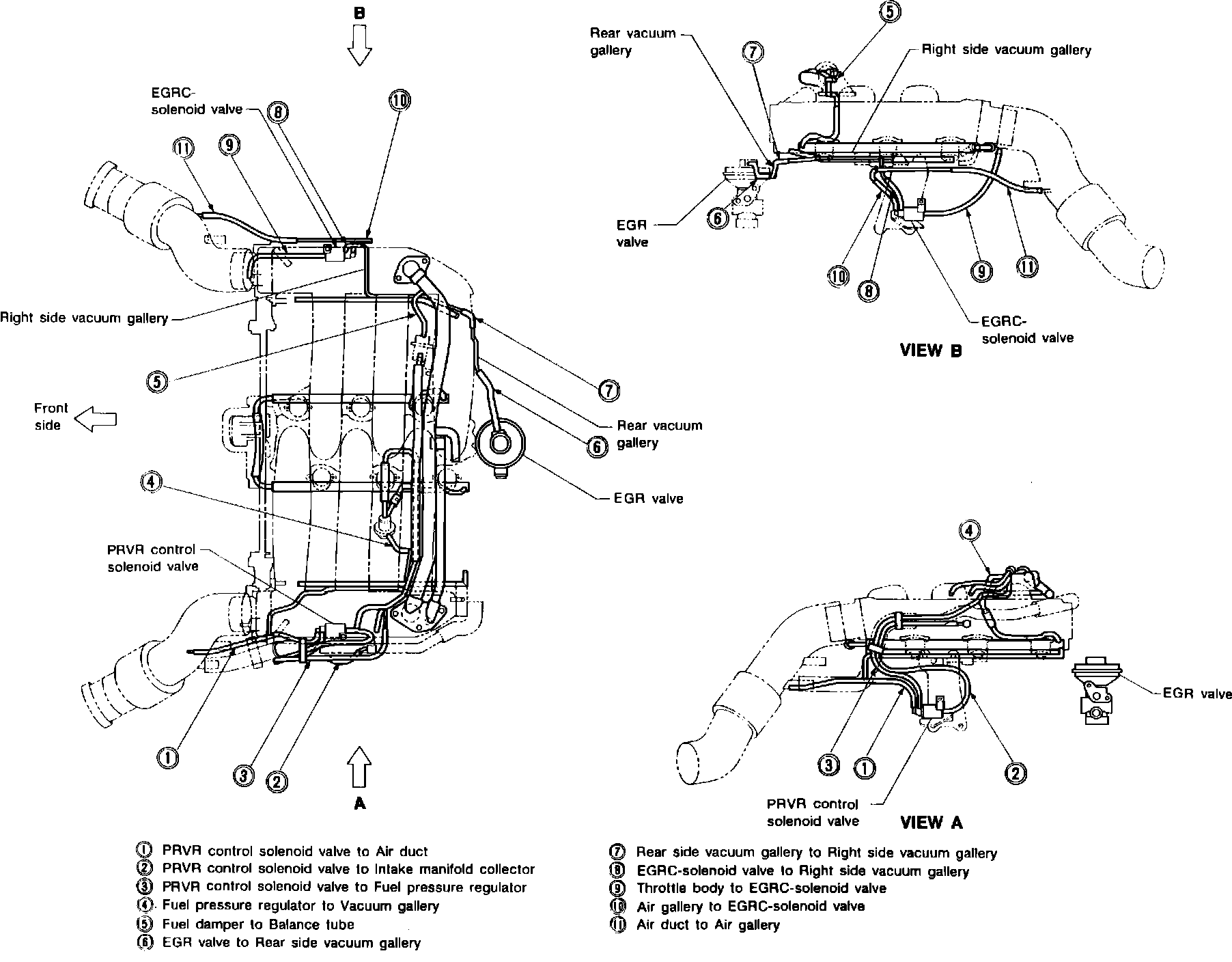

Vacuum Hose Routing And Connections:
VACUUM FITTINGS AND CONNECTIONS
