Evaporative Check Valve: Testing and Inspection

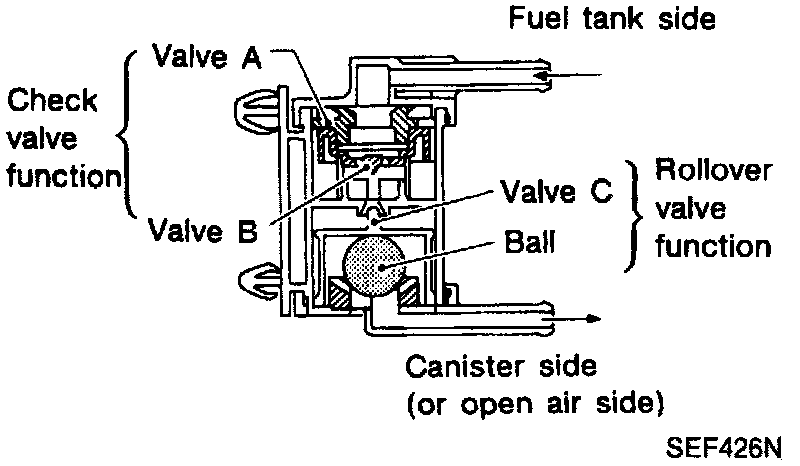

Fuel Check Valve:

^ Blow air into the connector on the fuel tank side. A considerable resistance should be felt and a portion of air flow should be directed toward the canister side.
^ Blow air into the connector on the canister side. Air flow should be smoothly directed toward the fuel tank side. Replace valve if it fails above tests.
