Diesel Data: Automotive Repair

EGR Valve: Testing and Inspection

EGR Test:

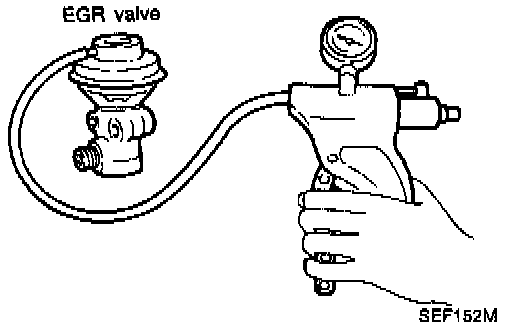

Apply vacuum to Exhaust Gas Recirculation (EGR) vacuum port with a hand vacuum pump.
^ EGR valve spring should lift.
^ If NG, replace EGR valve.
