Initial Inspection and Diagnostic Overview

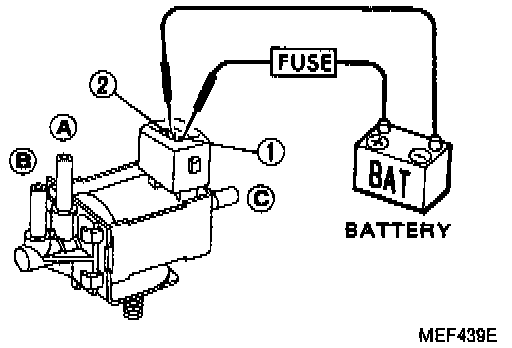

EGRC Solenoid Valve Test:

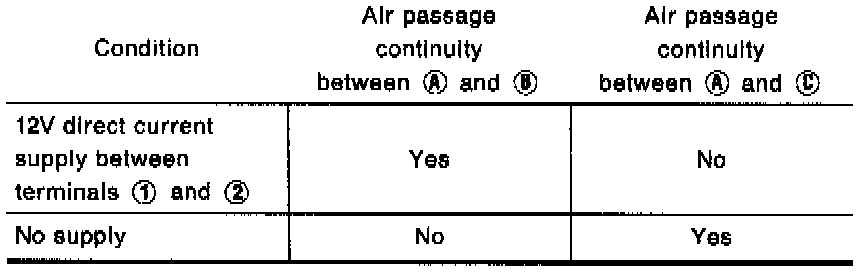

^ Check air passage continuity.
^ If NG, replace solenoid valve.
