Home
>>
Nissan-Datsun
>>
1994
>>
300ZX Convertible V6-2960cc DOHC (VG30DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

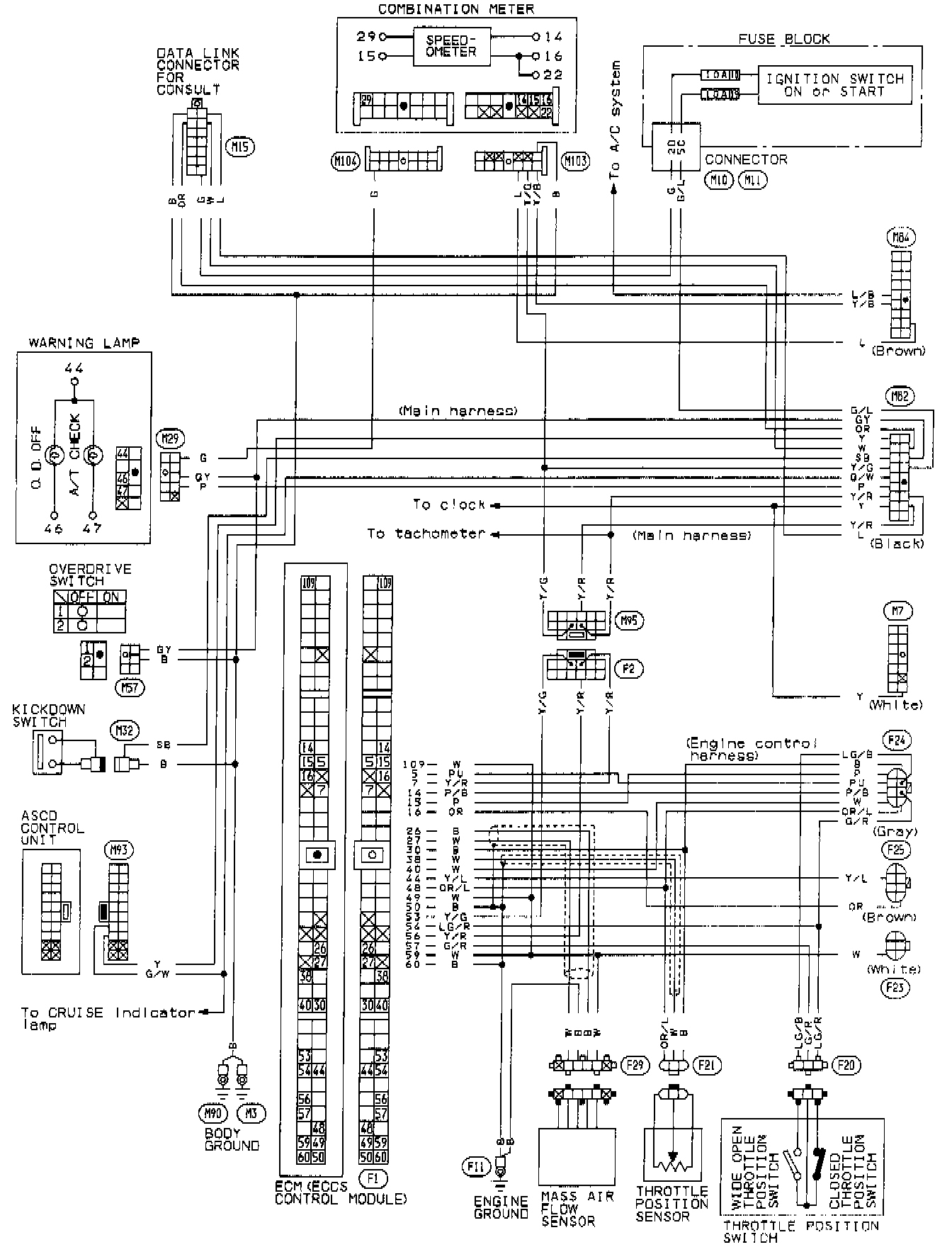

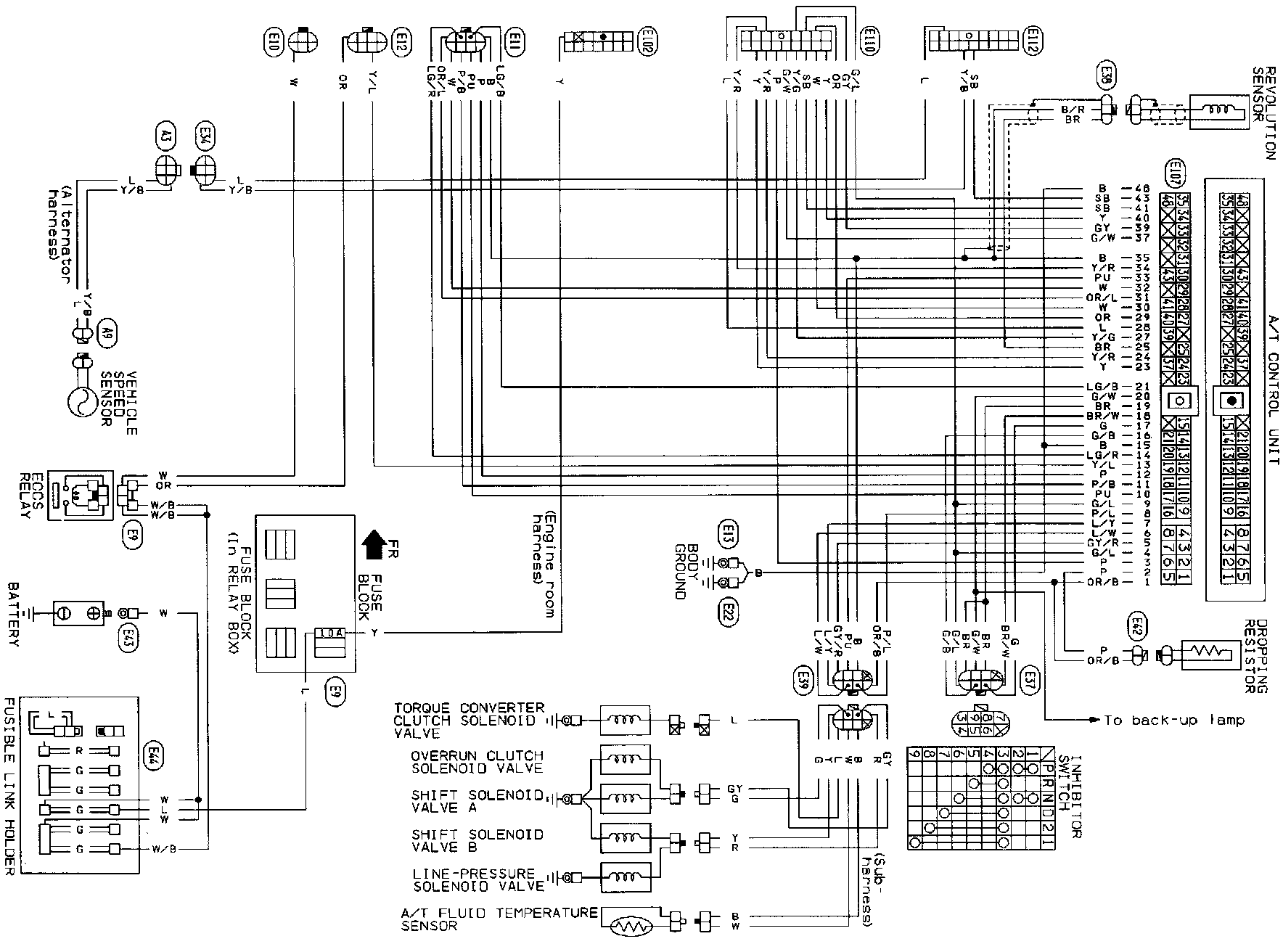

Automatic Transmission:
Automatic Transmission:
