Home
>>
Nissan-Datsun
>>
1994
>>
300ZX Convertible V6-2960cc DOHC (VG30DE)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Fuel Delivery and Air Induction
>>
Fuel Pump Control Unit
>>
Testing and Inspection
>>
Component Testing Procedure
Component Testing Procedure

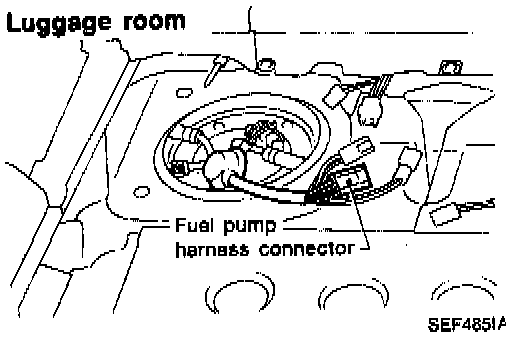

Fuel Pump Location:
Fuel Pump Voltage Control:

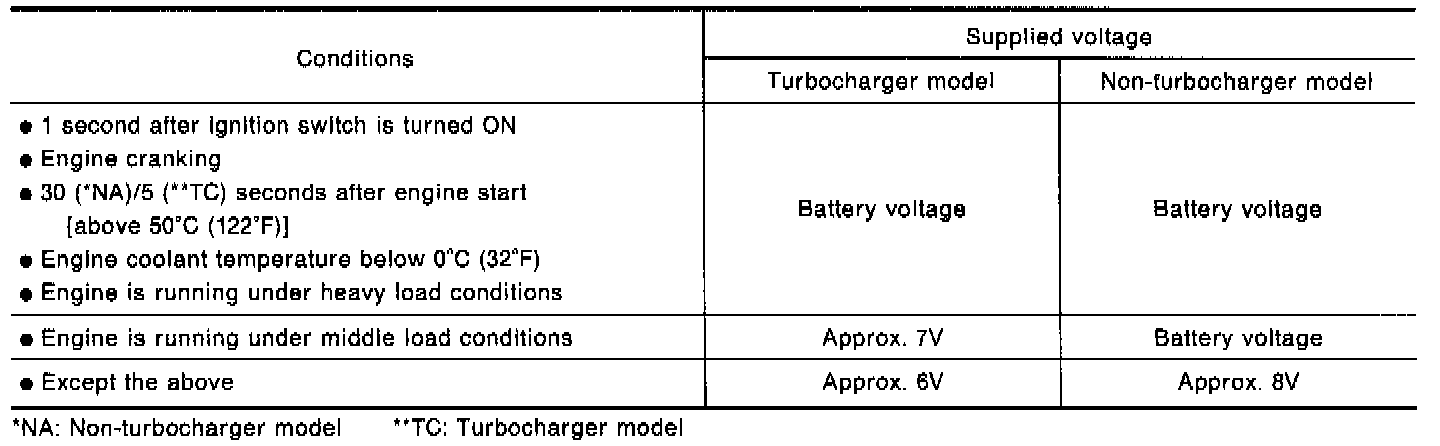

Do test as described in image table, at fuel pump harness.
