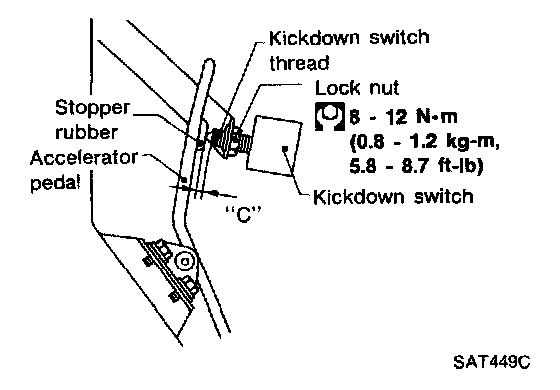

Kickdown Switch Adjustment
Kickdown Switch Adjustment1. Adjust accelerator cable.
2. Adjust clearance "C" between stopper rubber and end of kickdown switch thread while depressing accelerator pedal fully.
^ Clearance "C": 0.3-1.0 mm (0.012-0.039 in)
