Wastegate Control Circuit

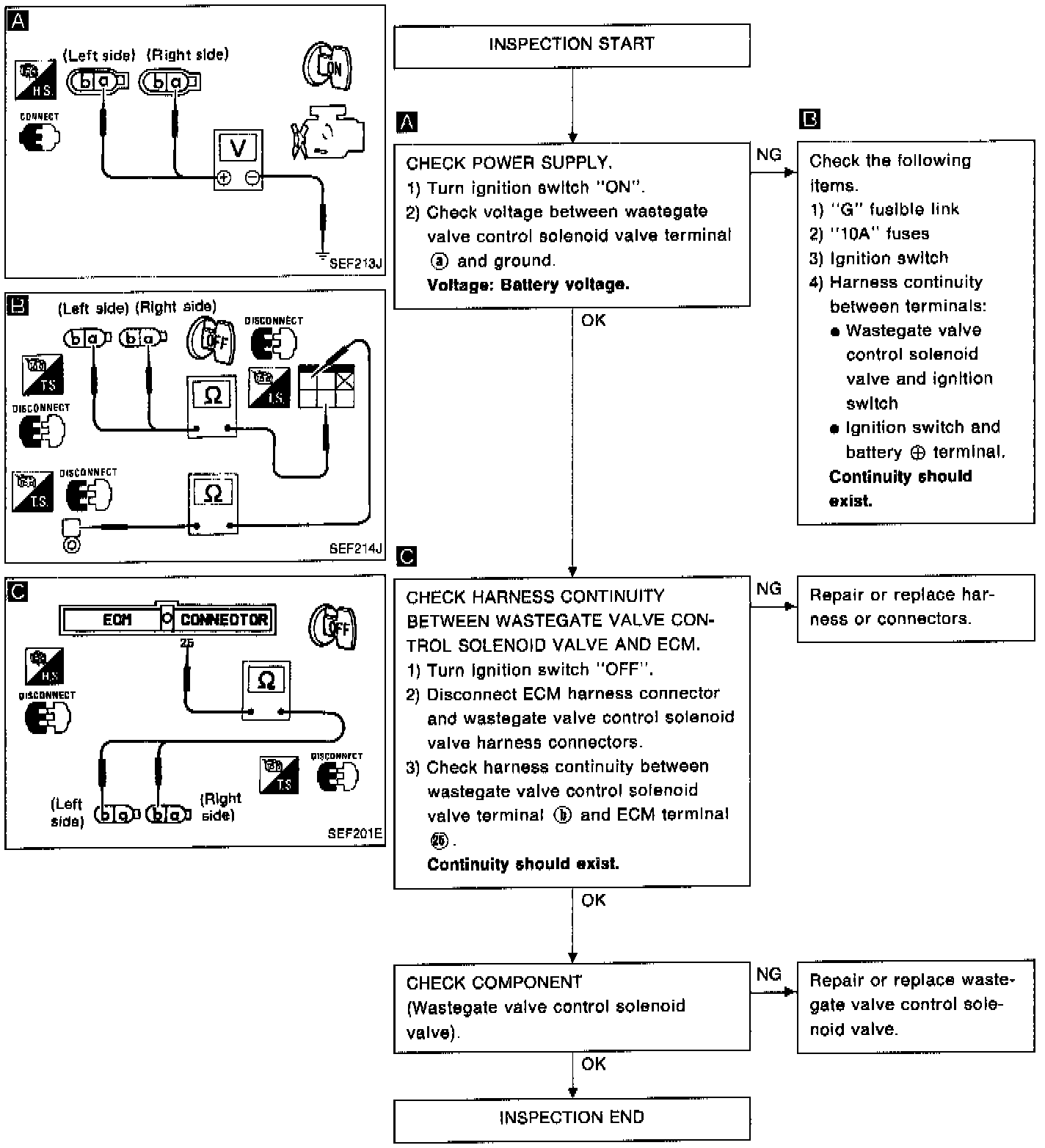

Wastegate Control Solenoid Circuit Diagnostic Chart:

DIAGNOSTIC CHART

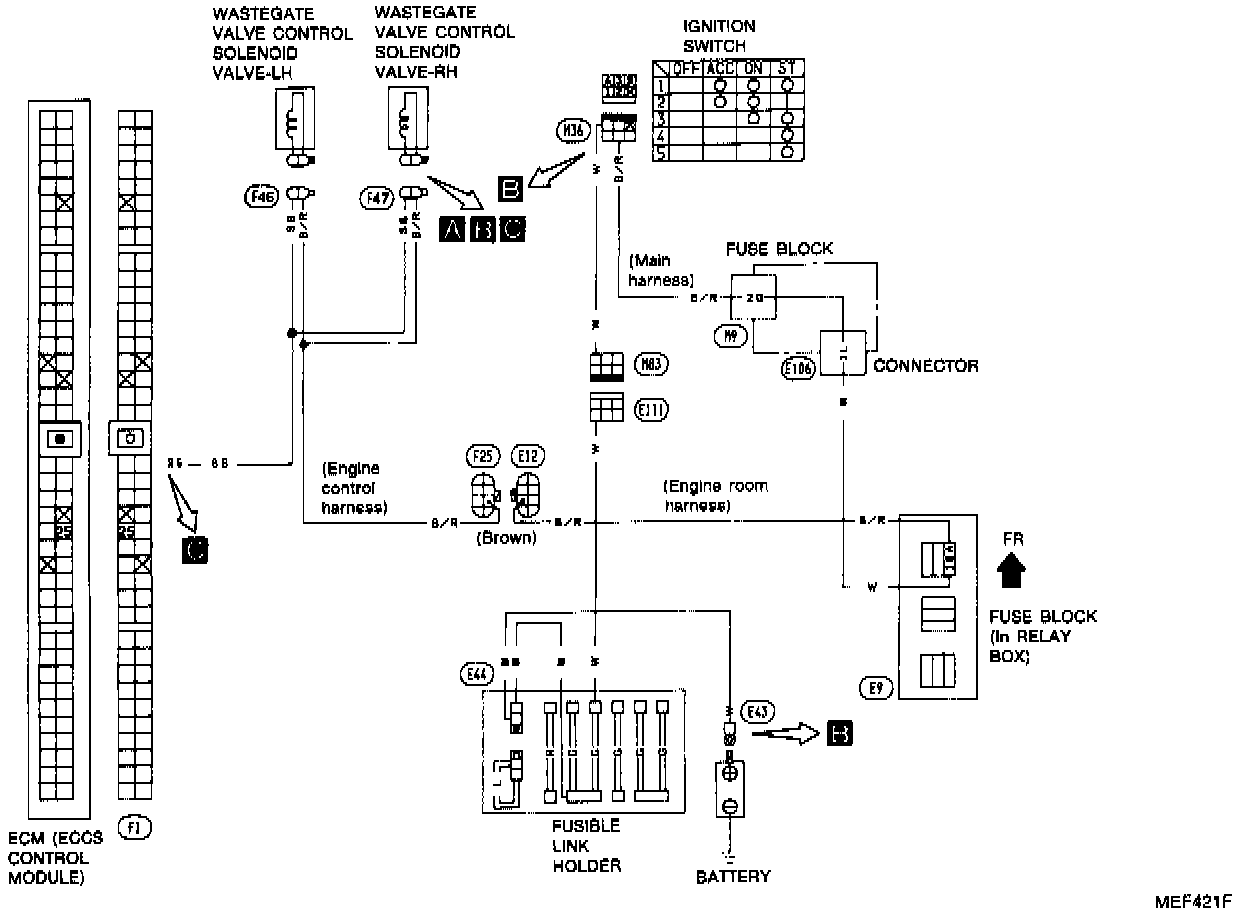

Wastegate Control Solenoid Circuit:

CIRCUIT DIAGRAM

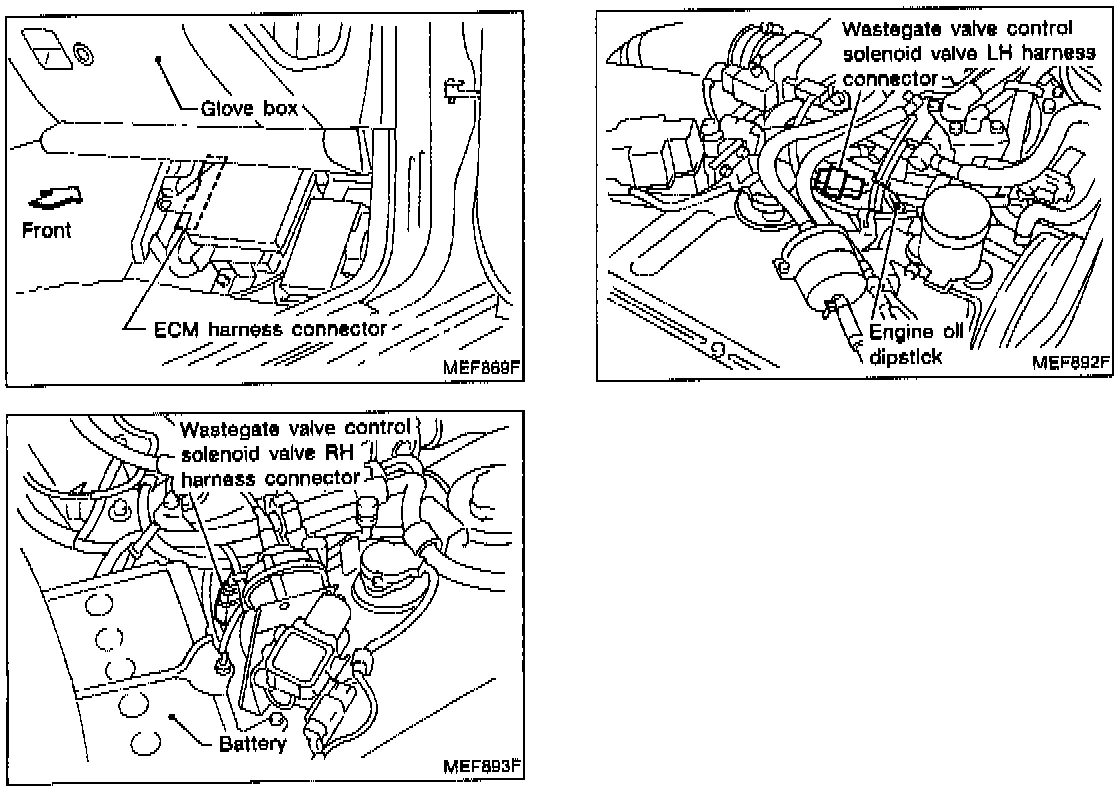

Harness Layout:

HARNESS LAYOUT
