Home >> Nissan-Datsun >> 1994 >> 300ZX Coupe V6-2960cc DOHC Turbo (VG30DETT) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Shift Schedule

Shift Schedule

RE4R03A:

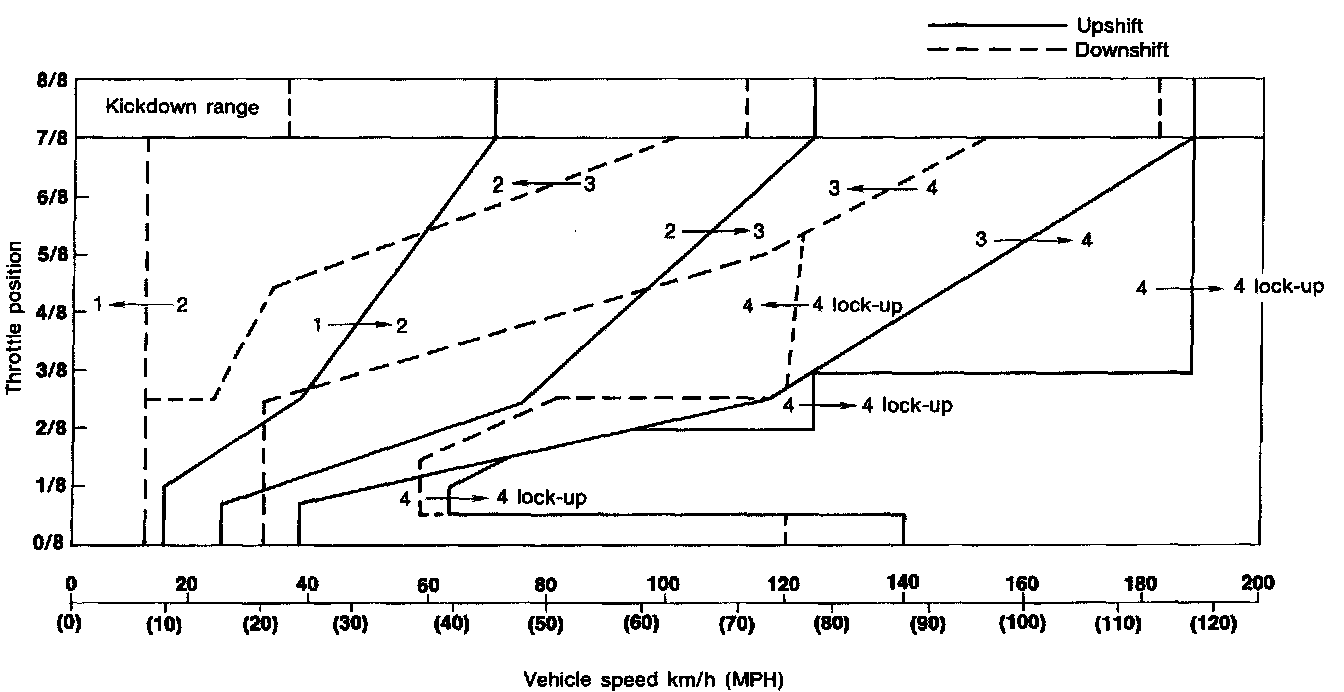

Shift schedule (Overdrive ON)

RE4R03A:

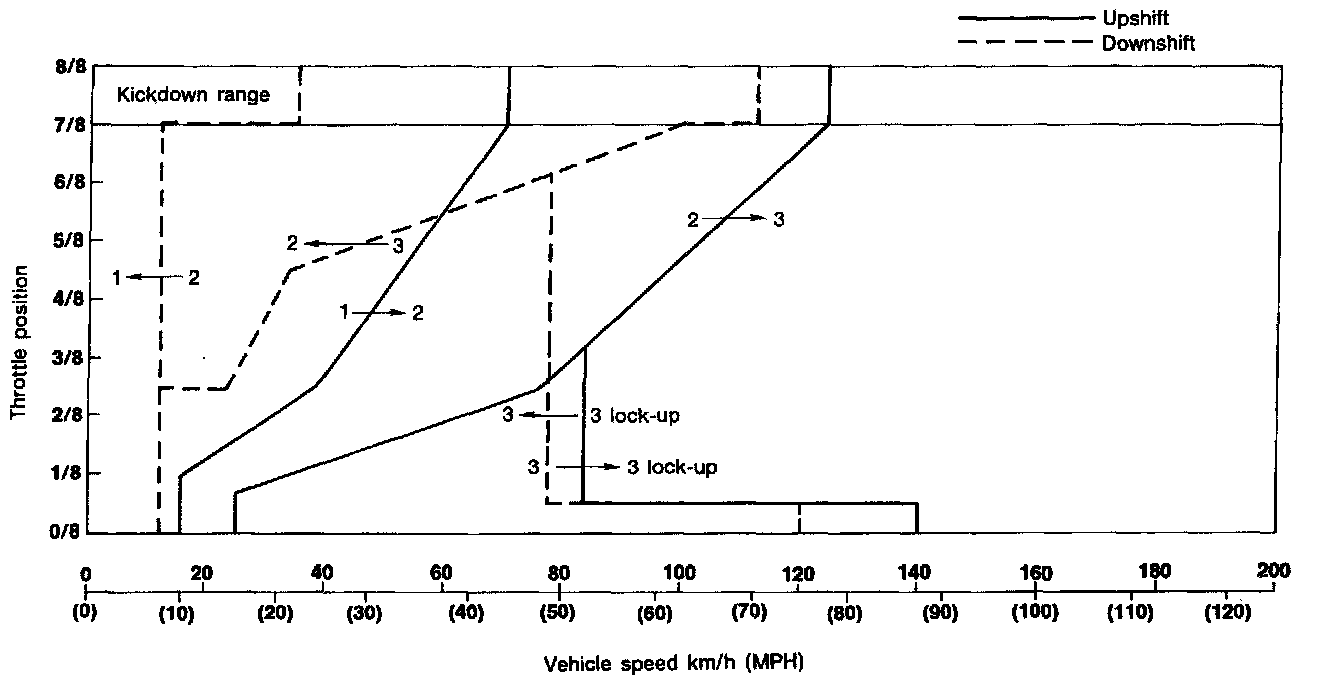

Shift schedule (Overdrive OFF)
