DTC 12

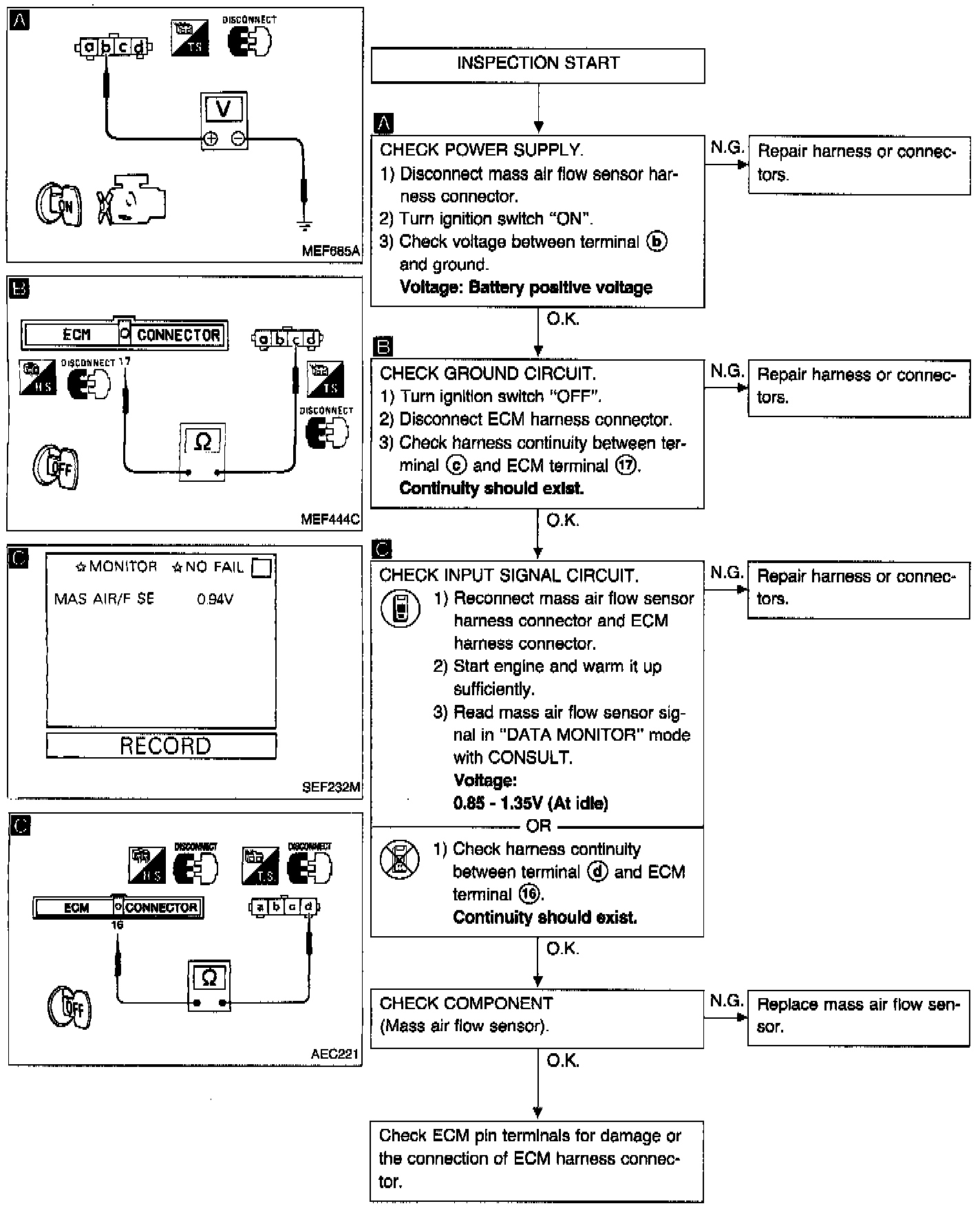

DTC 12 Mass Air Flow Sensor Diagnostic Chart:





DIAGNOSTIC CHART

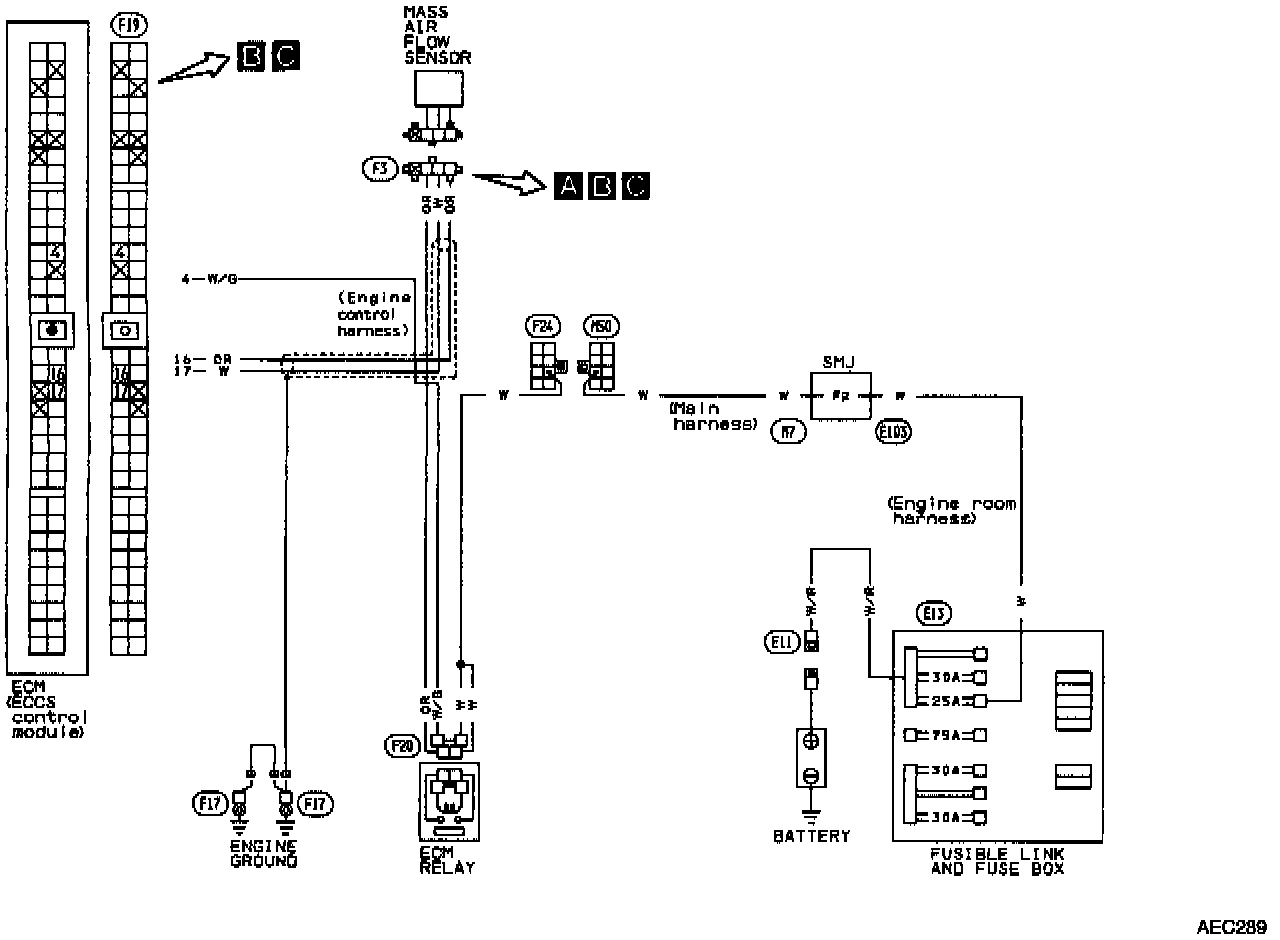

Mass Air Flow Meter/Sensor Circuit:





CIRCUIT DIAGRAM

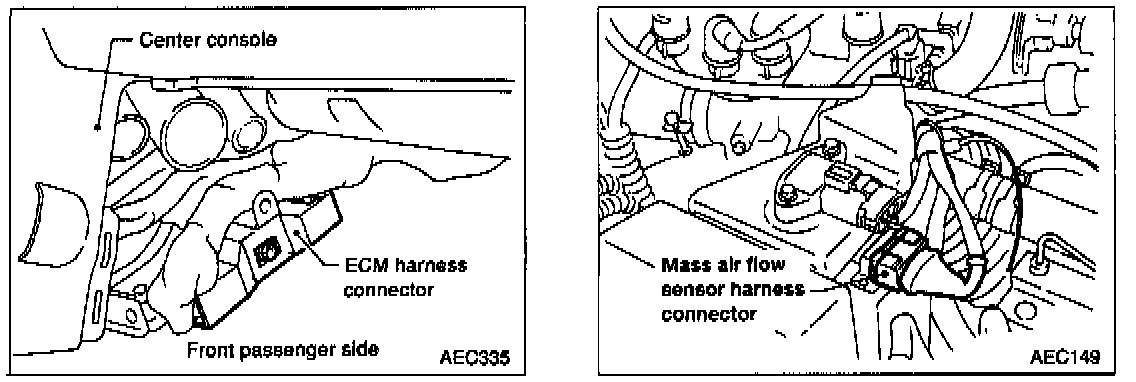

Harness Layout:





HARNESS LAYOUT

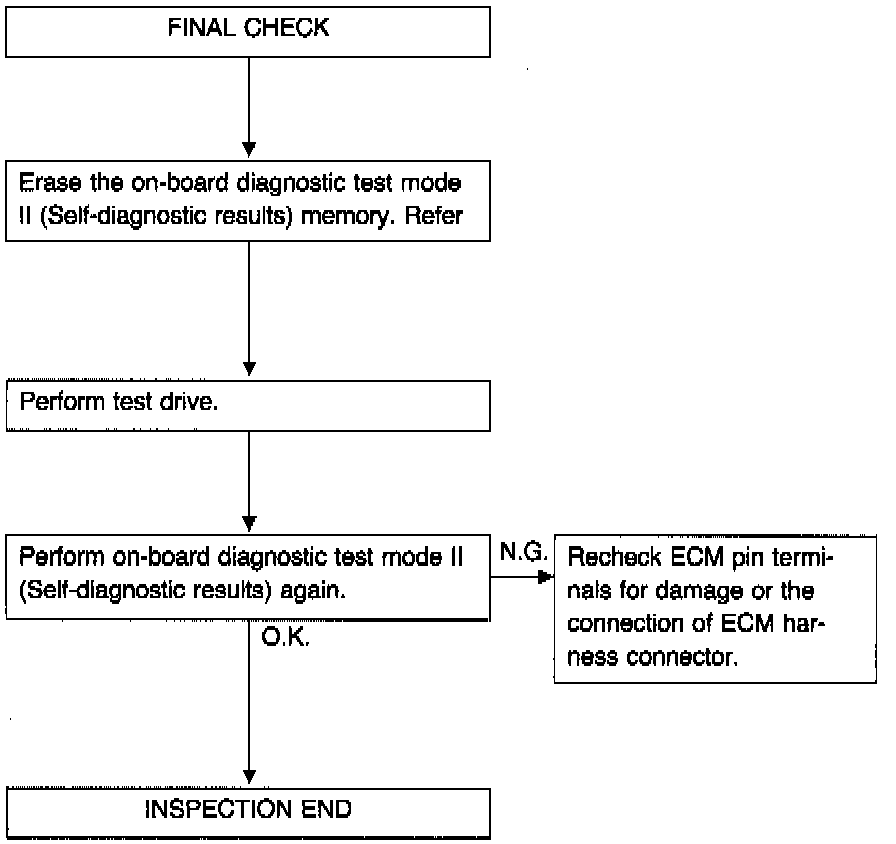

Final Check:





FINAL CHECK
