DTC 35

Knock Sensor:

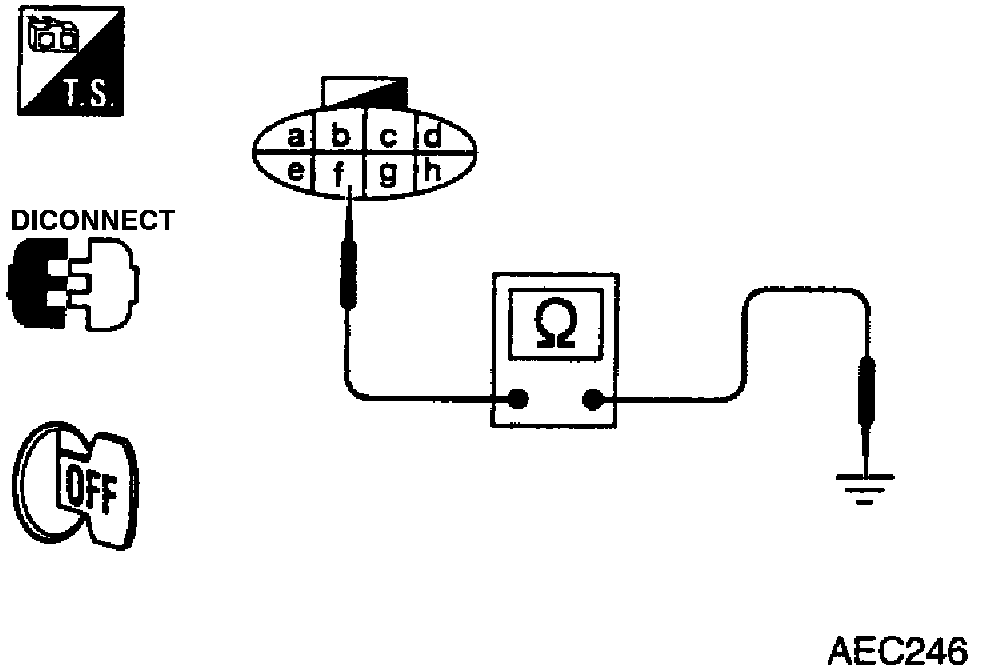

Turn ignition switch off. Disconnect Knock Sensor harness connector. Using an ohmmeter capable of more than 10 megaohms, measure the resistance between terminal F and ground.
Replace the sensor if continuity does not exist.

NOTE: If knock sensor has been dropped or undergone shocks, replace with new one.

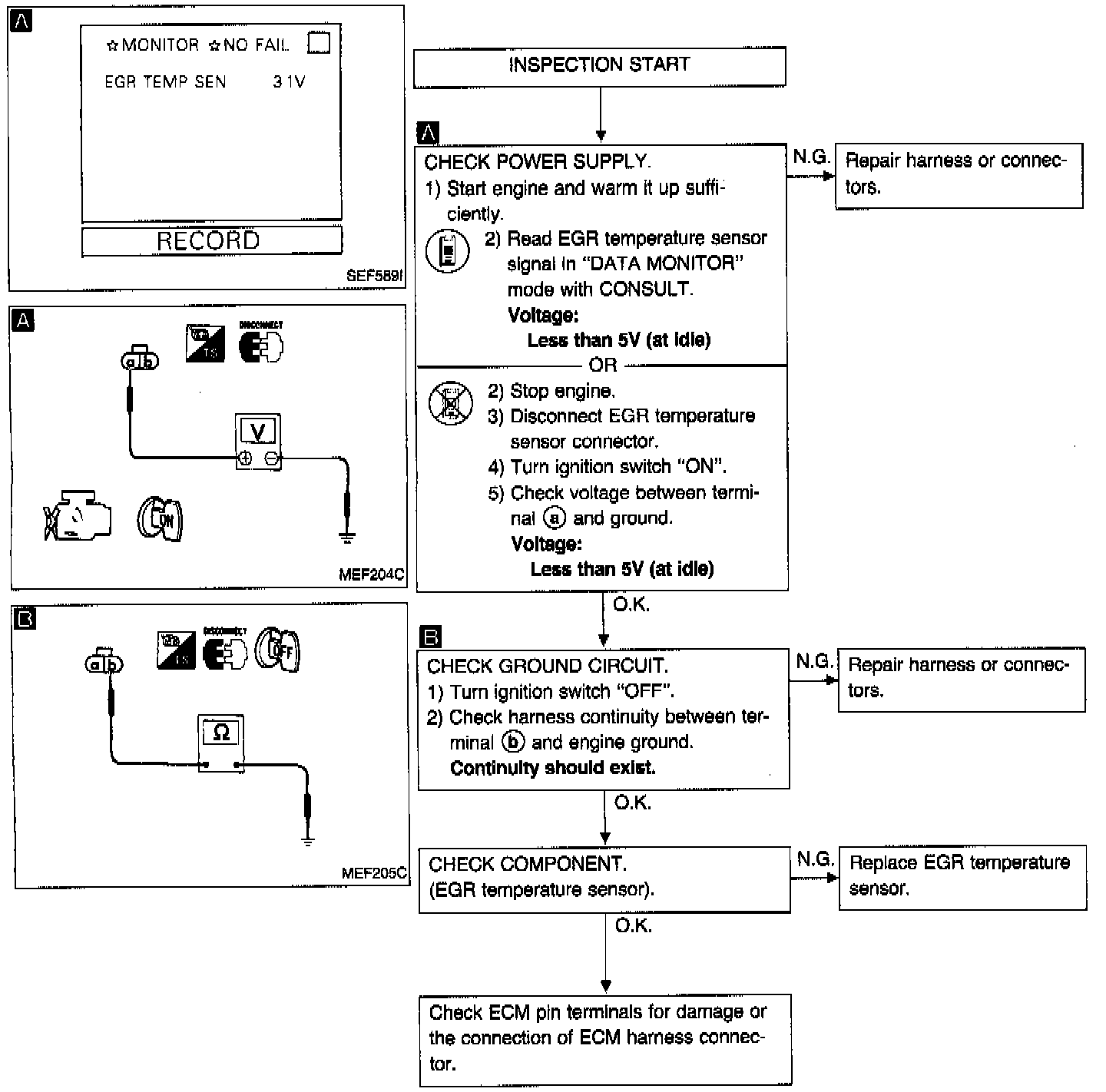

DTC 35 EGR Temperature Sensor Diagnostic Chart:

DIAGNOSTIC CHART

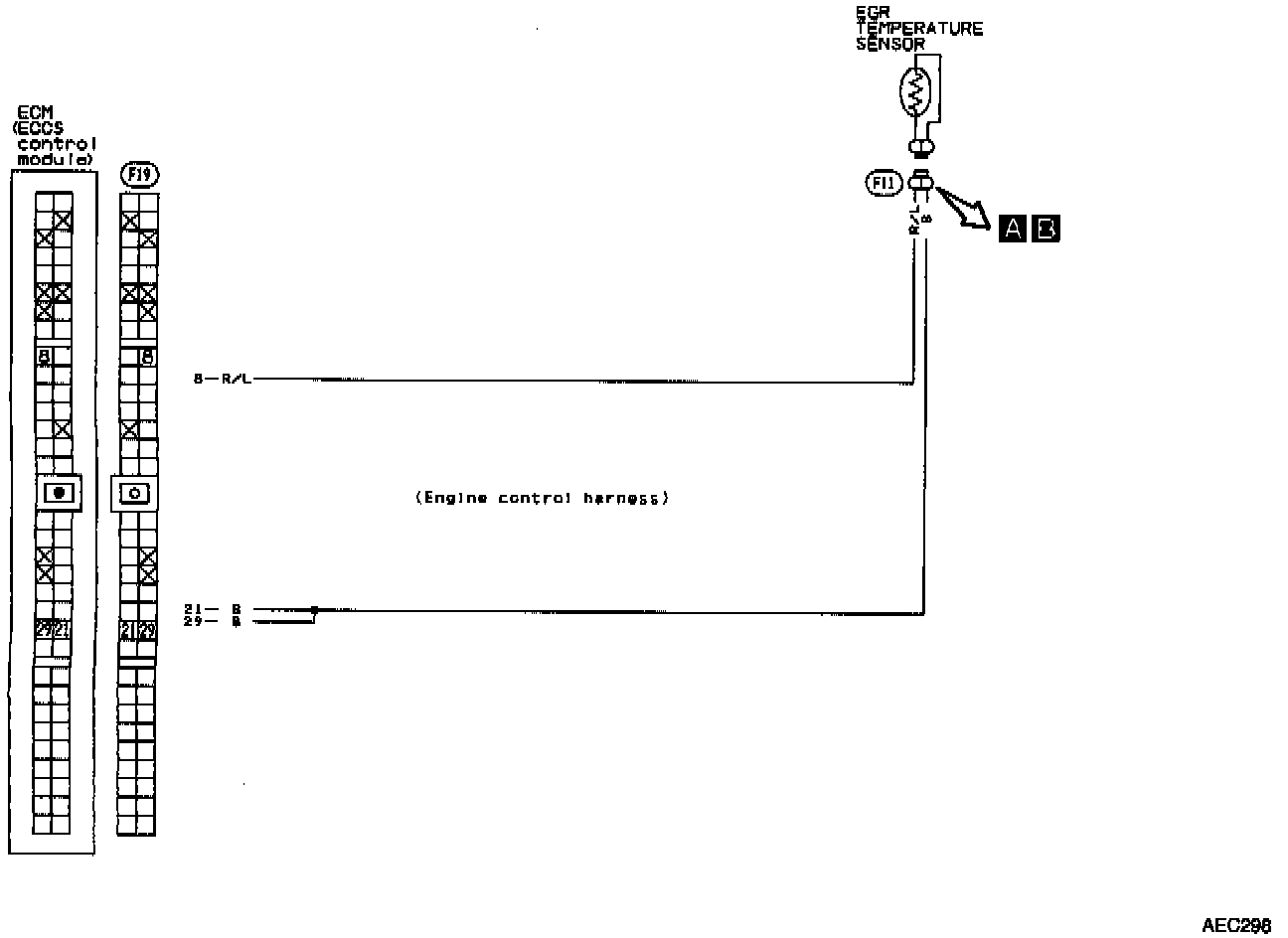

EGR Temperature Sensor Circuit:

CIRCUIT DIAGRAM

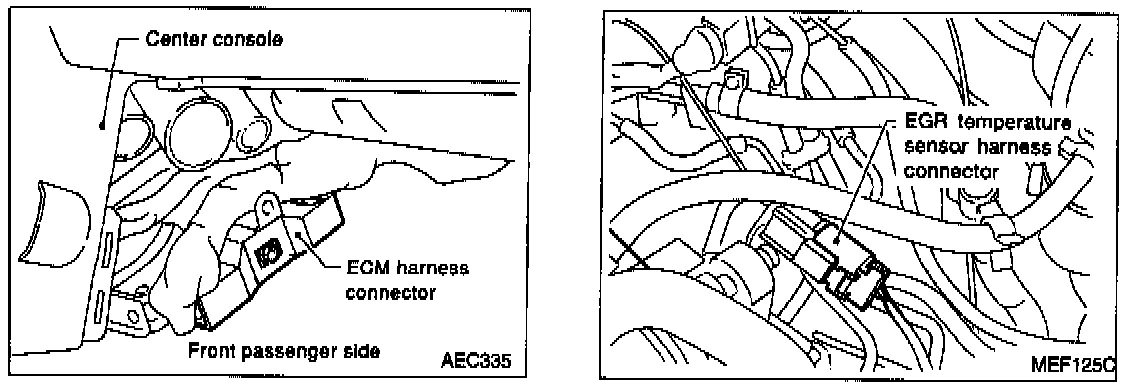

Harness Layout:

HARNESS LAYOUT

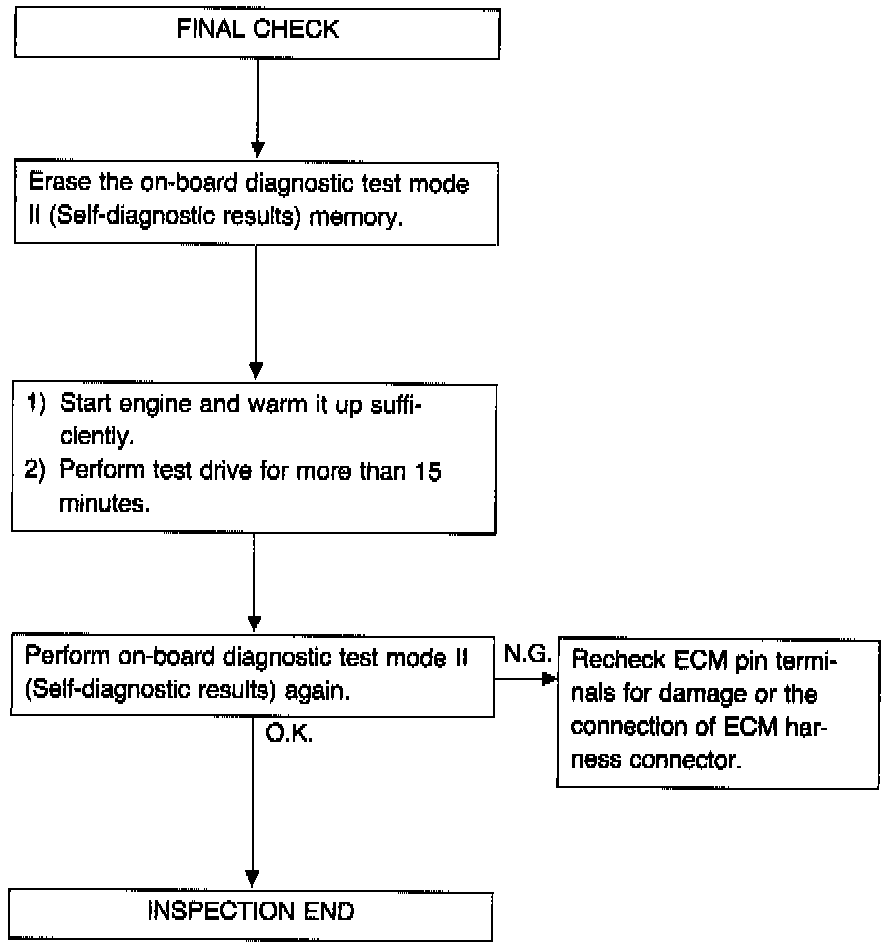

Final Check:

FINAL CHECK
