DTC 43
DTC 43

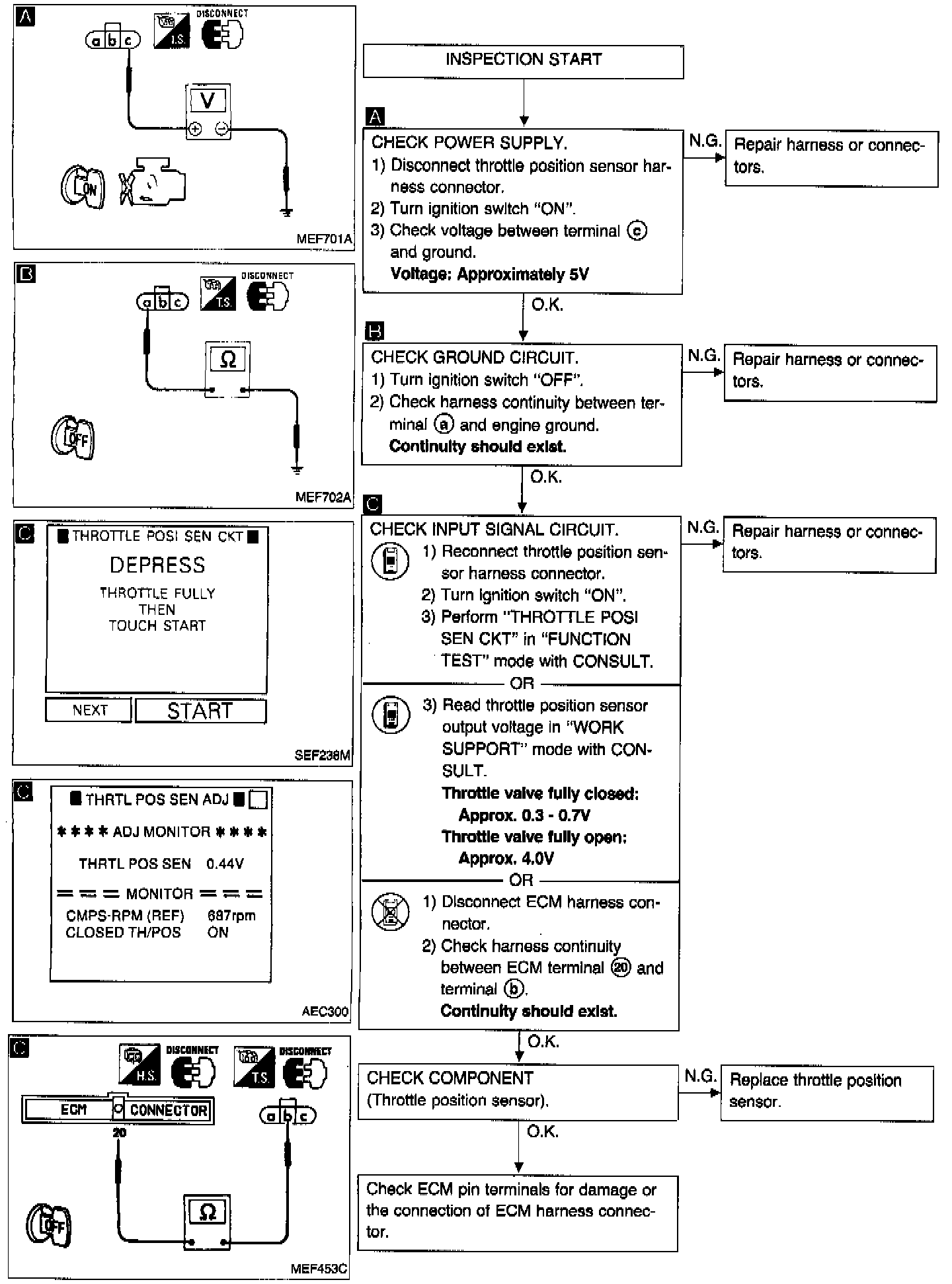

DTC 43 Throttle Sensor Diagnostic Chart:
DIAGNOSTIC CHART

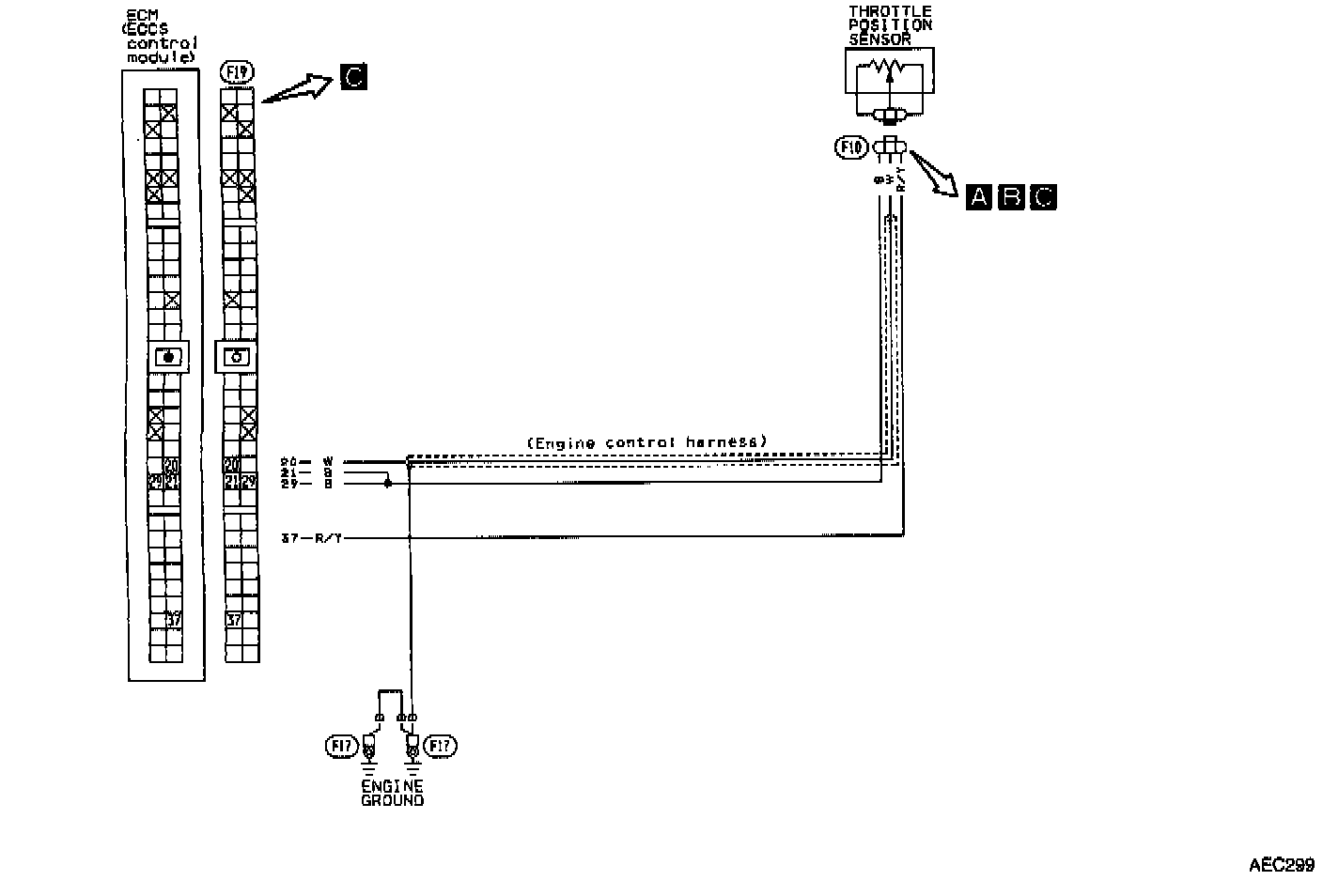

Throttle Position Sensor Circuit:
CIRCUIT DIAGRAM

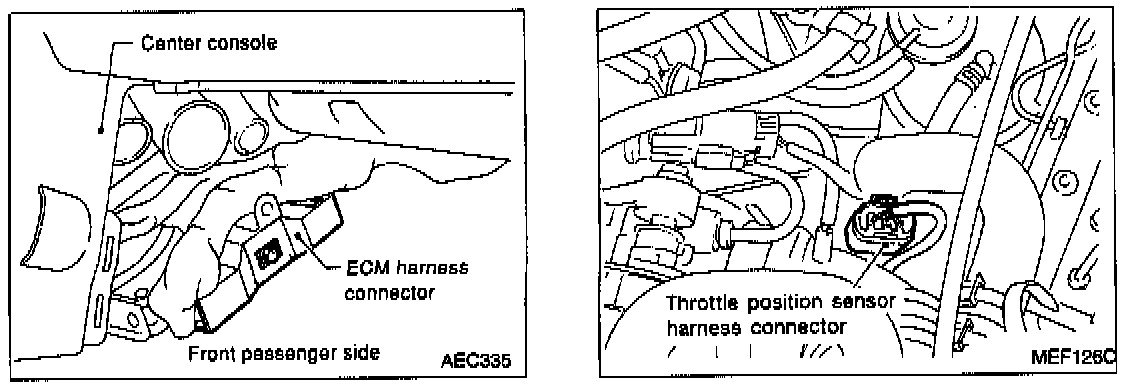

Harness Layout:
HARNESS LAYOUT

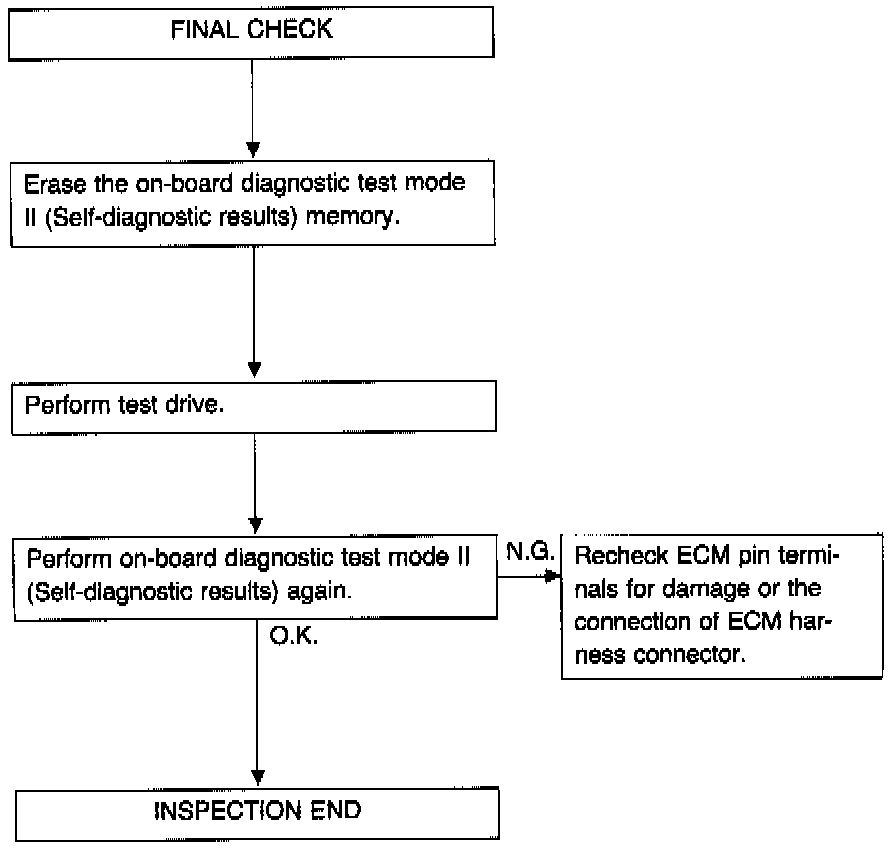

Final Check:
FINAL CHECK
