DTC 45
DTC 45
DTC 45 Injector Leak Diagnostic Chart:
DTC 45 Injector Leak Diagnostic Chart:

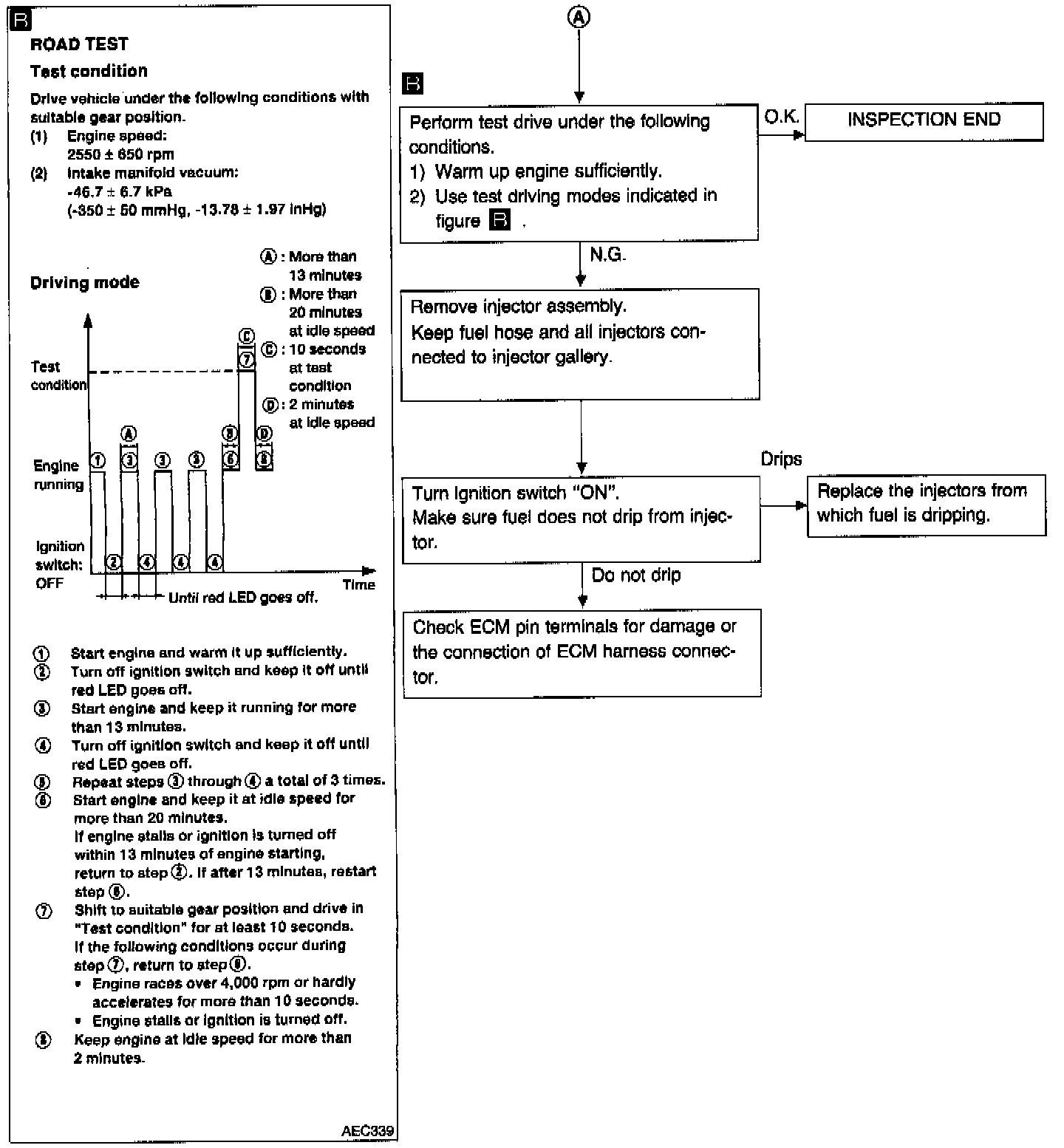

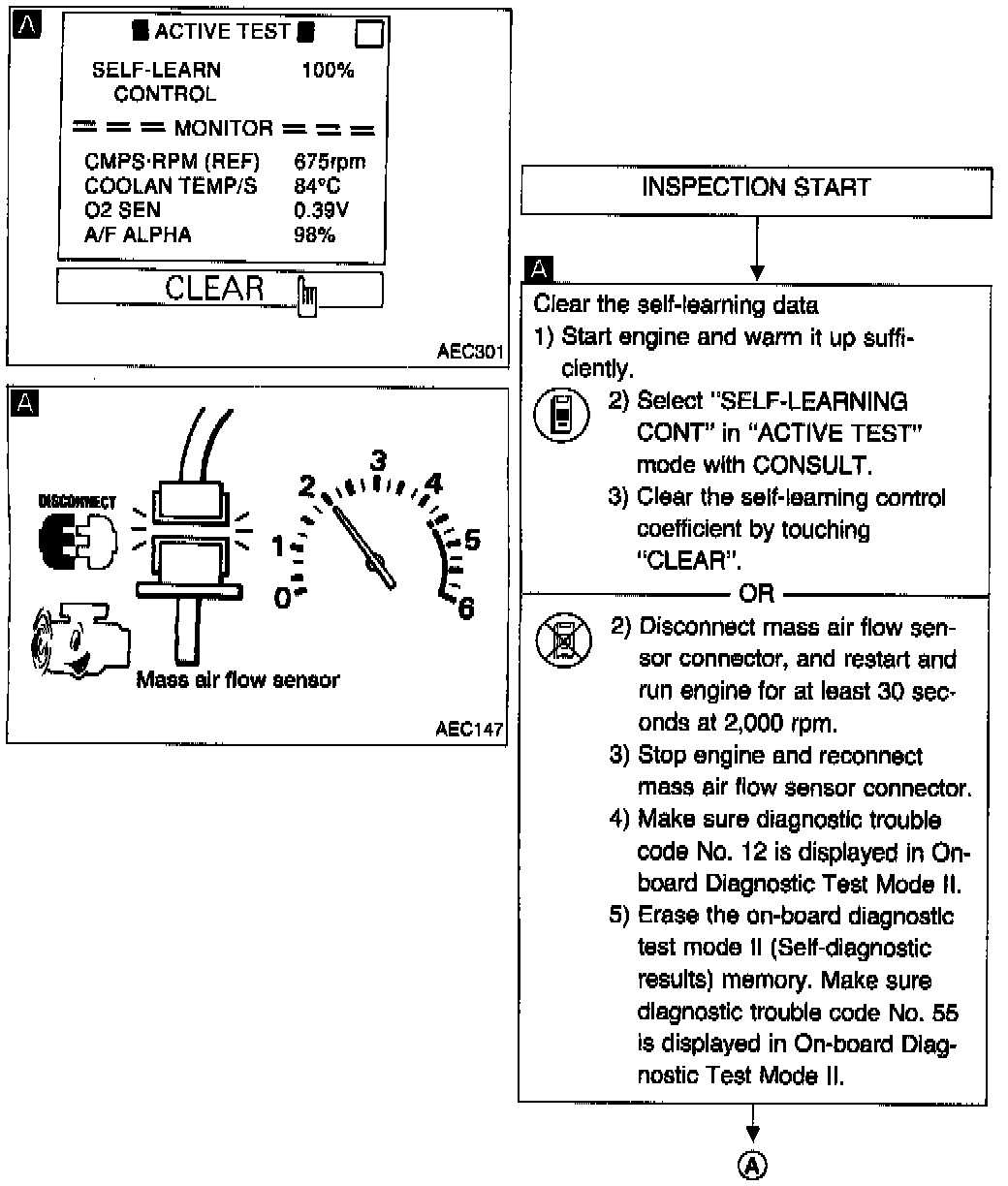

DIAGNOSTIC CHART

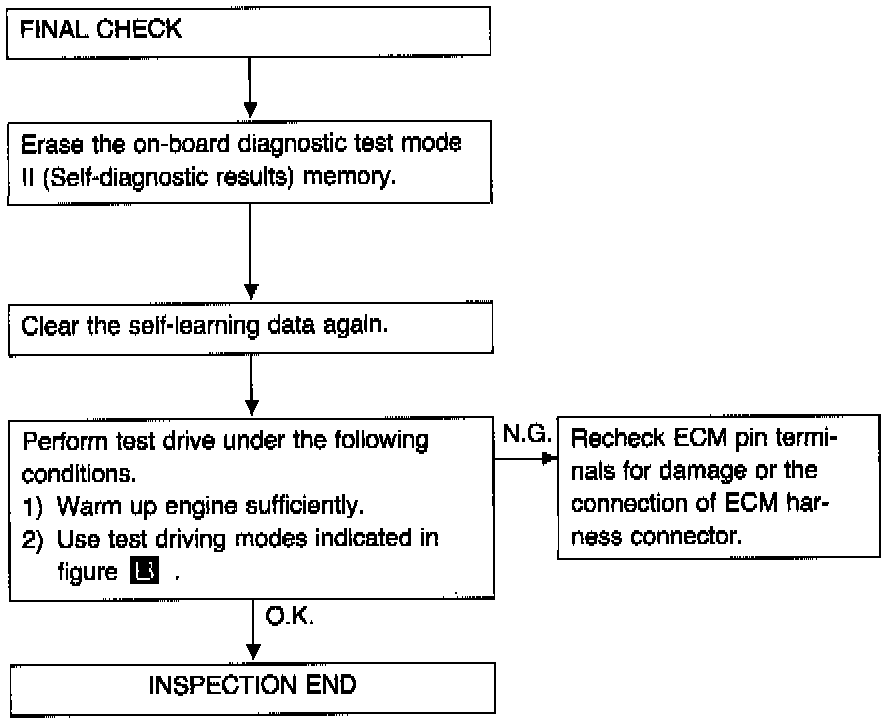

Final Check:
FINAL CHECK
