Diagnostic Test Procedure 4

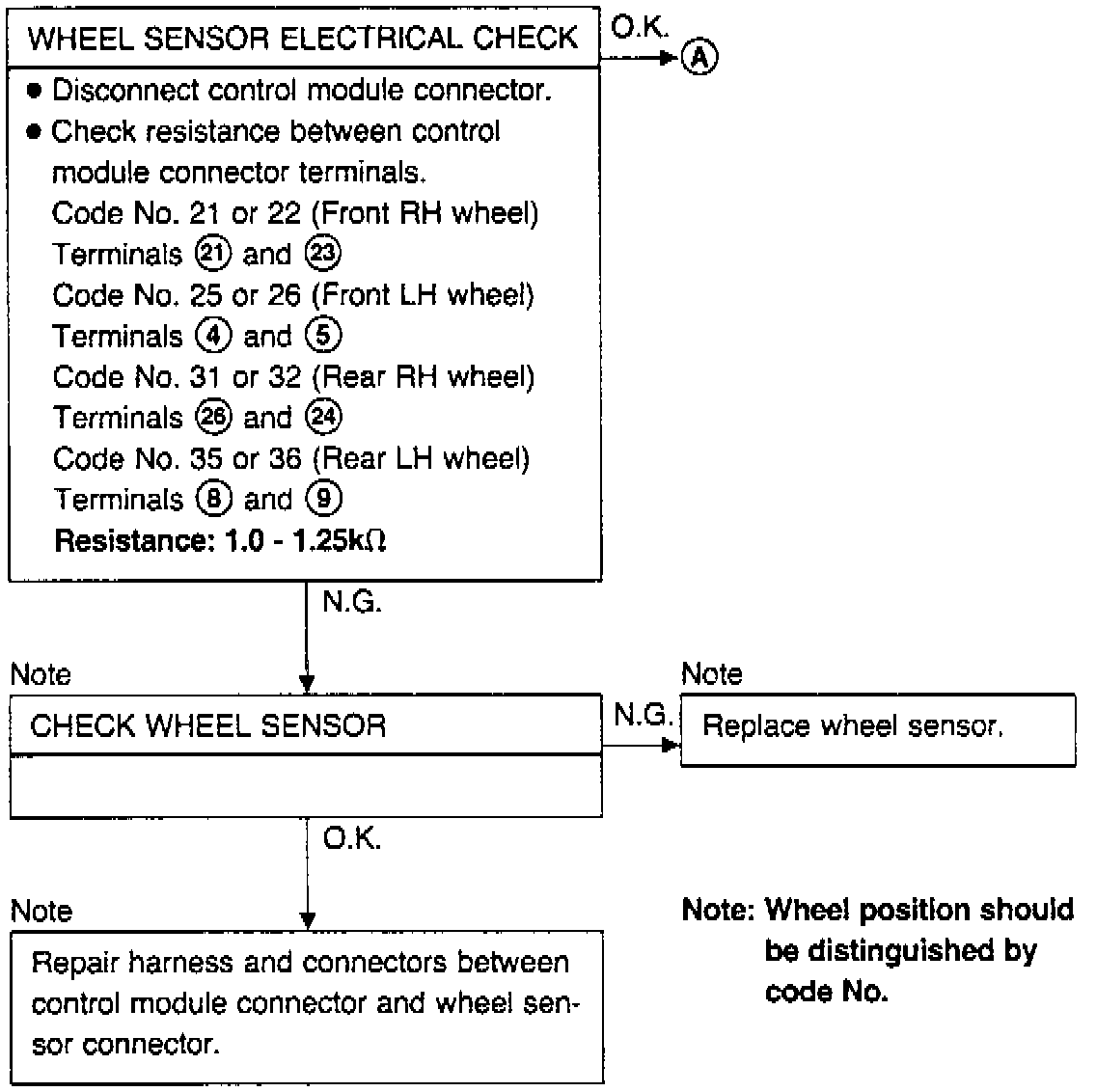

Fig. 54 Test 4: Wheel Sensor Or Rotor (Part 1 Of 2):

PART 1 OF 2

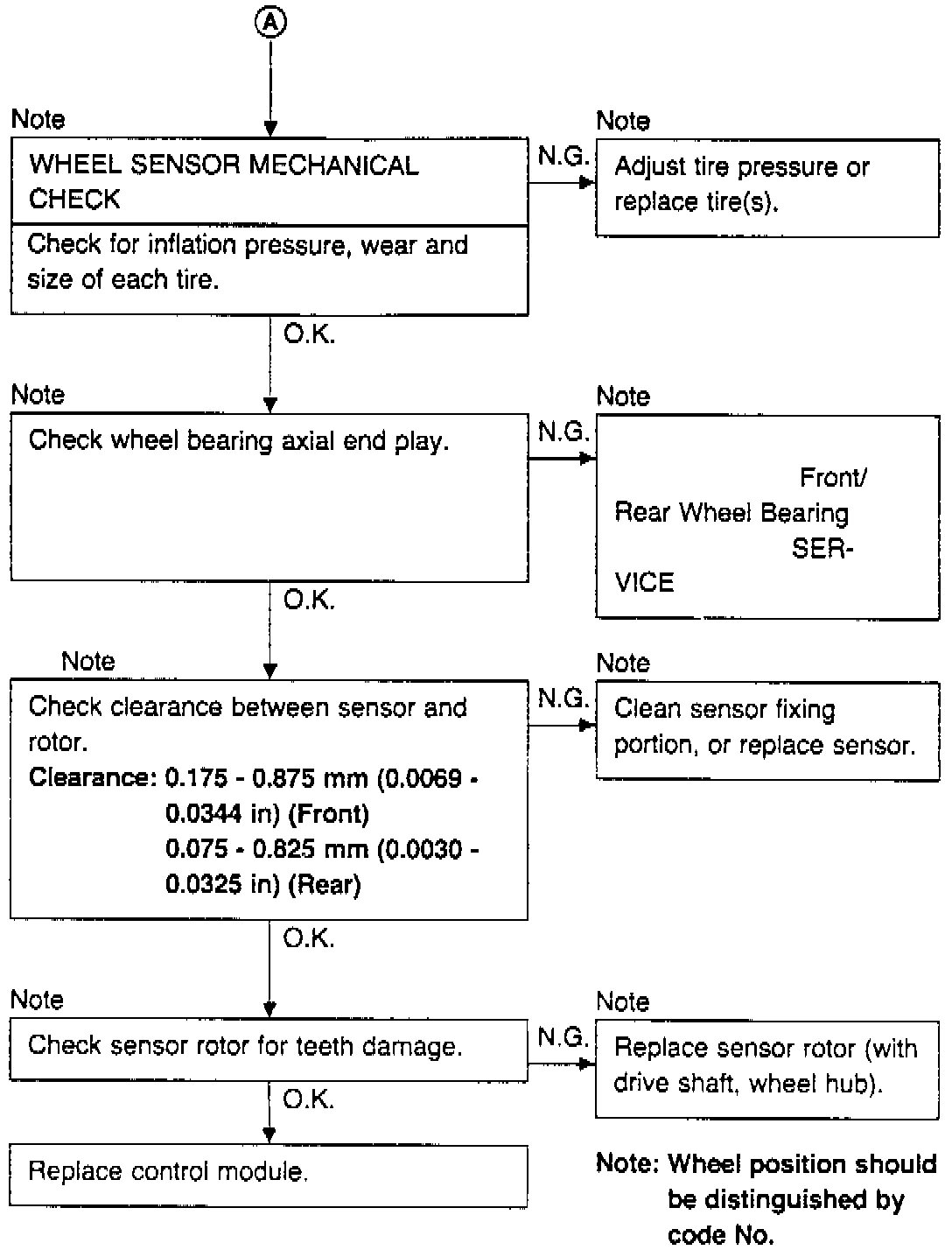

Fig. 54 Test 4: Wheel Sensor Or Rotor (Part 2 Of 2):

PART 2 OF 2
