Diagnostic Test Procedure 5

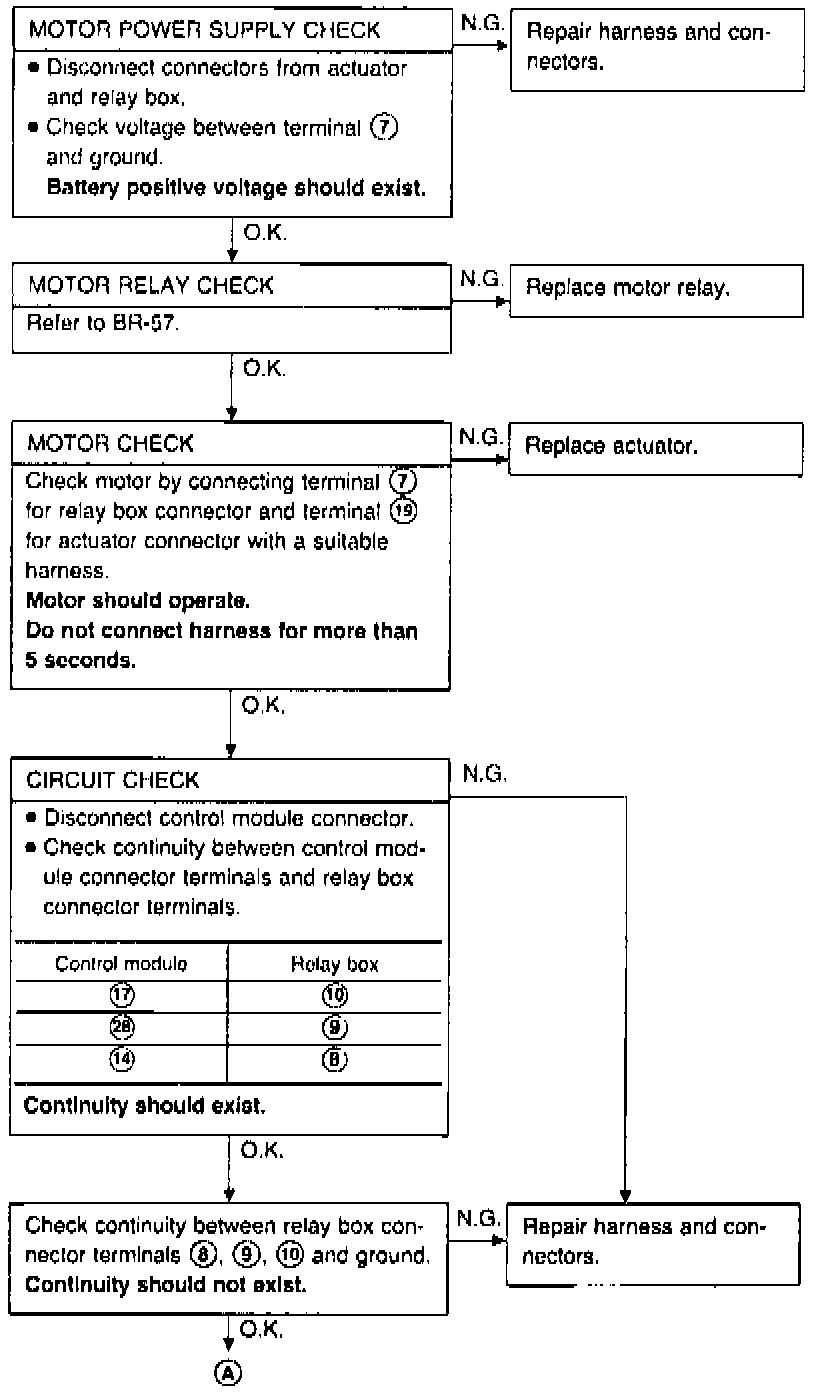

Fig. 55 Test 5: Motor Relay Or Motor (Part 1 Of 2):




PART 1 OF 2

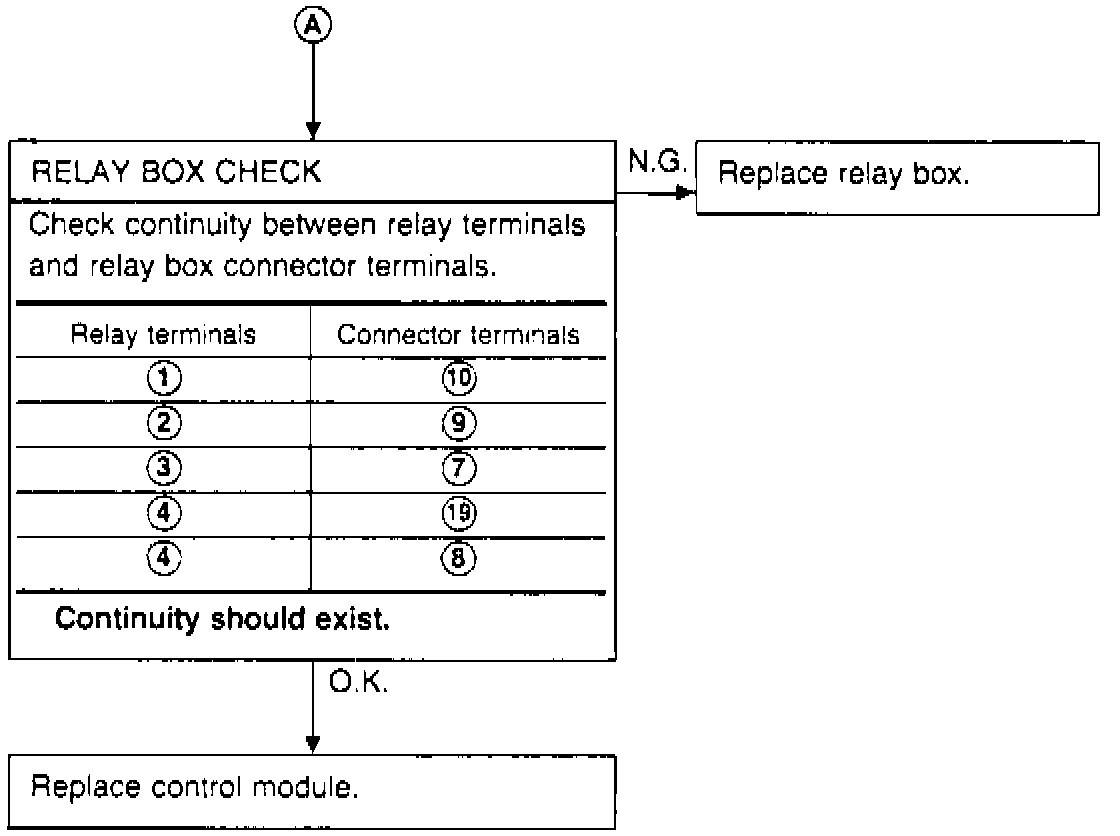

Fig. 55 Test 5: Motor Relay Or Motor (Part 2 Of 2):




PART 2 OF 2
