ASCD Main Switch

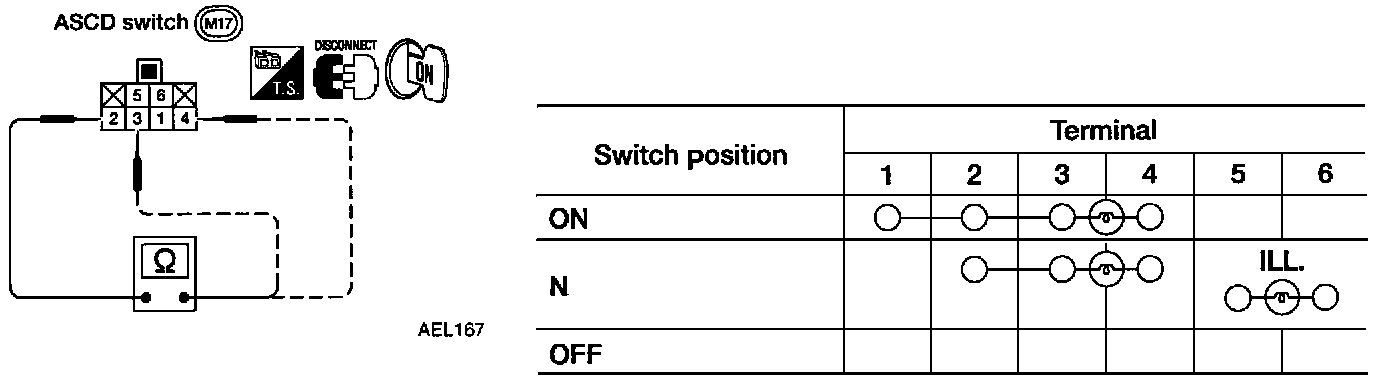

ASCD Main Switch:





Check continuity between terminals by pushing switch to each position.
