Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Combination Meter
>>
Without Head-Up Display
Without Head-Up Display

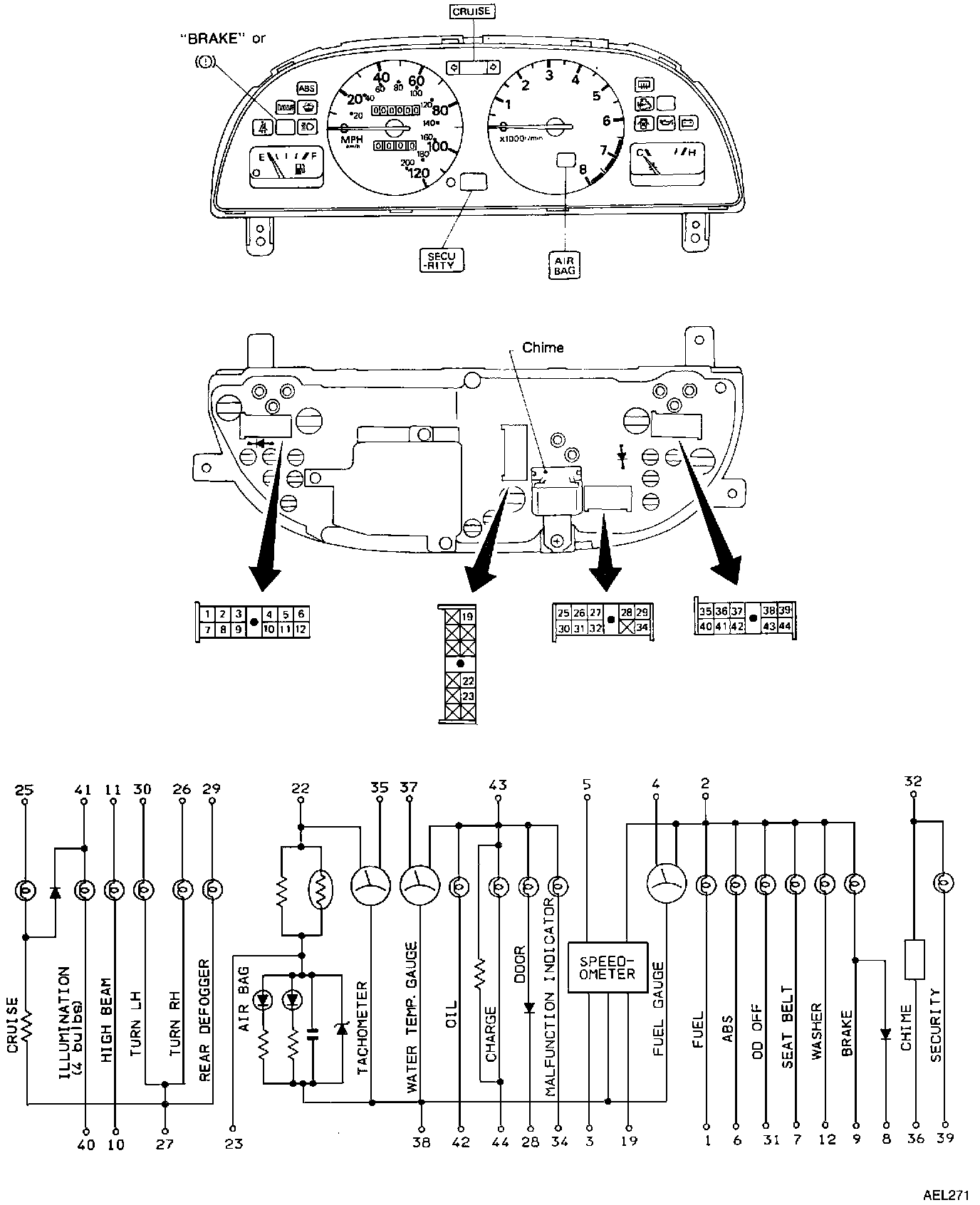

Combination Meter: Without Head-Up Display:
