Power Locks
Power Locks

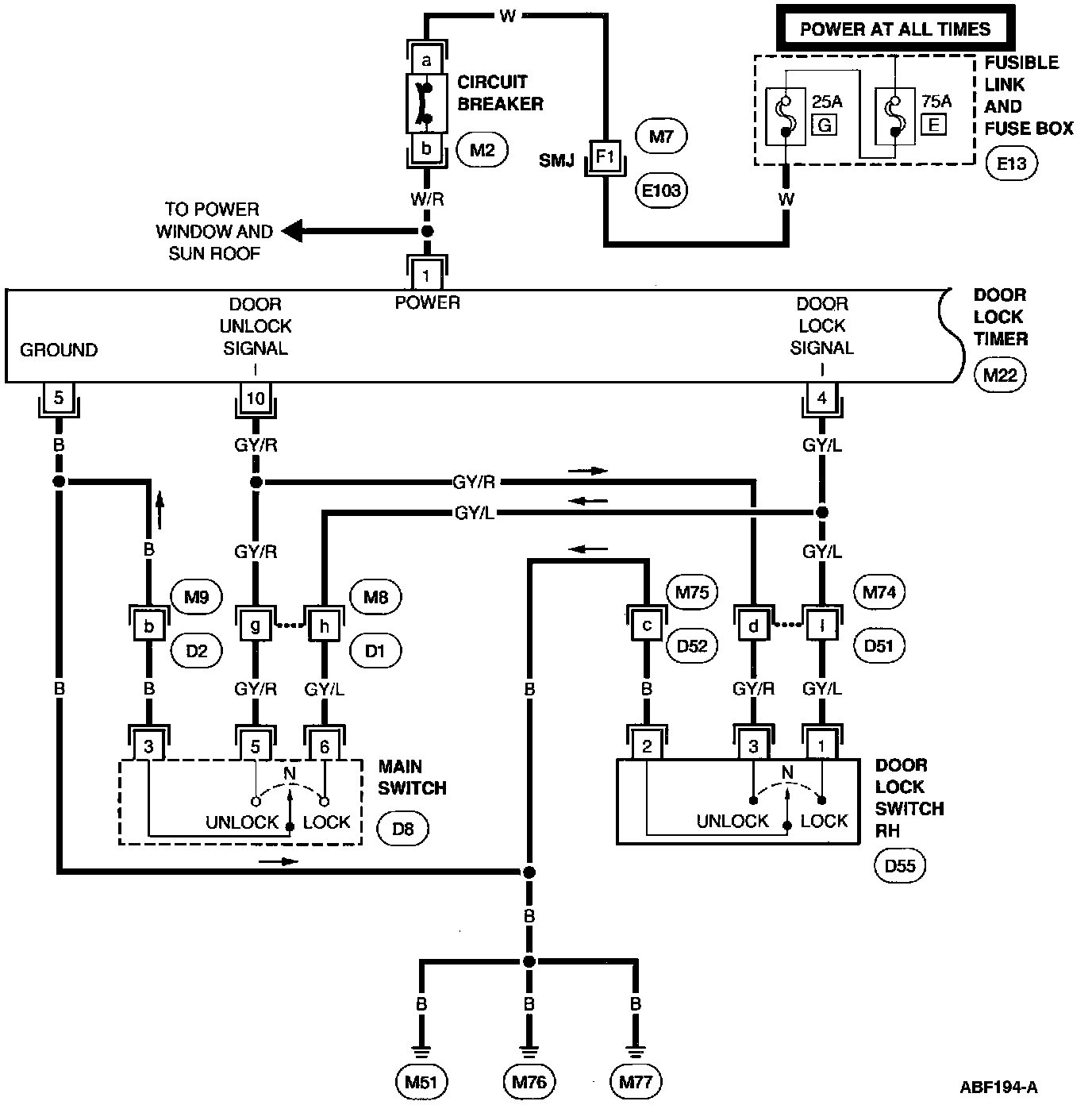

Power Door Lock Wiring Diagram (Part 1 Of 2):

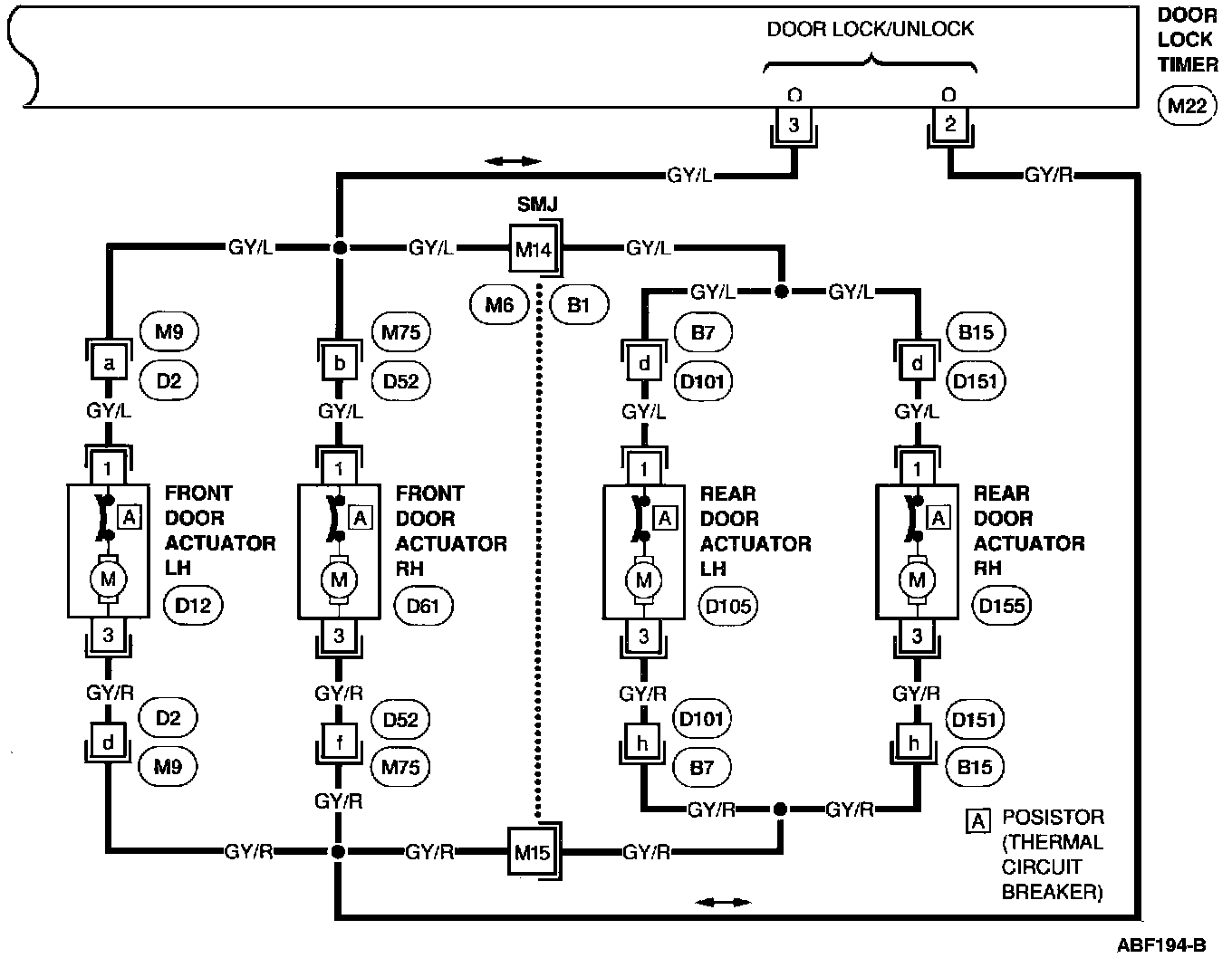

Power Door Lock Wiring Diagram (Part 2 Of 2):
