Timer/Control Unit, Accessory Control

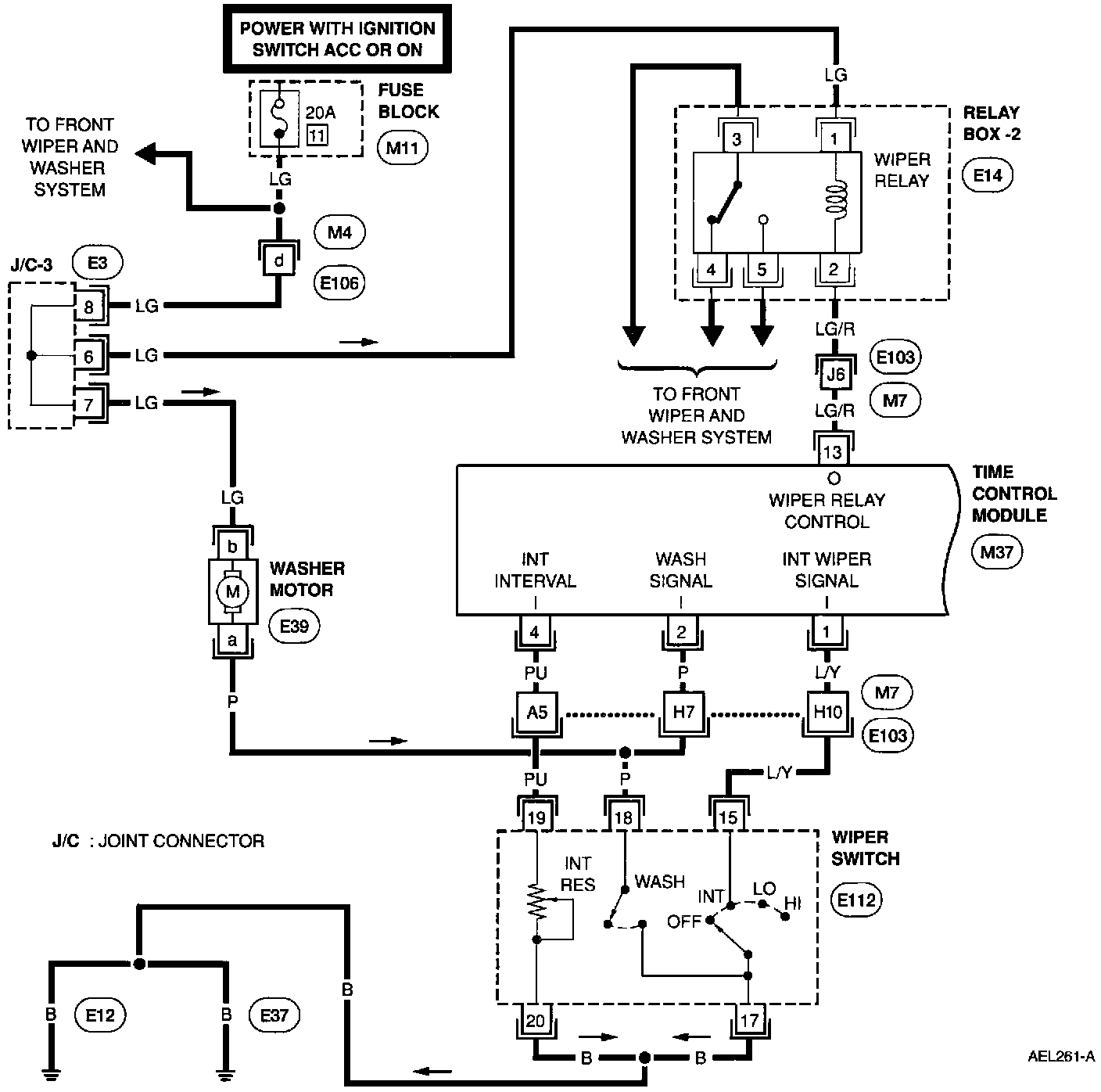

Time Control System Wiring Diagram (Part 1 Of 4):

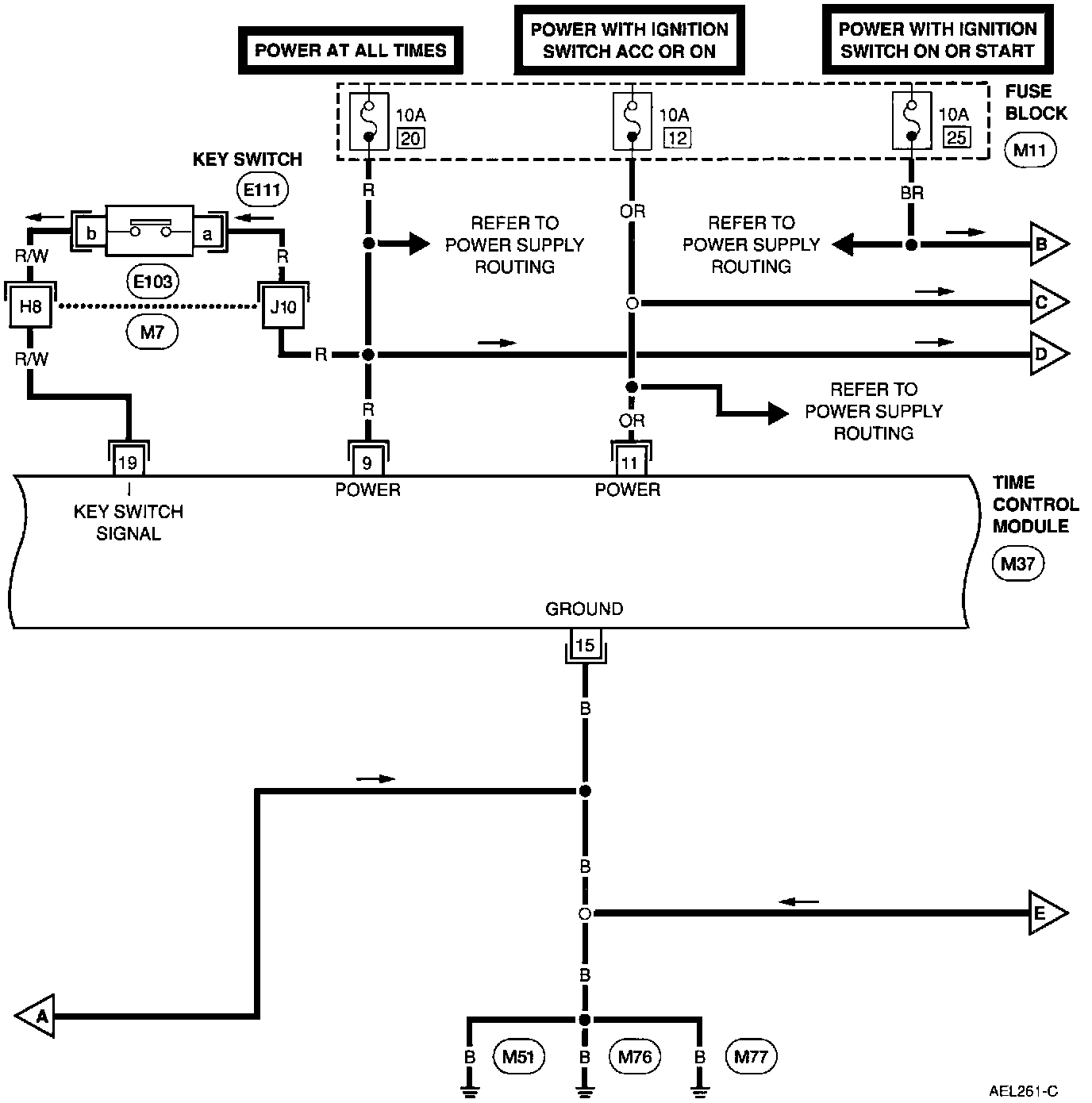

Time Control System Wiring Diagram (Part 2 Of 4):

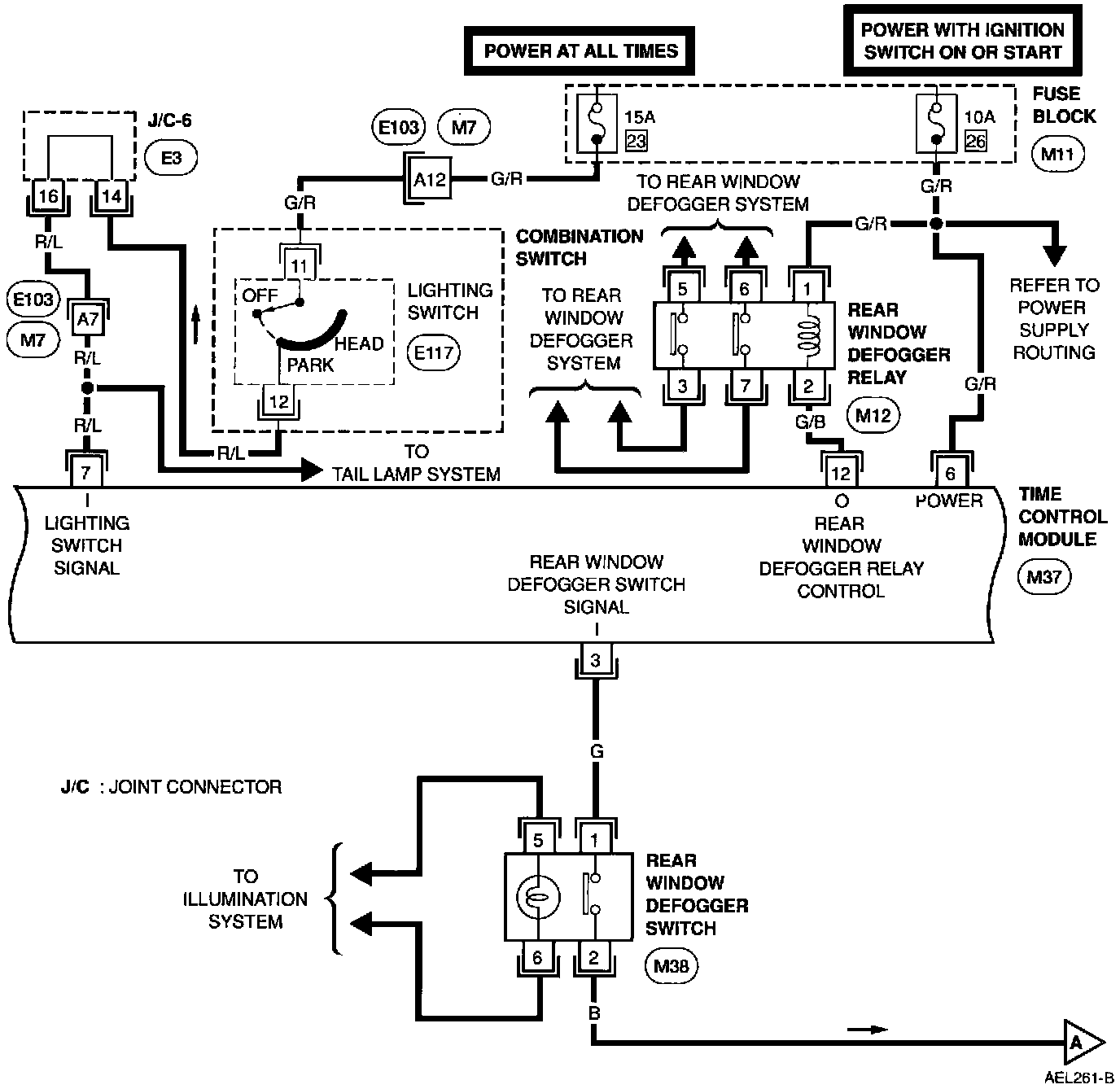

Time Control System Wiring Diagram (Part 3 Of 4):

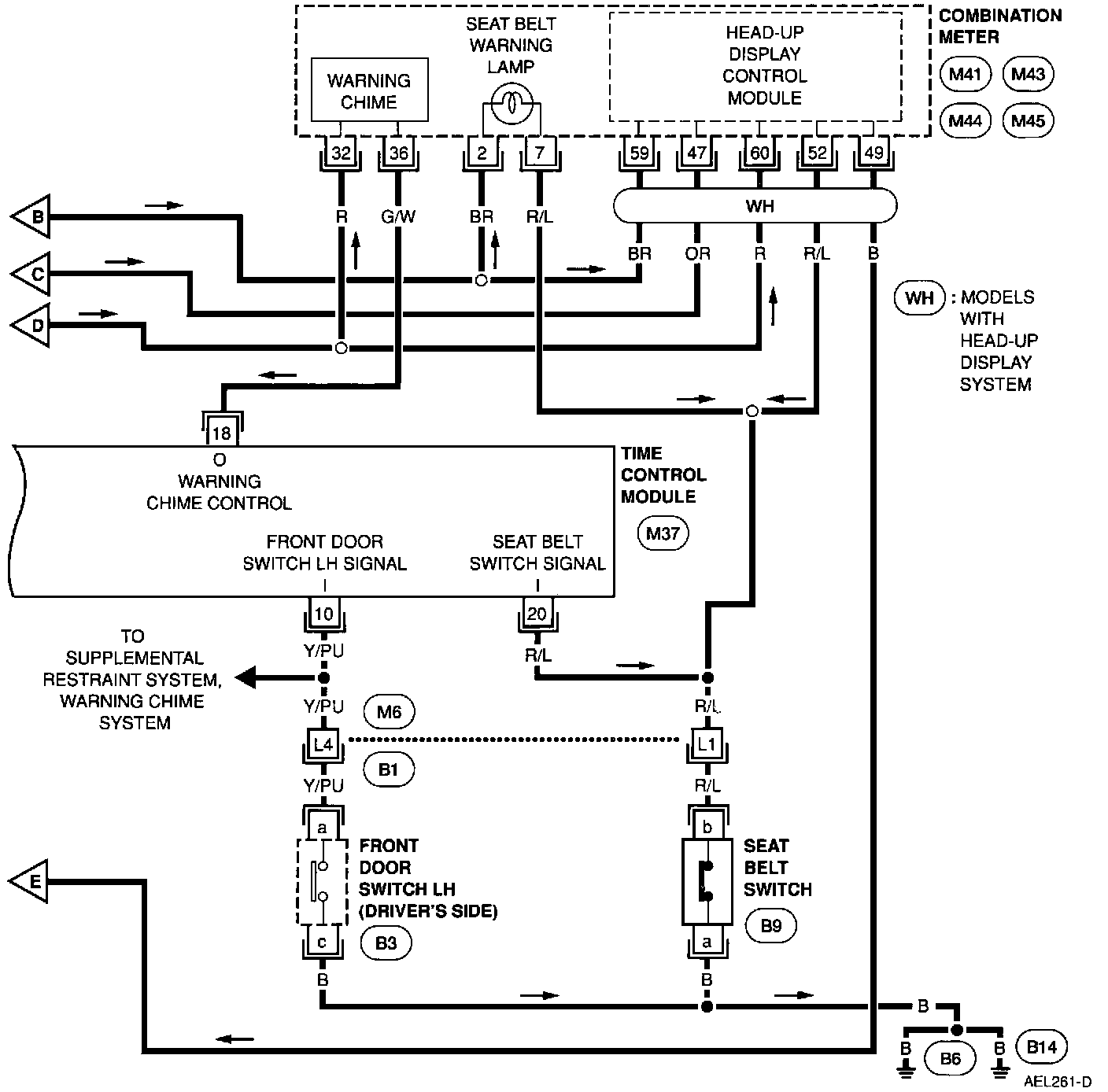

Time Control System Wiring Diagram (Part 4 Of 4):
