Active Speaker System

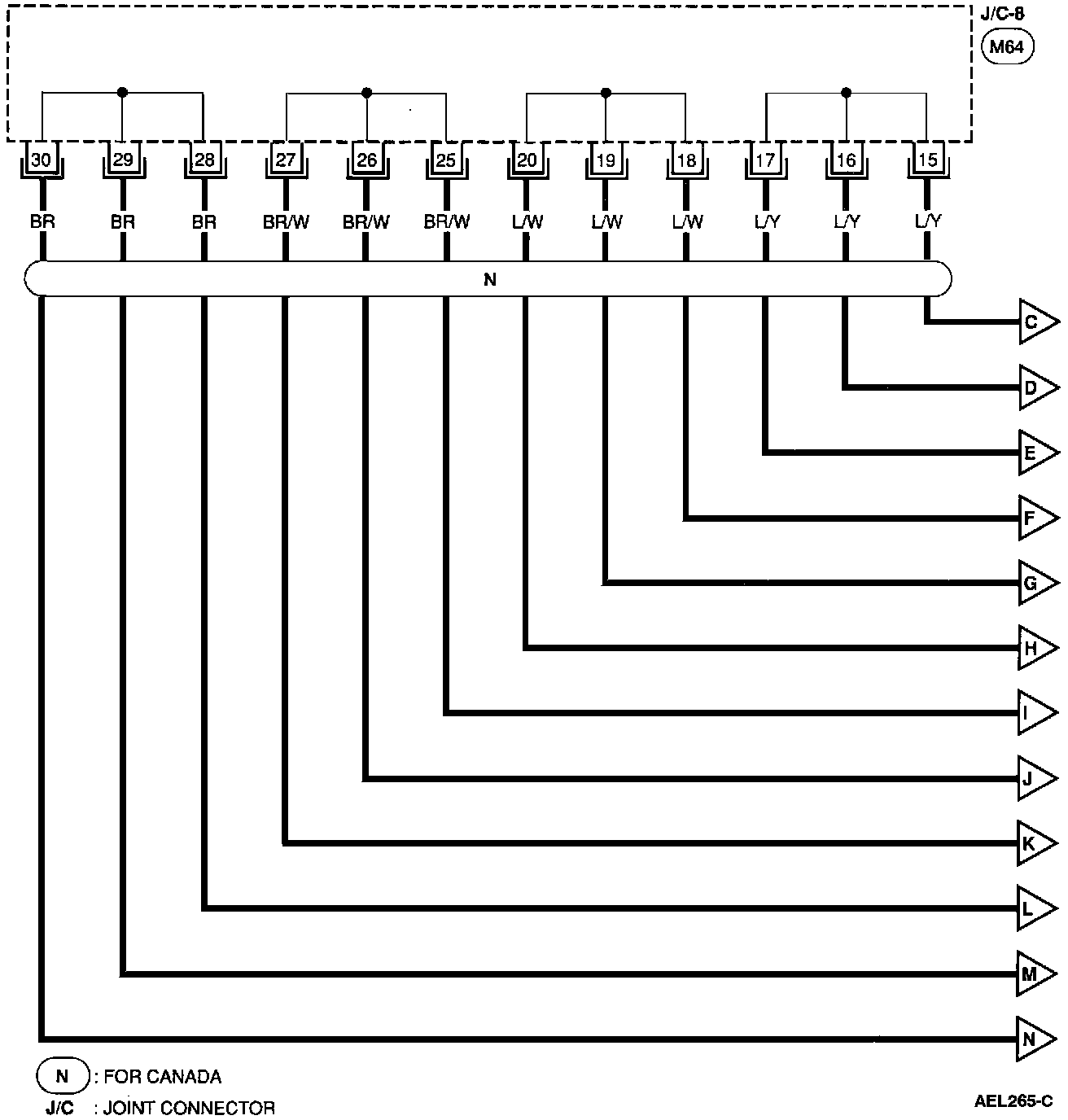

Audio Wiring Diagram: Active Speaker System (Part 1 Of 5):

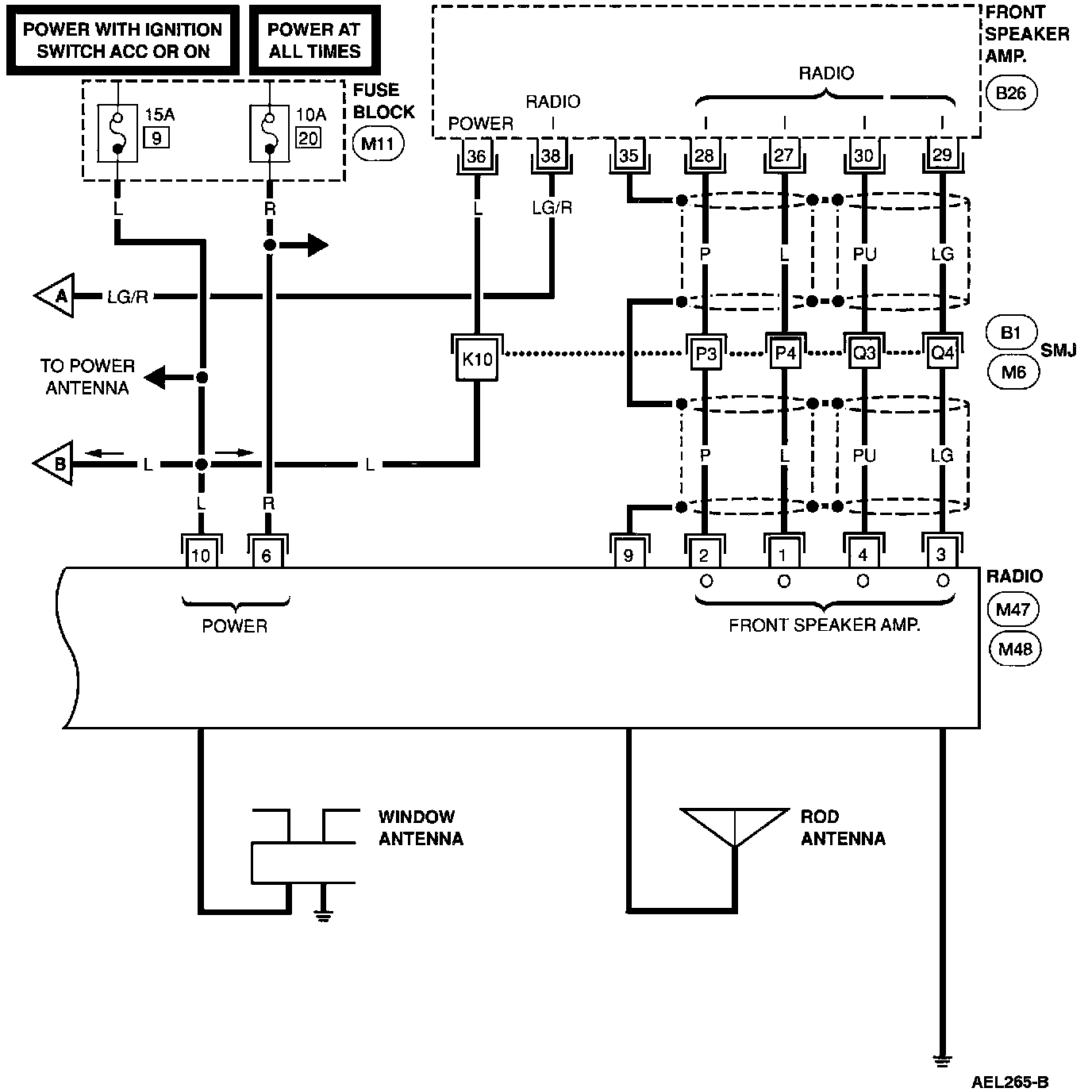

Audio Wiring Diagram: Active Speaker System (Part 2 Of 5):

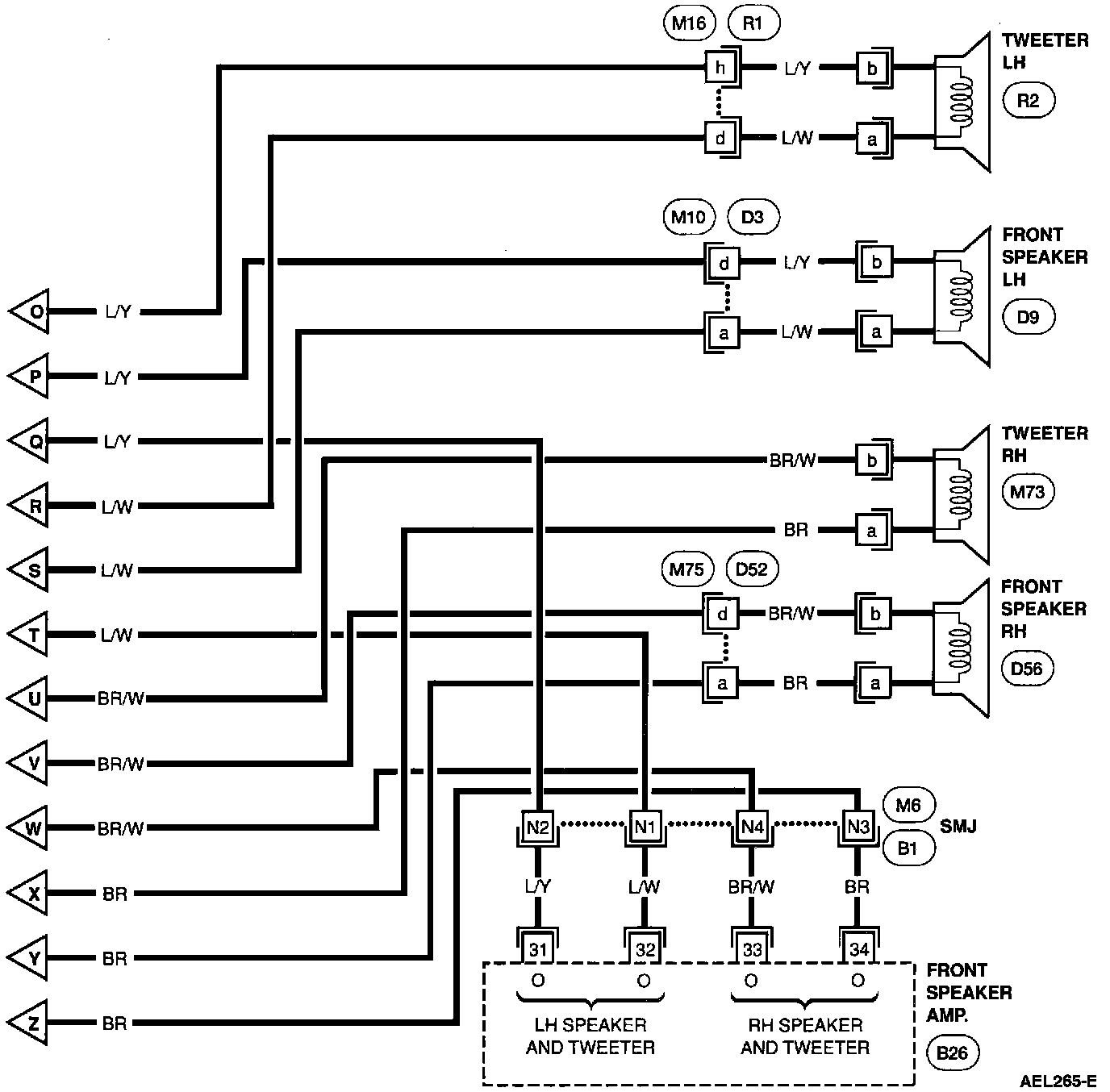

Audio Wiring Diagram: Active Speaker System (Part 3 Of 5):

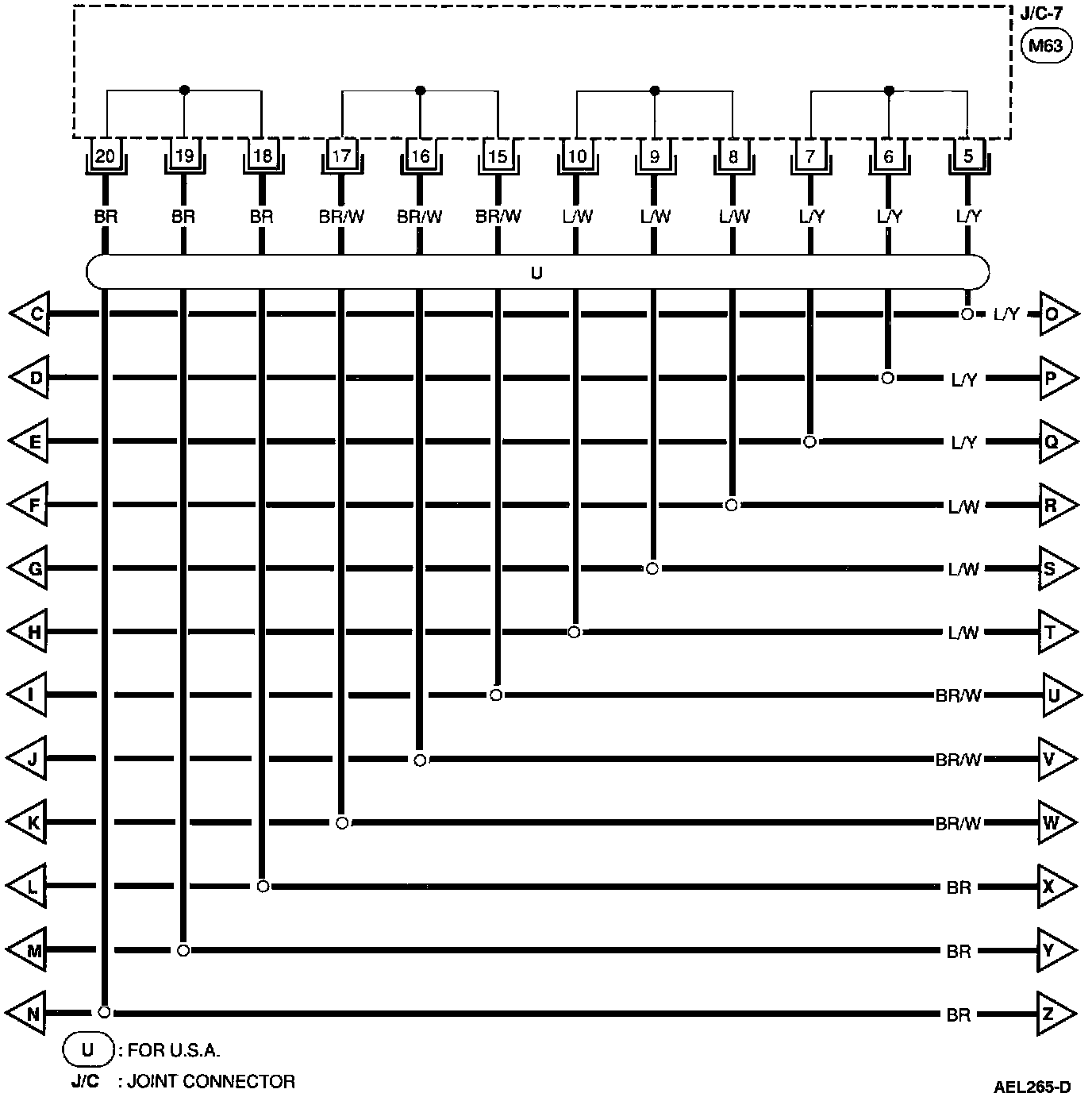

Audio Wiring Diagram: Active Speaker System (Part 4 Of 5):

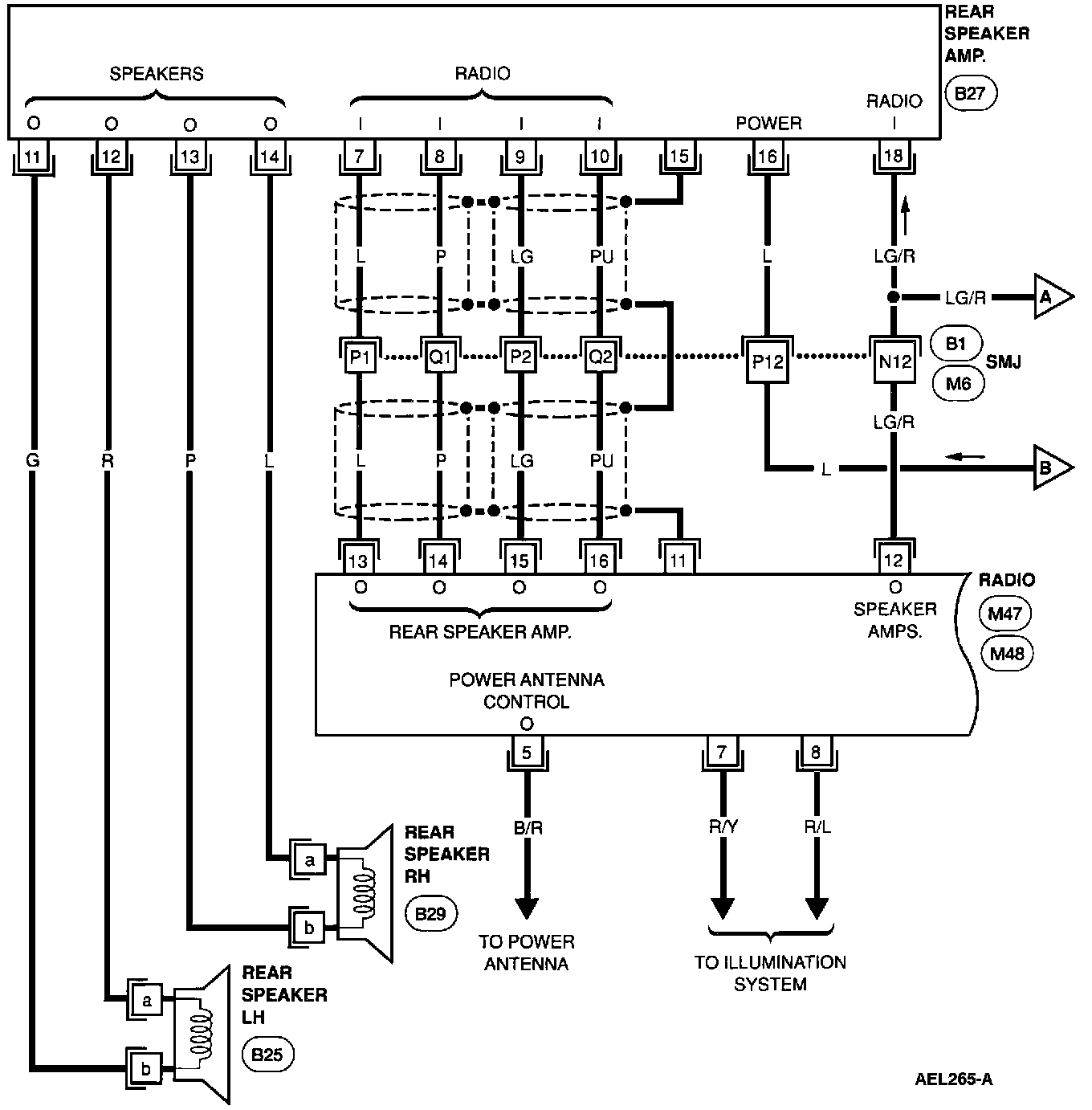

Audio Wiring Diagram: Active Speaker System (Part 5 Of 5):
