Radiator Cooling Fan: Service and Repair

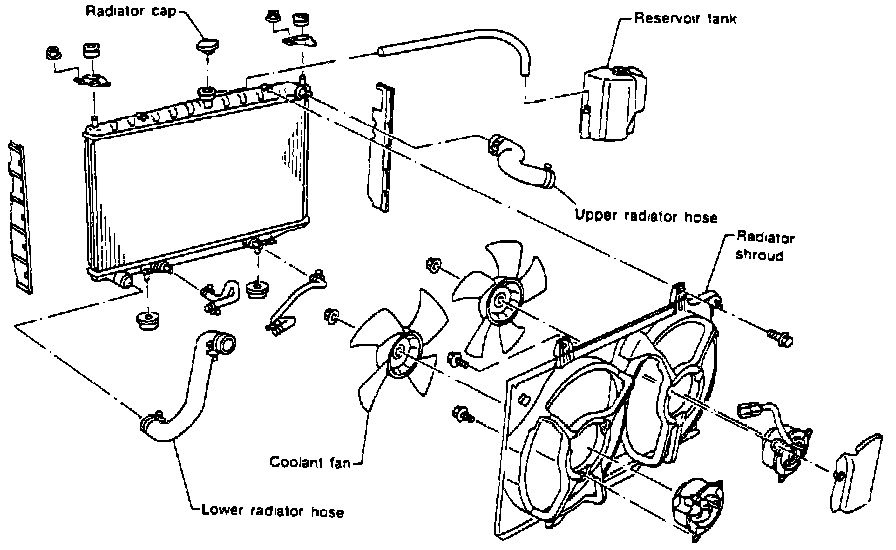

Fig. 33 Replacing Radiator Fan Motor Assembly:






Refer to Fig. 33 for radiator fan motor replacement.
