Radiator: Service and Repair

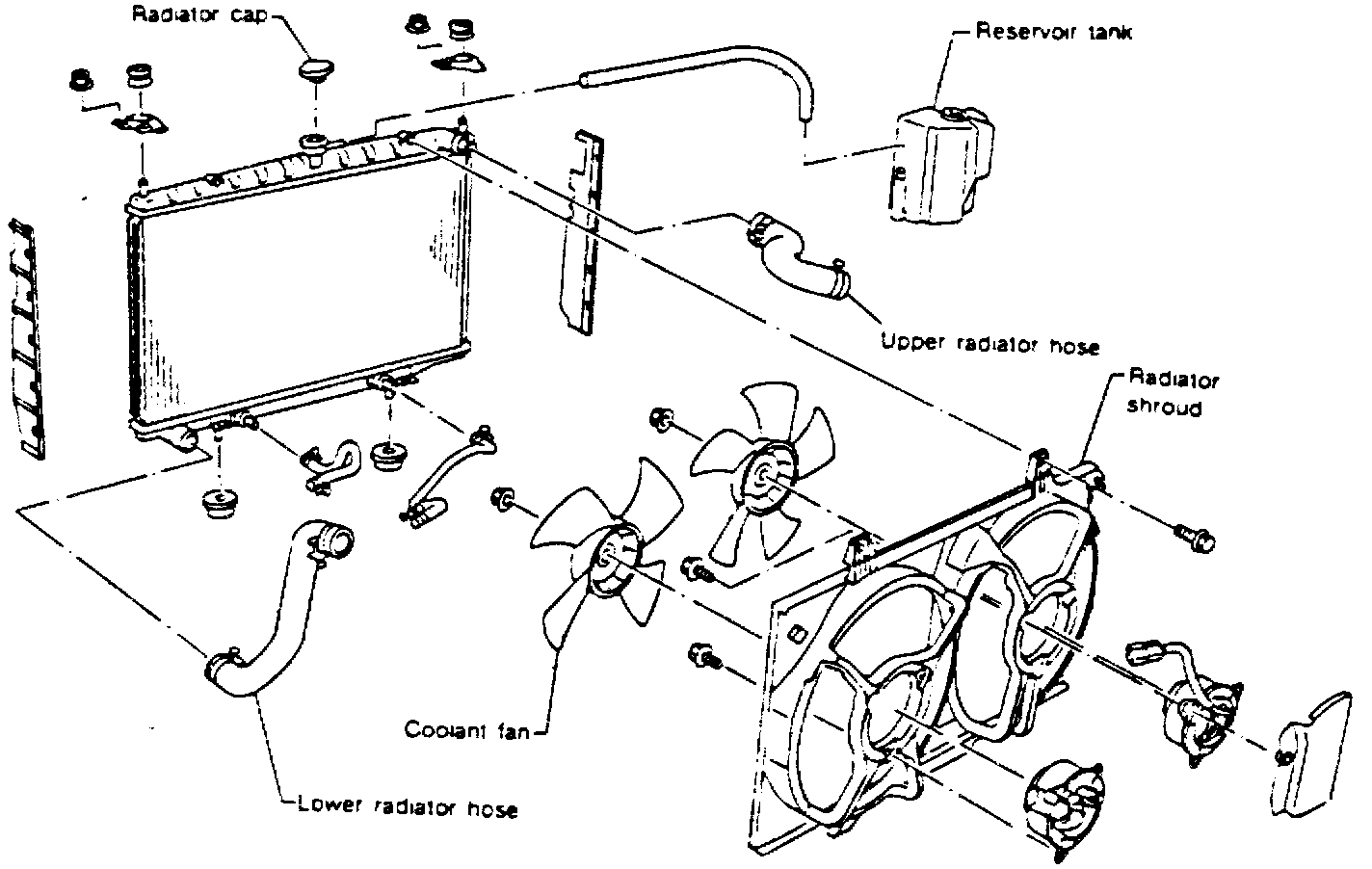

Fig. 3 Radiator Replacement:

1. Disconnect battery ground cable and drain coolant.
2. Disconnect radiator upper and lower hoses, Fig. 3.
3. On models with automatic transmission, remove automatic transmission oil cooler lines.
4. Remove radiator shroud.
5. Disconnect reservoir tank hose.
6. Lift radiator out of vehicle carefully to avoid damage.
7. Reverse procedure to install.
