Engine Mount: Service and Repair

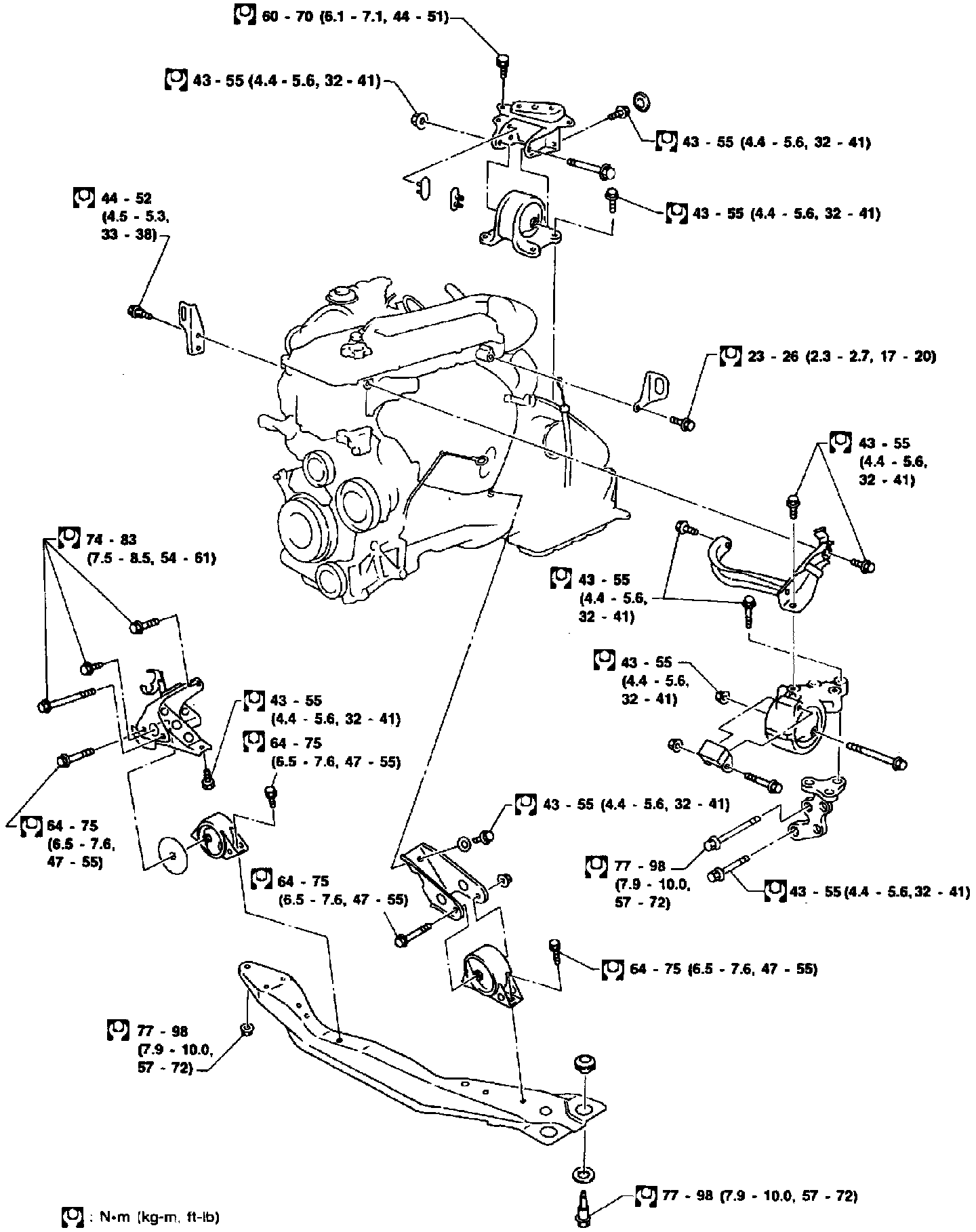

Fig. 1 Engine Mount Replacement:




Refer to Fig. 1 for engine mount replacement.
