Home >> Nissan-Datsun >> 1994 >> Altima L4-2.4L (KA24DE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor Resistor >> Locations

Blower Motor Resistor: Locations

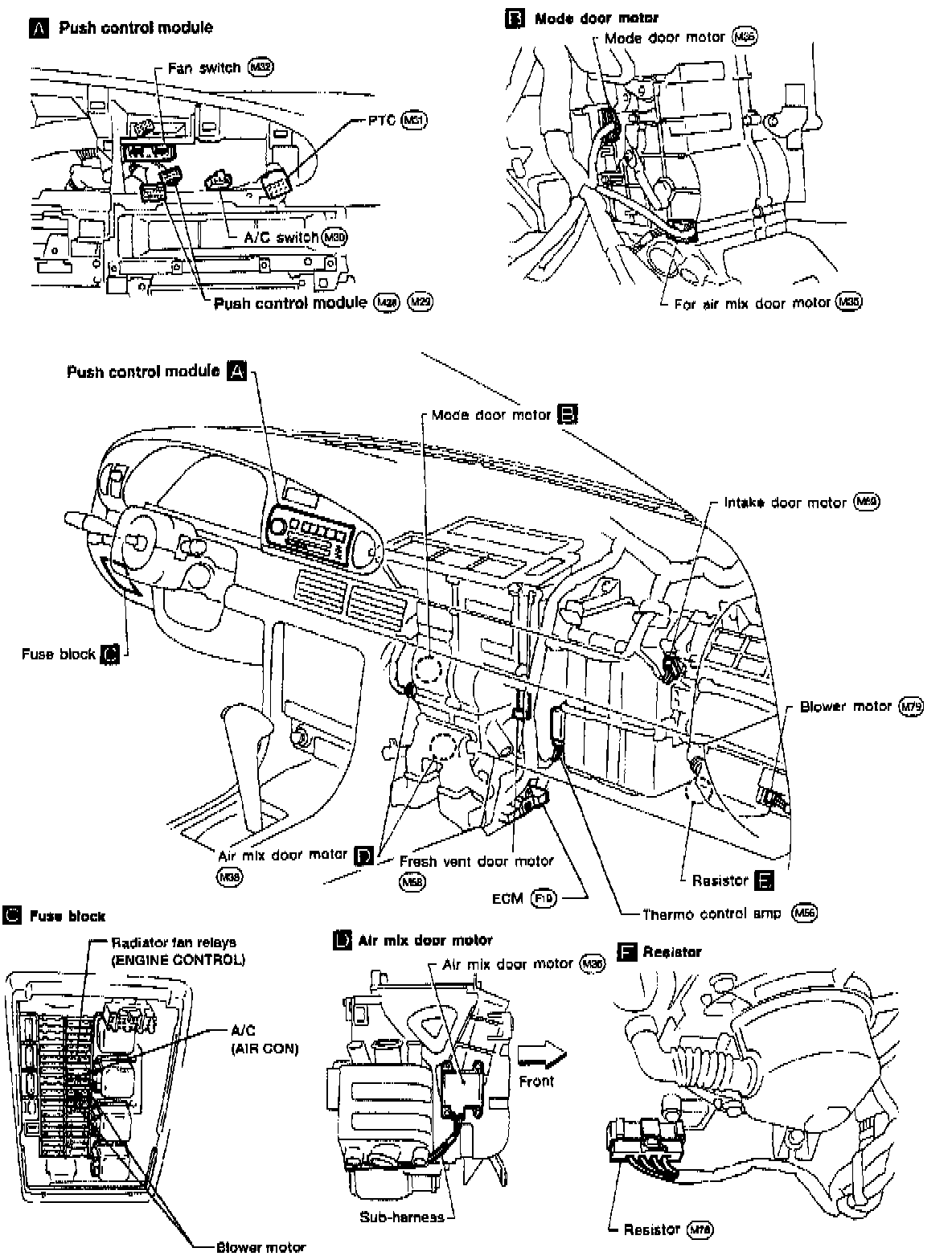

Component Locations (Manual Climate Control):

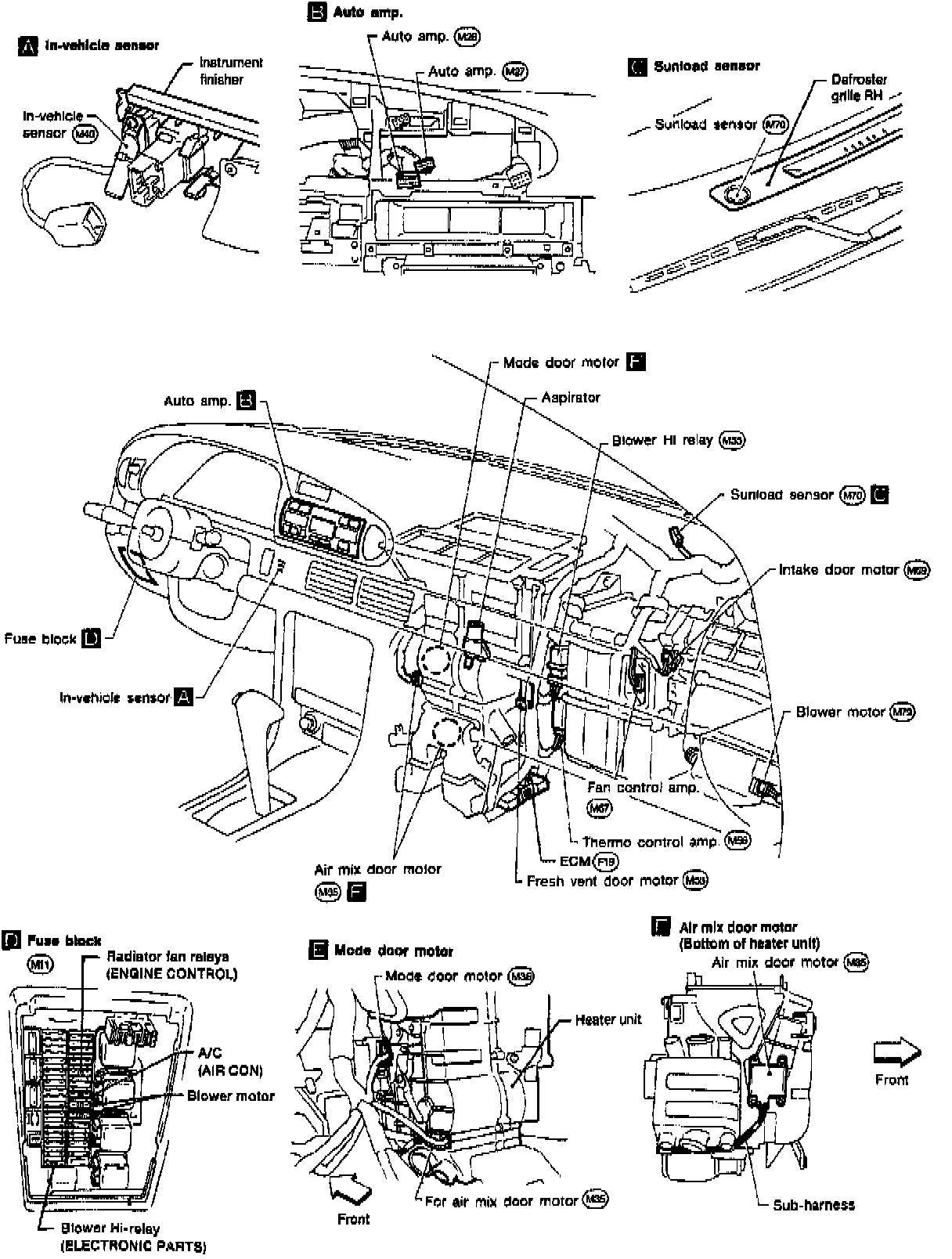

Component Locations (Auto Climate Control):
