Manual Air Conditioning

Heating And Air Conditioning Wiring Diagram (Part 1 Of 7): Manual:

Heating And Air Conditioning Wiring Diagram (Part 2 Of 7): Manual:

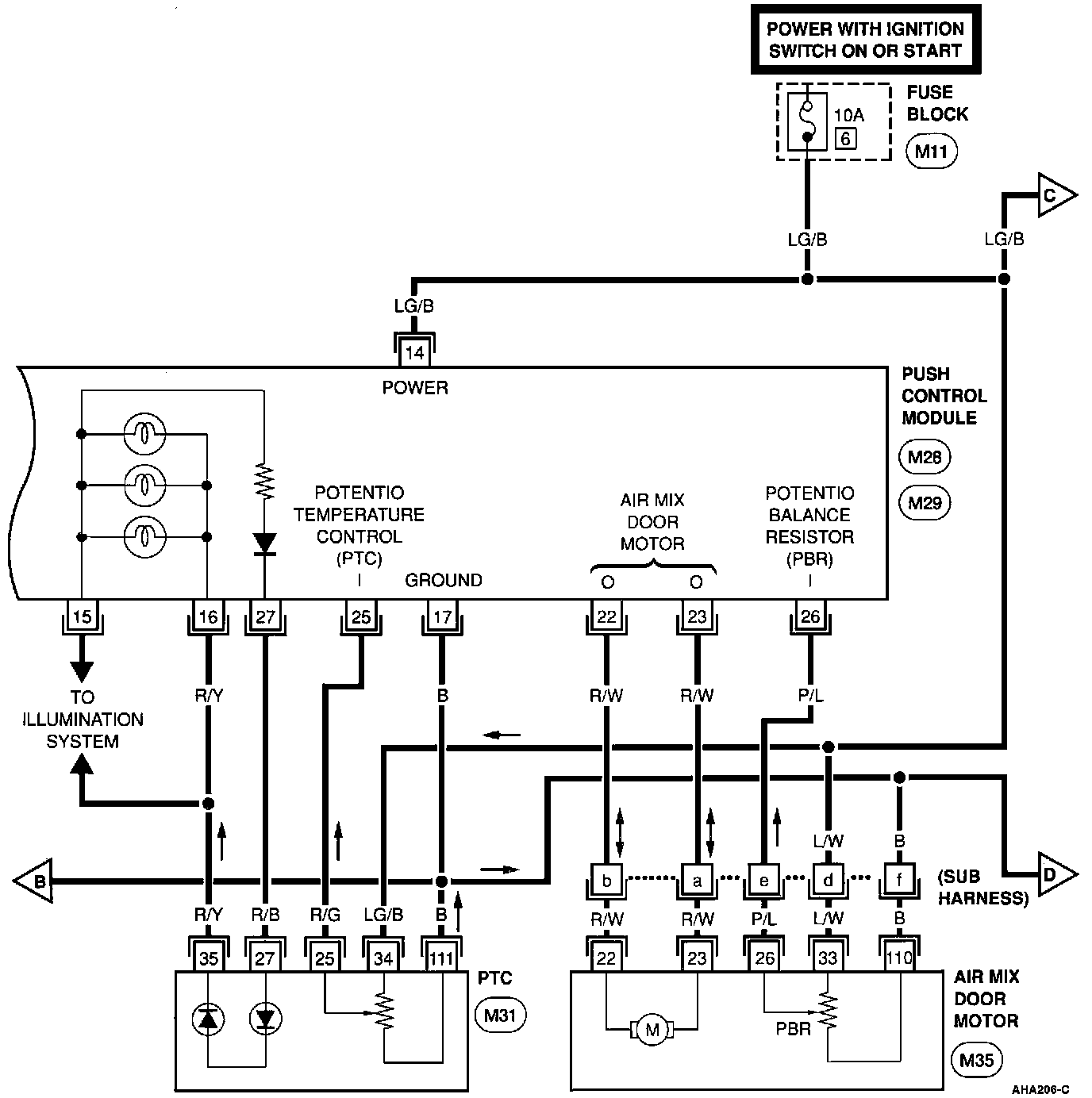

Heating And Air Conditioning Wiring Diagram (Part 3 Of 7): Manual:

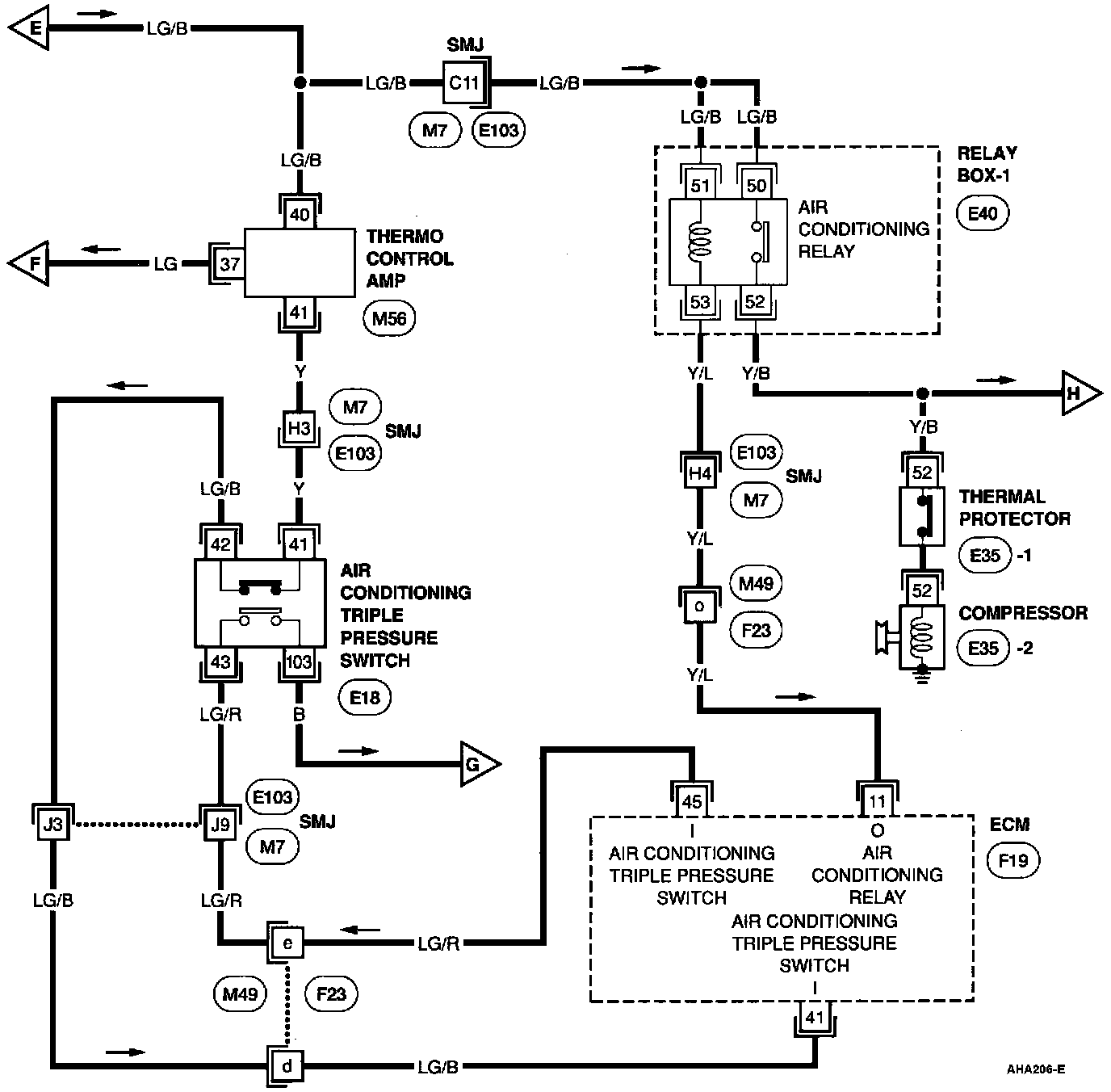

Heating And Air Conditioning Wiring Diagram (Part 4 Of 7): Manual:

Heating And Air conditioning Wiring Diagram (Part 5 Of 7): Manual:

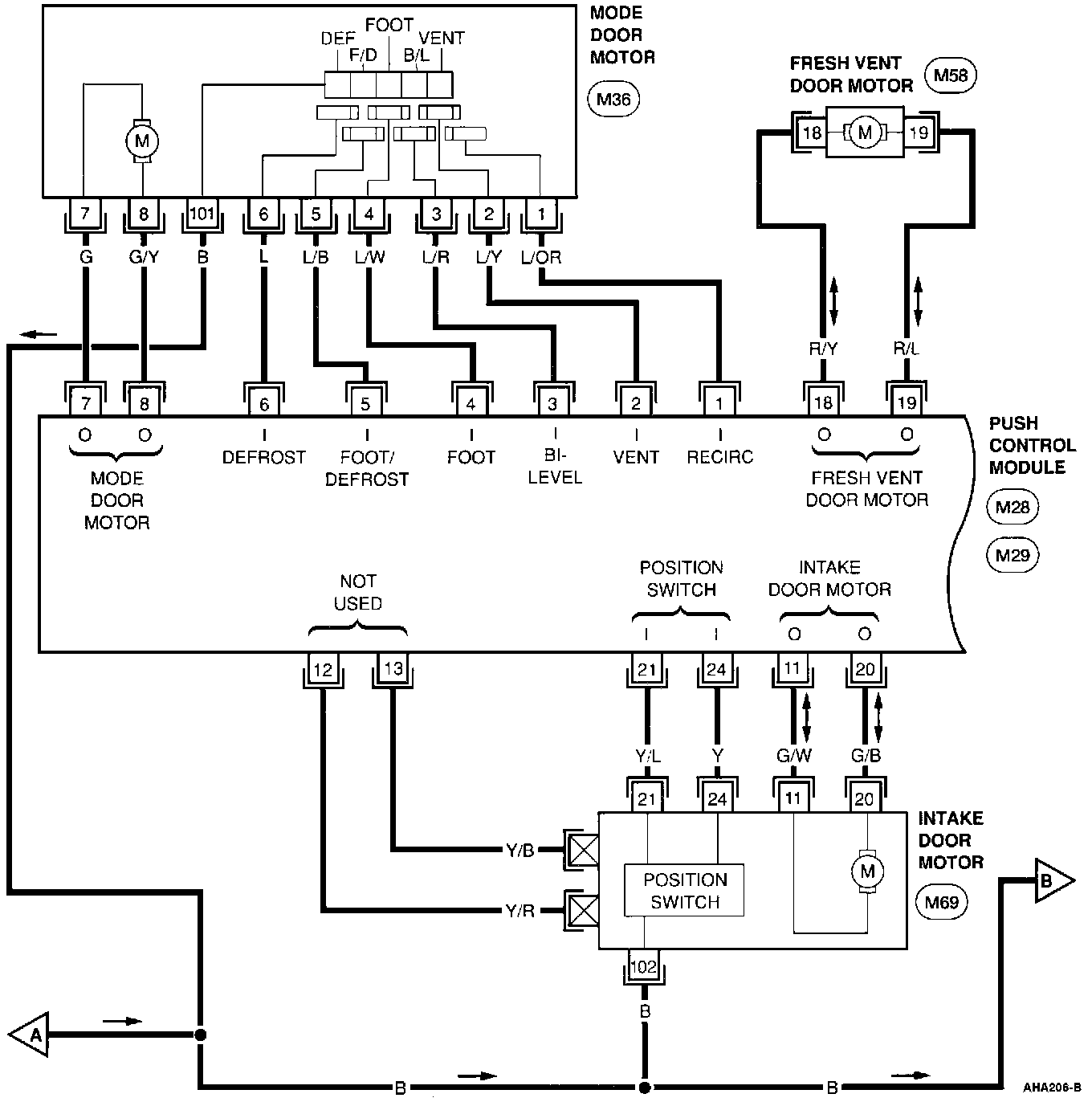

Heating And Air Conditioning Wiring Diagram (Part 6 Of 7): Manual:

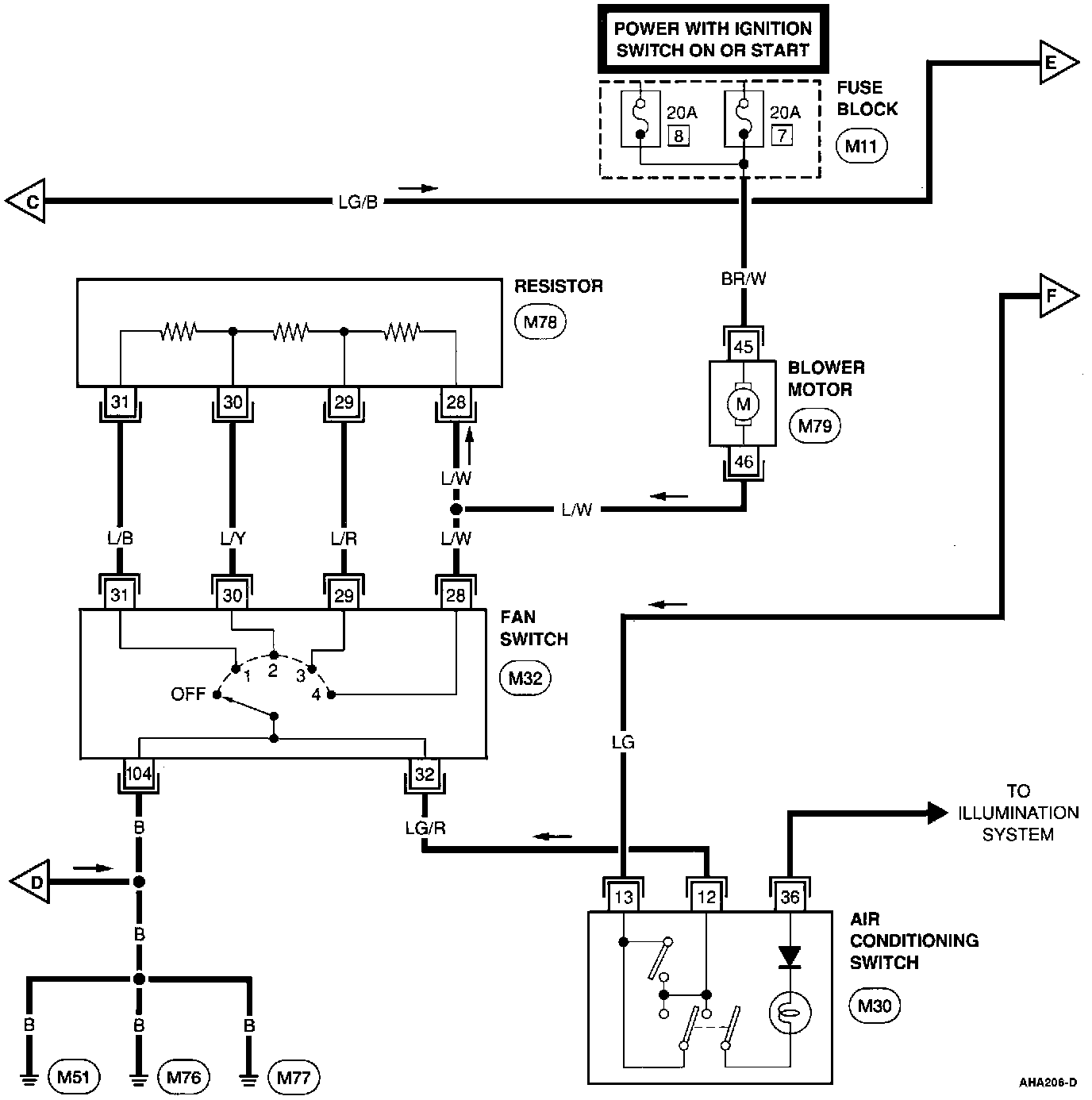

Heating And Air Conditioning Wiring Diagram (Part 7 Of 7): Manual:
