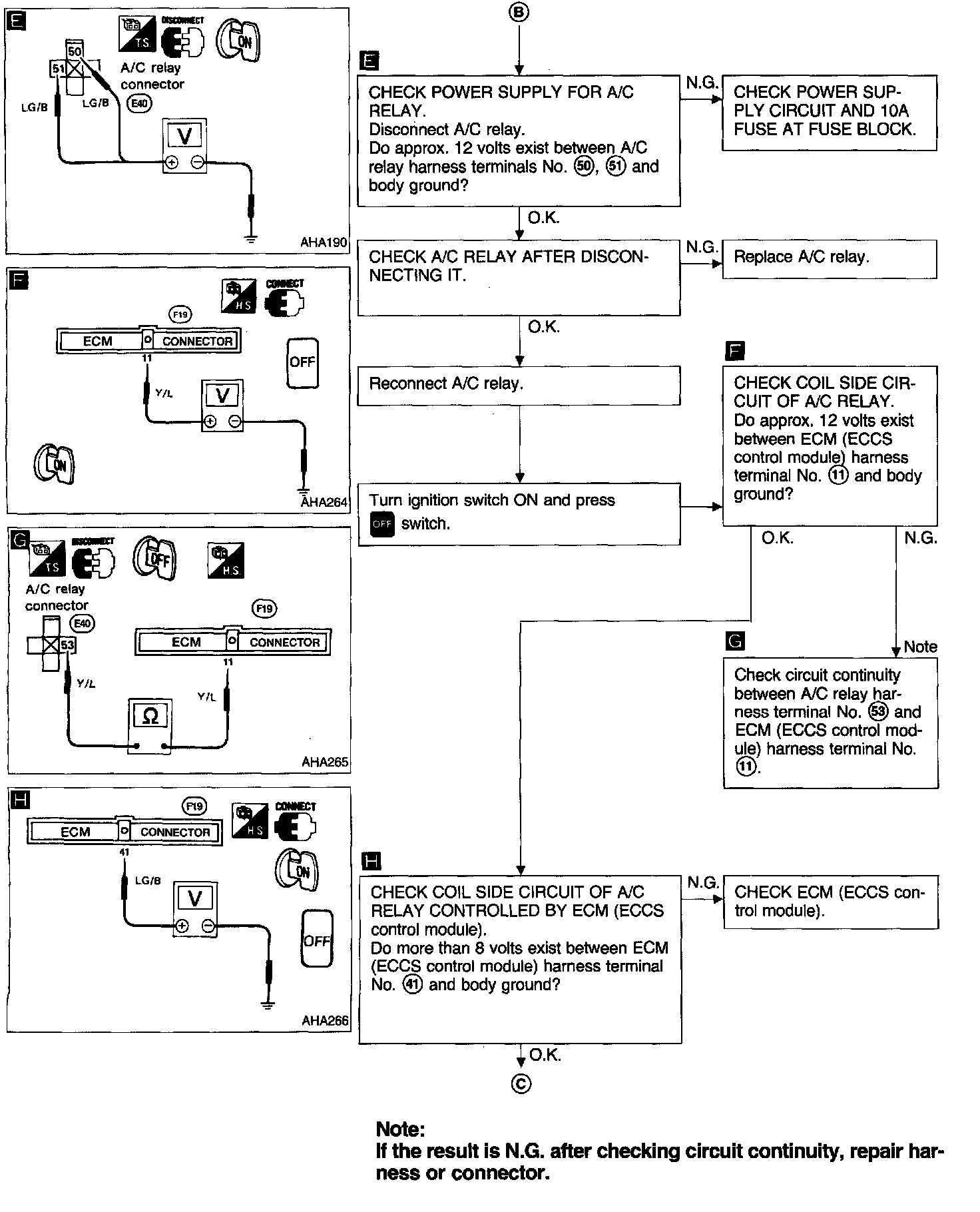

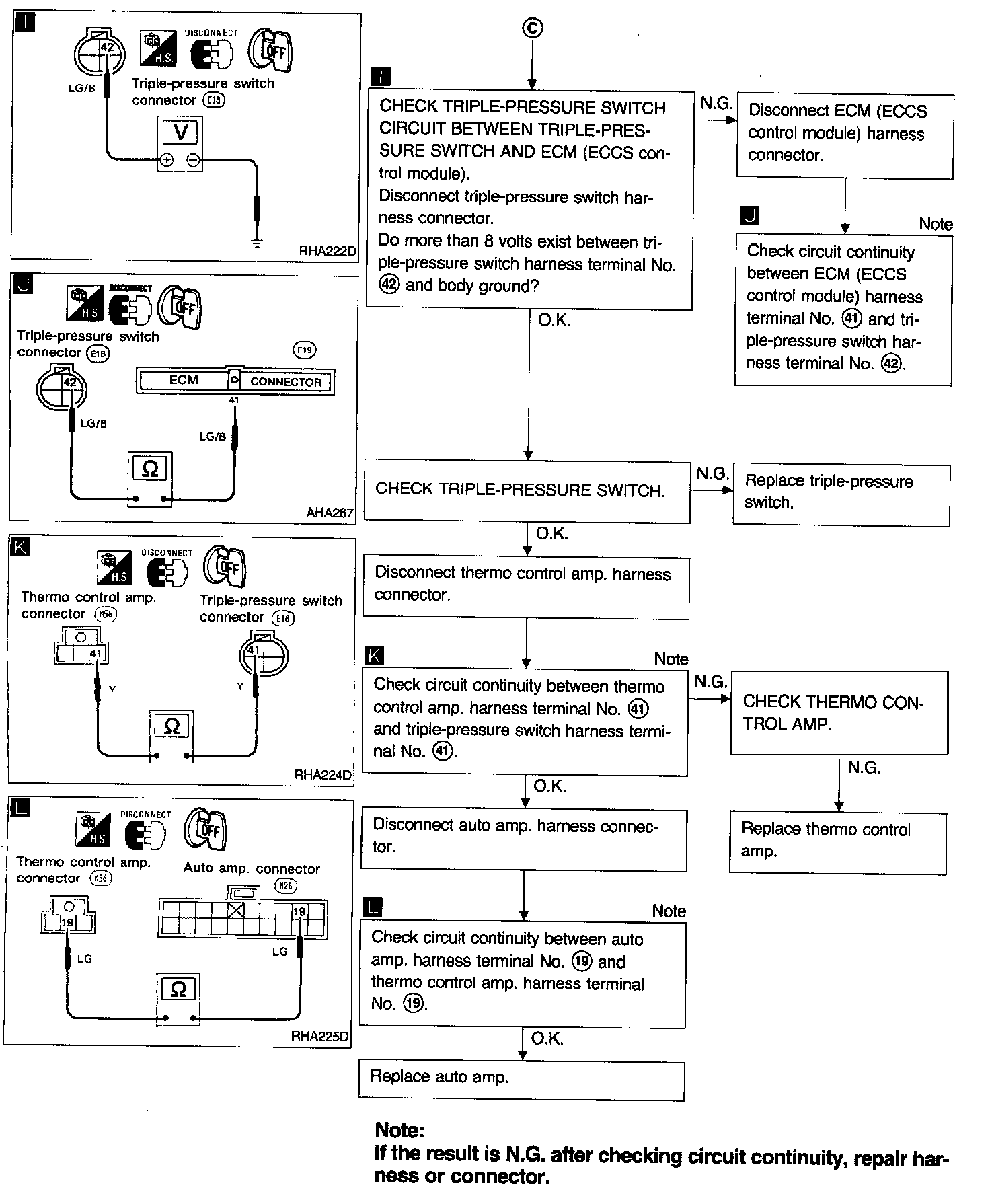

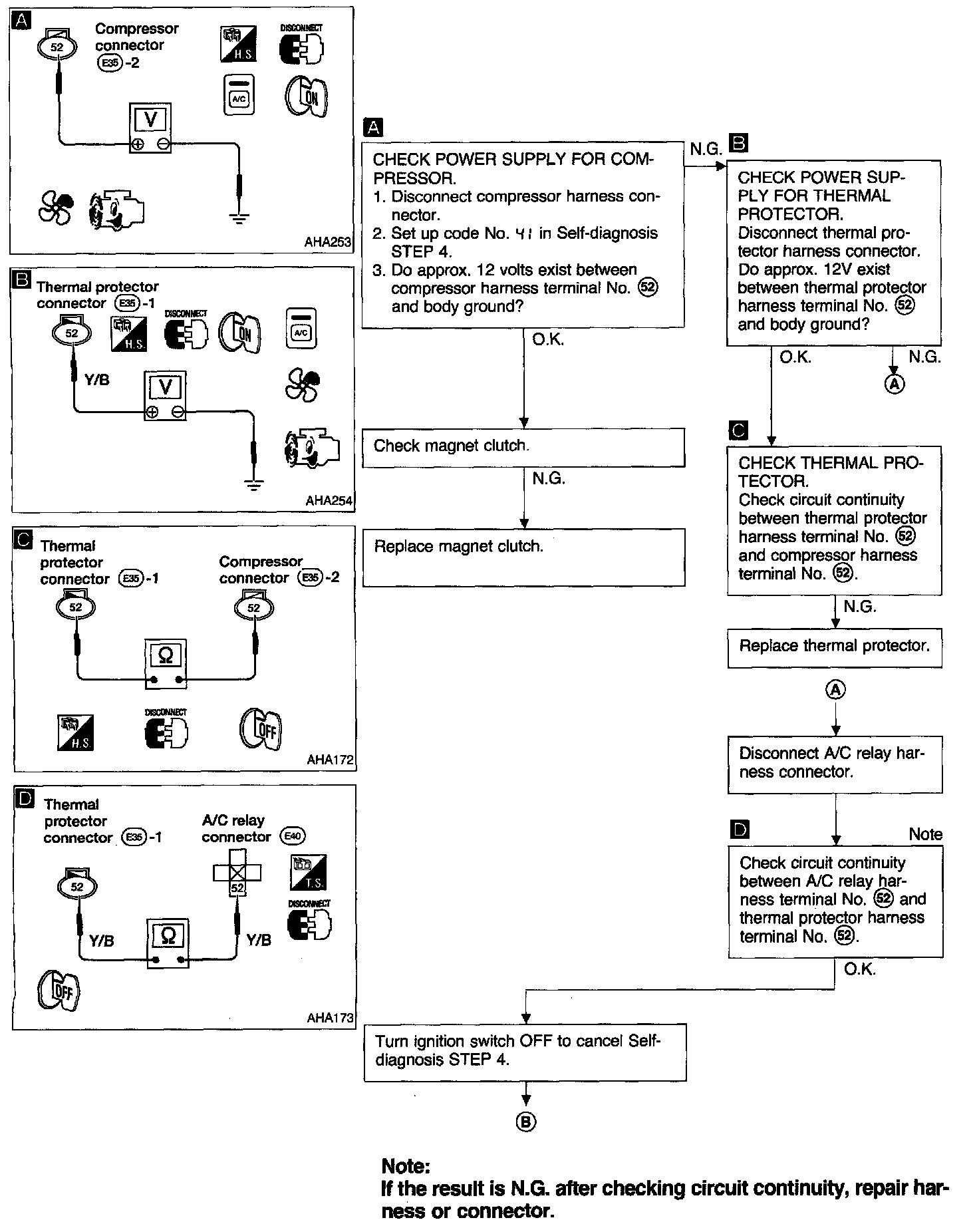

Diagnostic Procedure 10











Diagnostic Procedure 10

SYMPTOM: Magnet clutch does not engage after performing Preliminary Check 6.
- Perform Preliminary Check 6 before referring to the flow chart.
