Diagnostic Procedure 2





Diagnostic Procedure 2

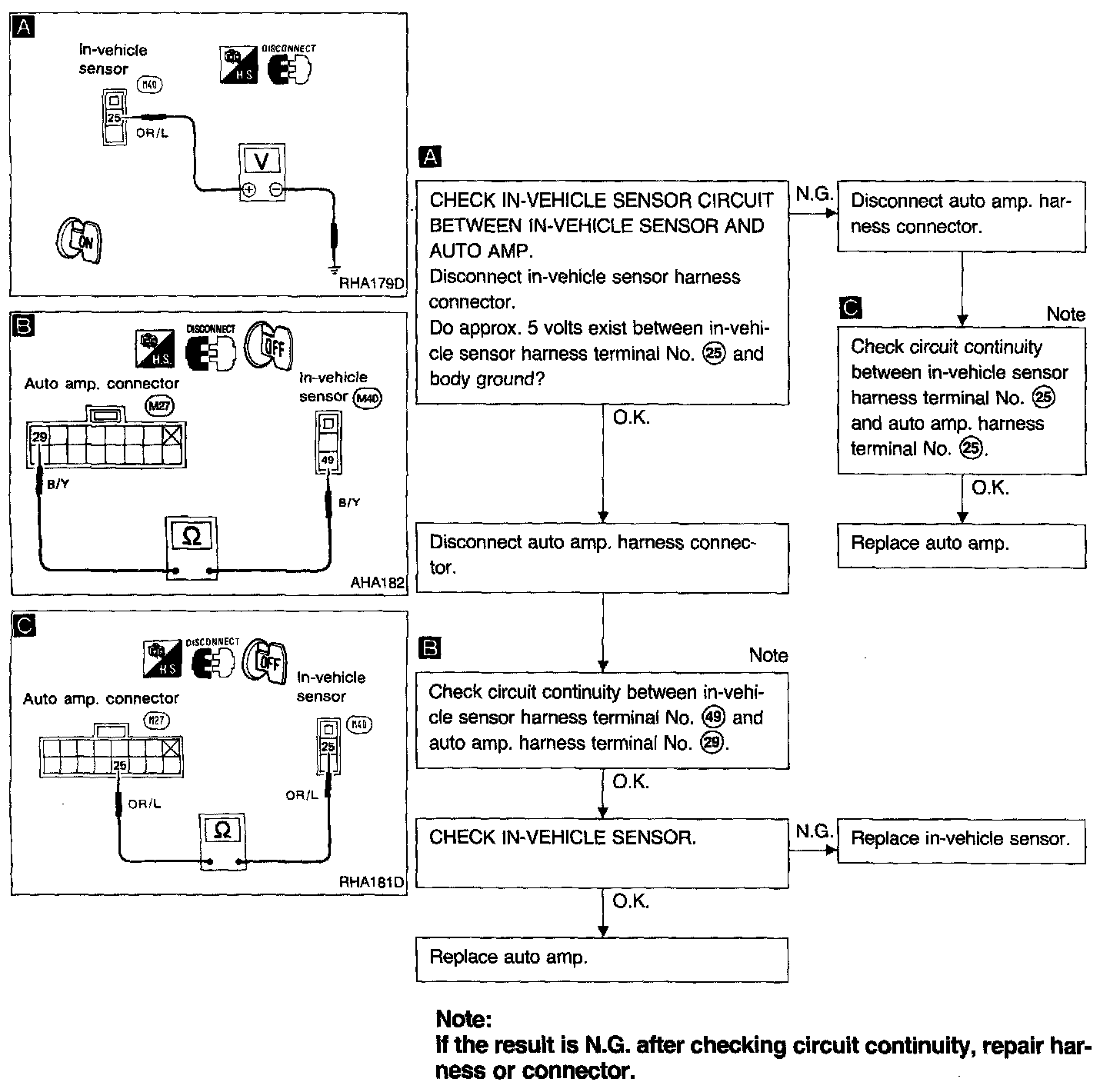

SYMPTOM: In-vehicle sensor circuit is open or shorted. (22 or ECON 22 is indicated on auto amp. as a result of conducting Self-diagnosis STEP 2.)
