Diagnostic Procedure 8





Diagnostic Procedure 8

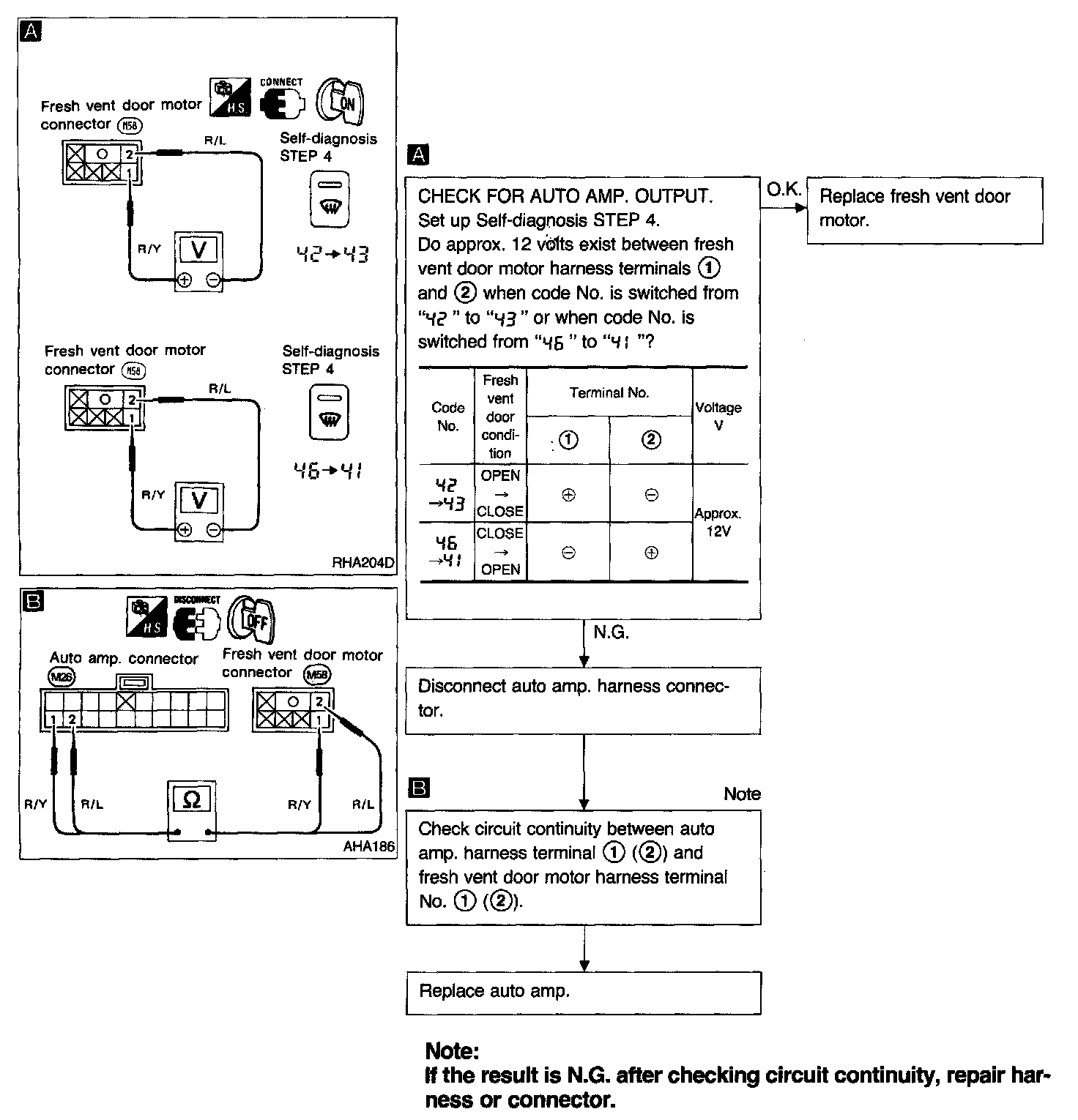

SYMPTOM: Fresh vent door motor does not operate normally.
- Perform Self-diagnosis STEP 4 before referring to the following flow chart.
