Diagnostic Procedure 9











Diagnostic Procedure 9

SYMPTOM: Blower motor operation is malfunctioning under Starting Fan Sped Control.

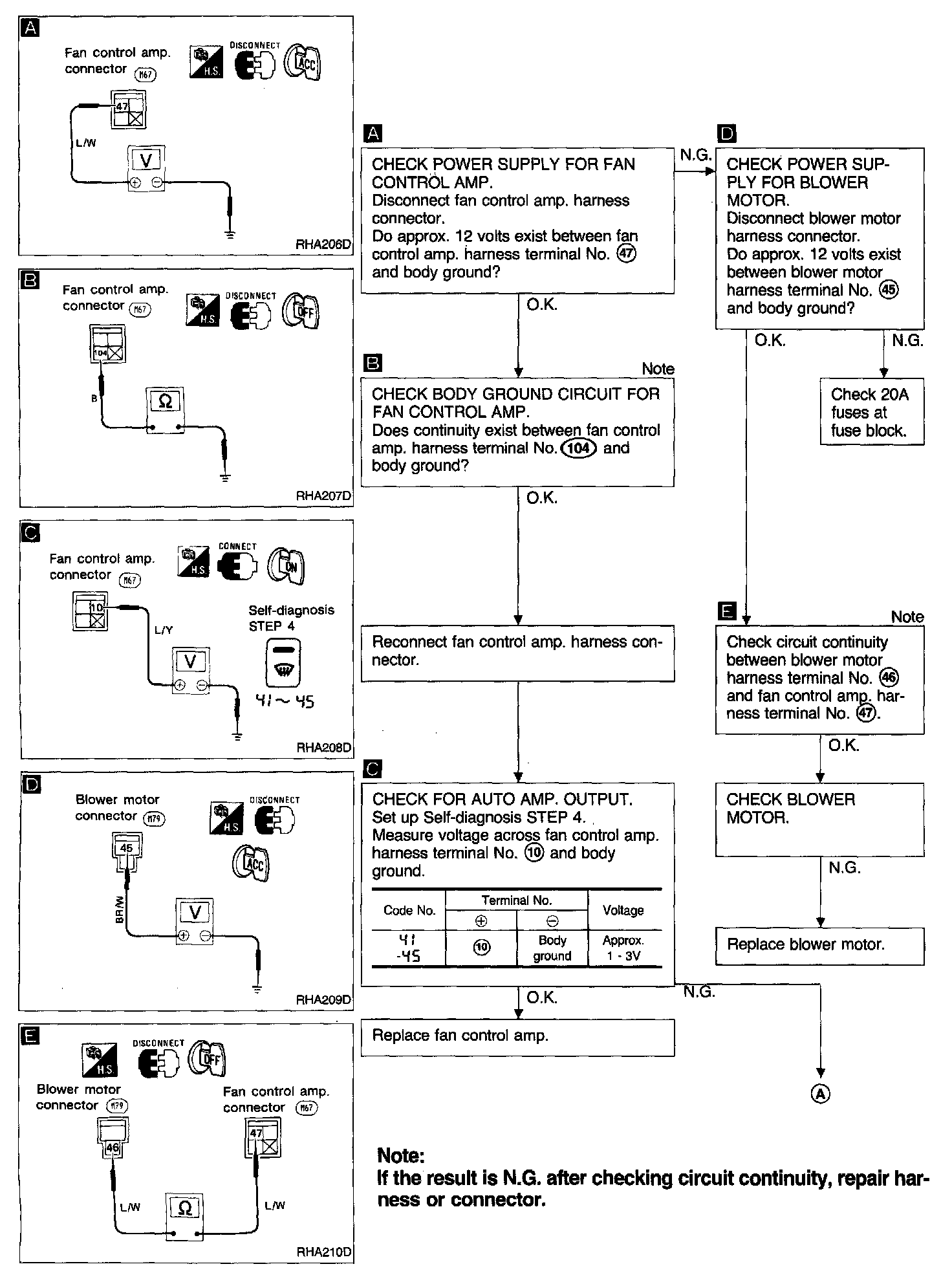

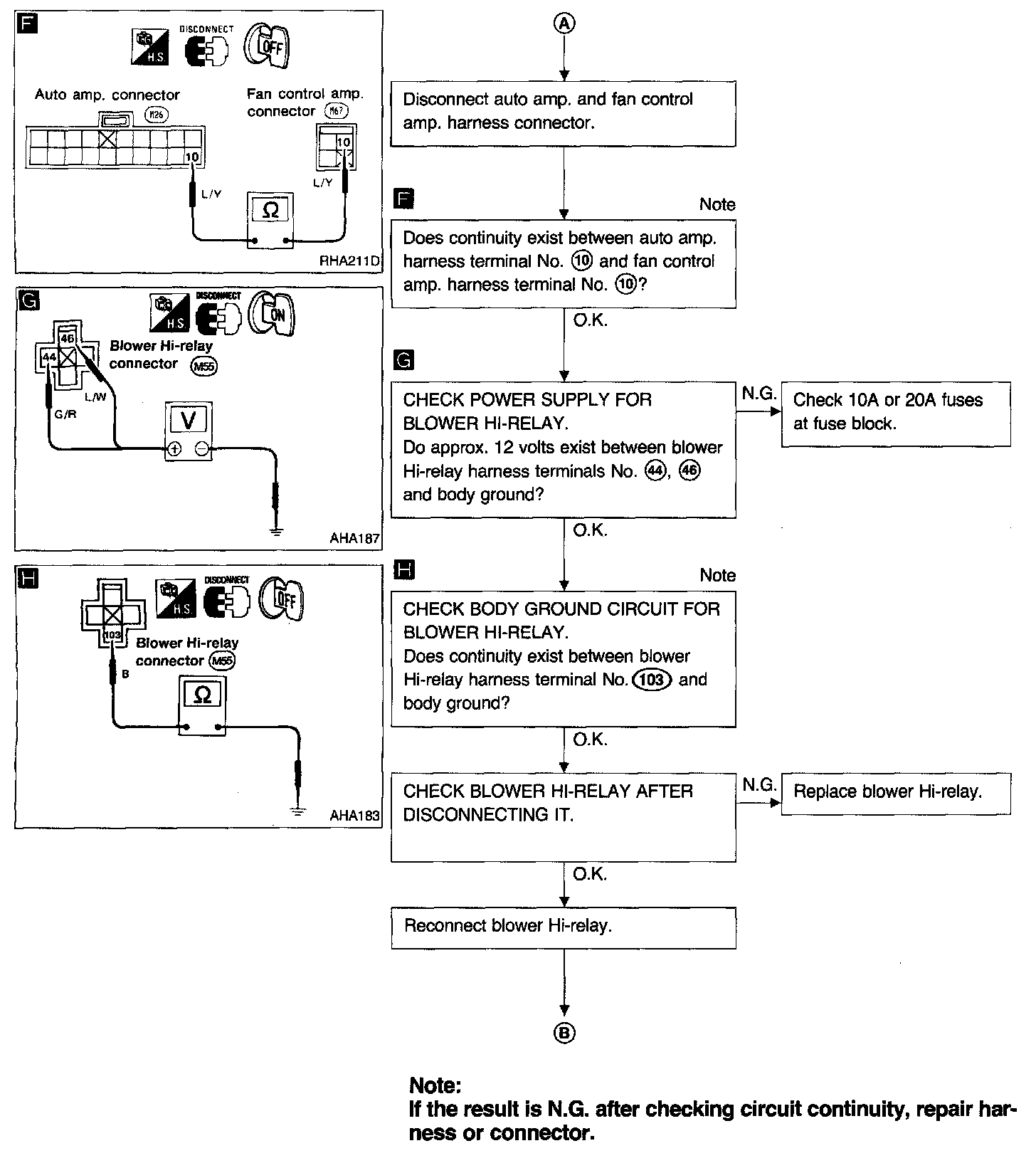

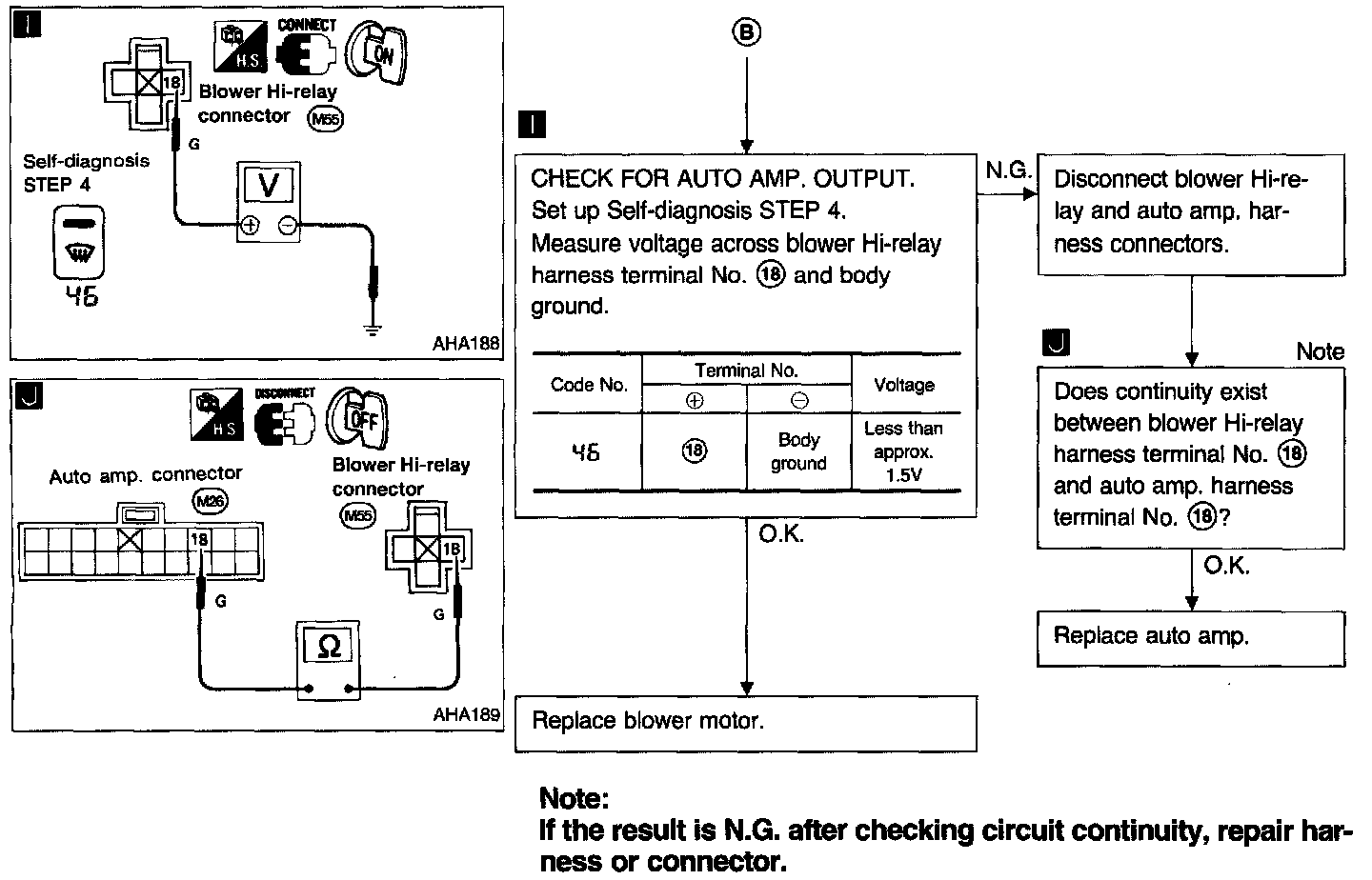

- Perform Preliminary Check 5 before referring to the following flow chart.
