Diagnostic Procedure 5





Diagnostic Procedure 5

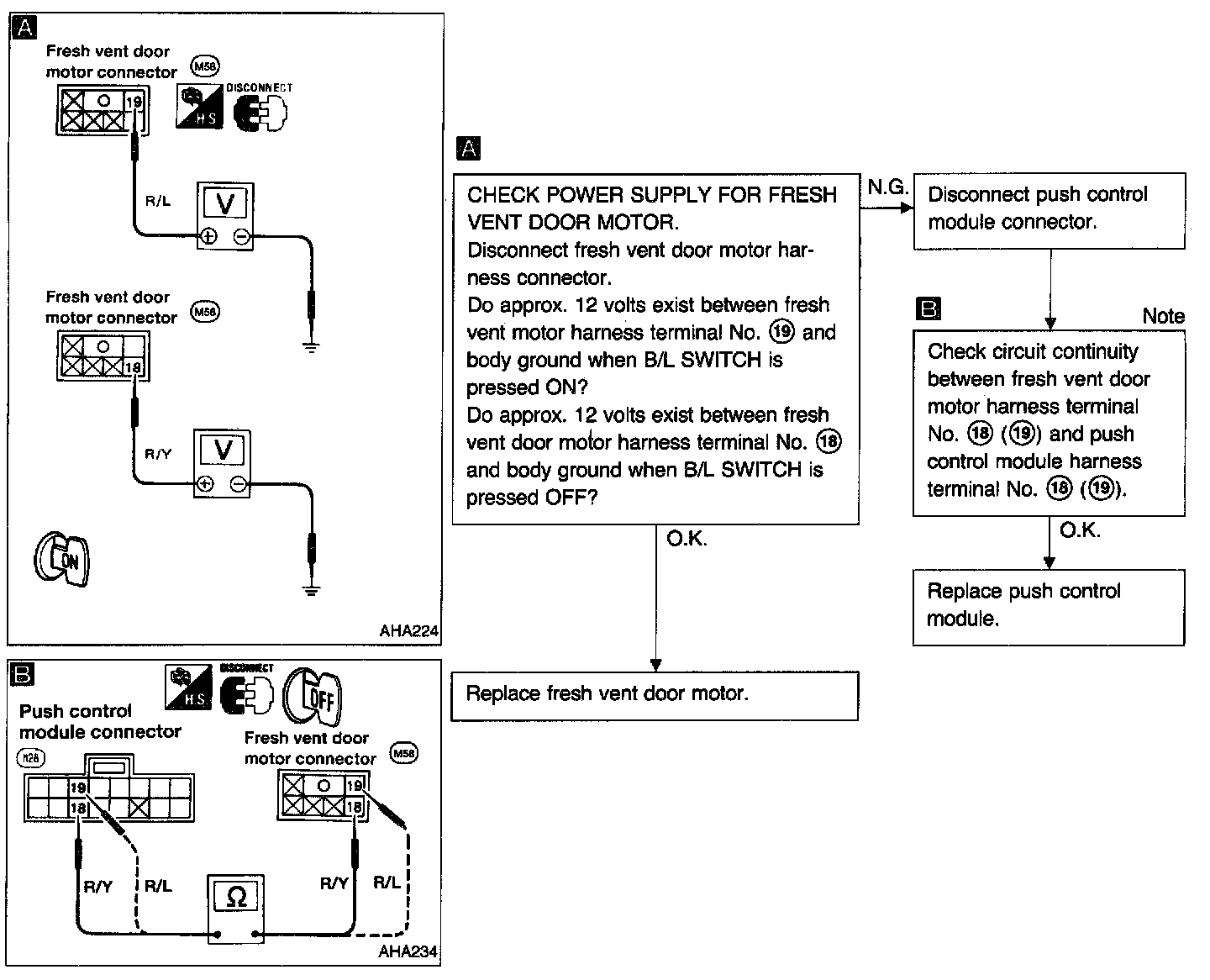

SYMPTOM: Fresh vent door does not operate.
- Perform Main Power Supply and Ground Circuit Check before referring to the following chart.
