Nissan-Datsun
>>
1994
>>
Altima L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Fog/Driving Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

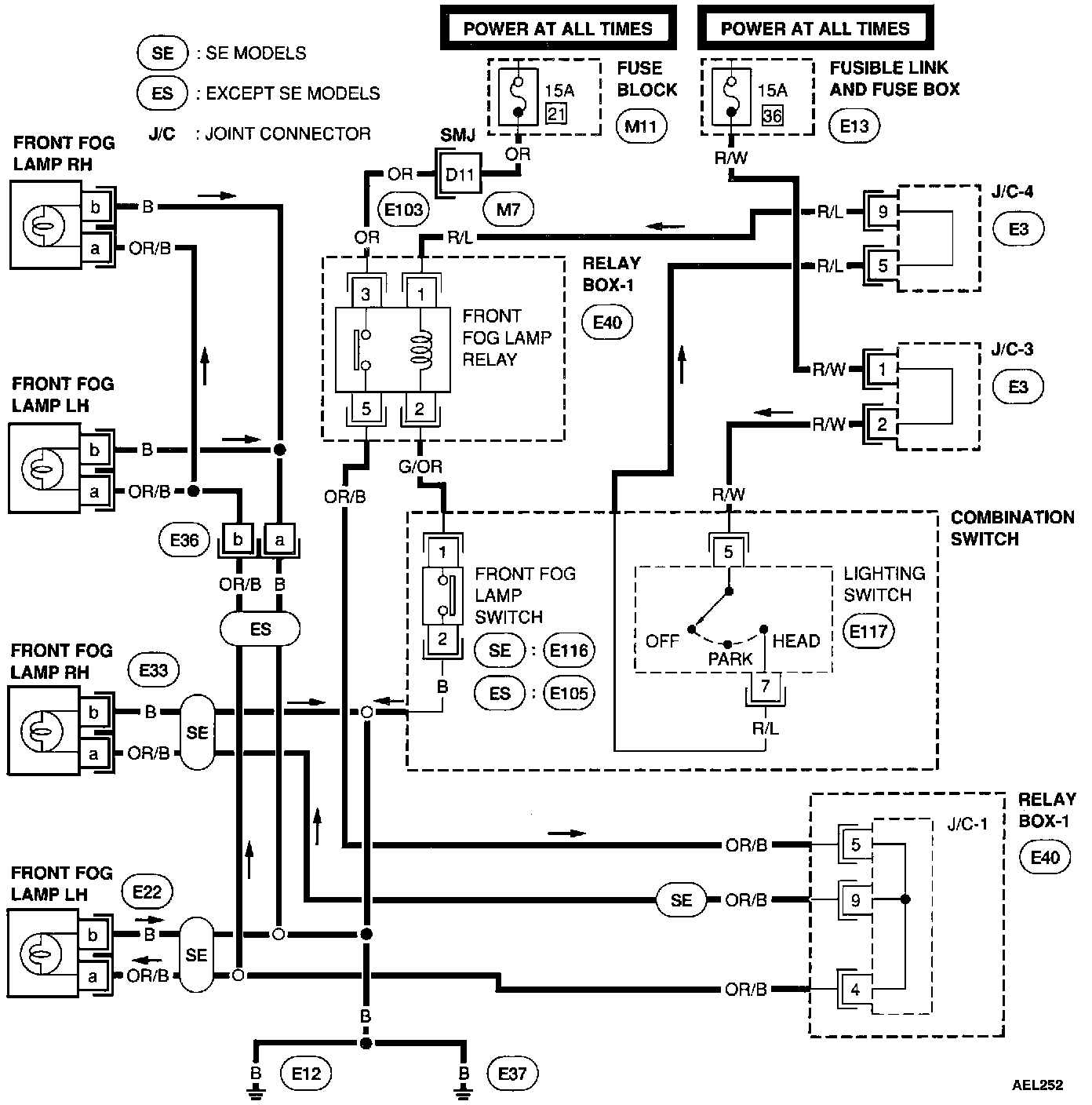

Front Fog Lamp Wiring Diagram:
