Multiple Junction Connector: Service and Repair

Installation:

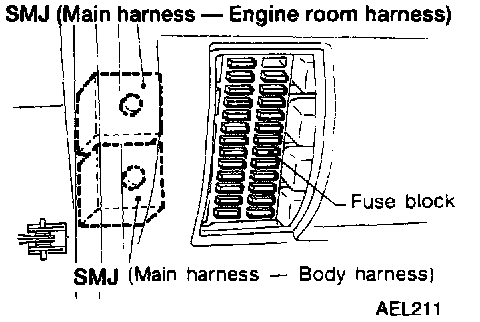

To install Super Multiple Junction (SMJ), tighten bolts until orange "full-tight" mark appears and then retighten to specified torque as required.

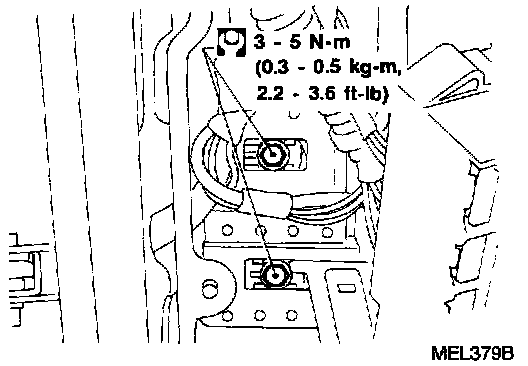

3-5 Nm (0.3-0.5 kg-m, 2.2 -3.6 ft-lb)

CAUTION: Do not overtighten bolts, otherwise, they may be damaged.
